Product Model

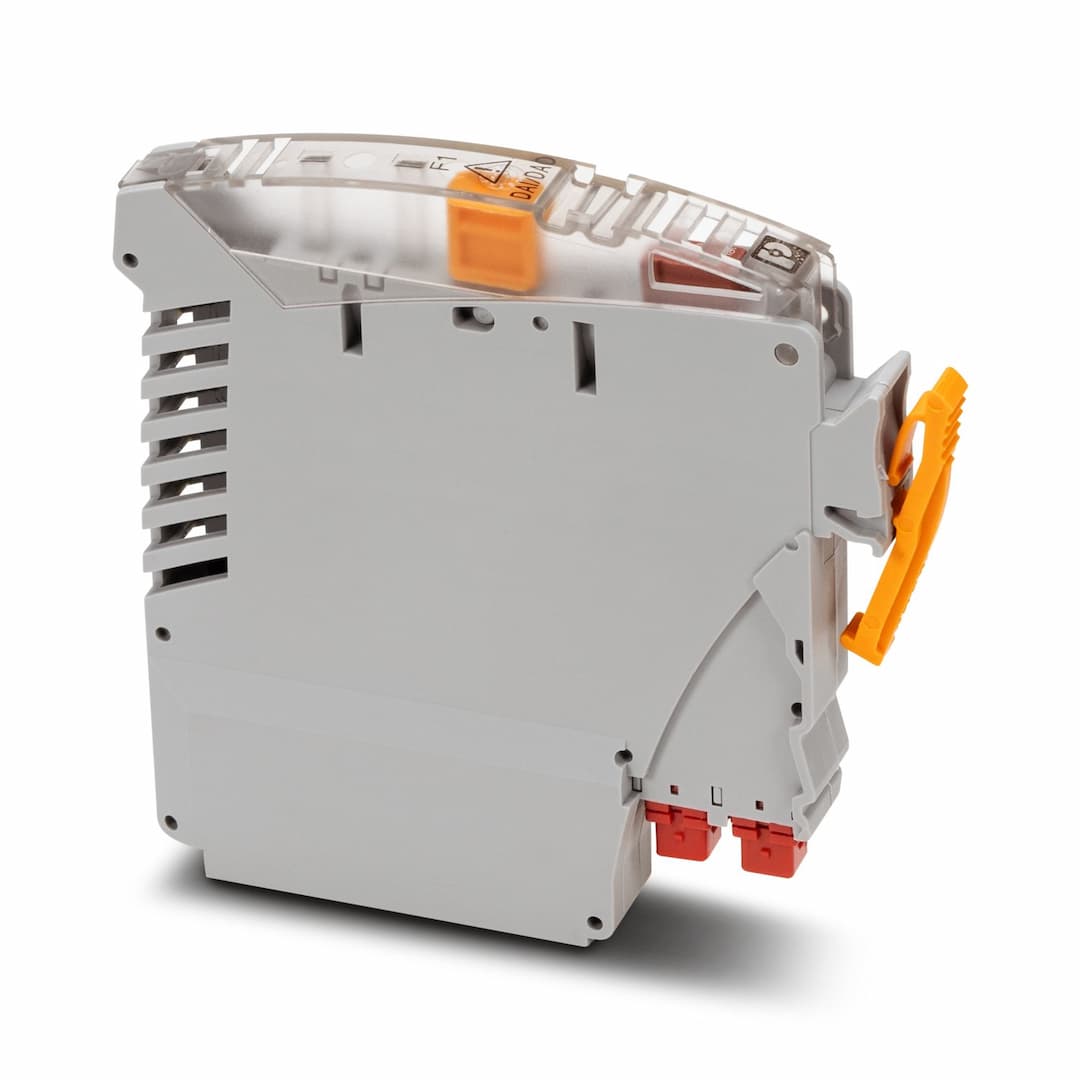

IOA PR-DAI/DAO/F/DS/0.25A/EX
Key Features
- 1Equipped with a replaceable 0.25 A fuse for secure field device supply paths.
- 2Facilitates easy testing and troubleshooting with built-in test points.
- 3Allows for safe and efficient disconnection of field devices.
- 4Designed for use in VIP I/O marshalling base elements, ensuring seamless integration.
- 5Built to withstand harsh industrial environments, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VIP I/O-Marshalling |
| Number of positions | 1 | Article revision | 02 |
| Overvoltage category | II | Pollution degree | 2 |
| Max. operating voltage U | 30 V | Max. permissible current | 1 A (Signal) |
| Max. total current of voltage supply | 2 A (1048208 fuse limited)
0.25 A (1188706 fuse limited) | Input voltage U | 30 V |
| Input current I | 1 A | Inductance Li | 0 mH |
| Capacitance Ci | 0 µF | Max. output voltage U | U |
| Max. output current I | I | Max. output power P | P |
| Width | 10.3 mm | Height | 64.2 mm |
| Depth | 72.9 mm | Color | gray (RAL 7042) |
| Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C | Altitude | ≤ 2000 mm |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) | Identification | ISA S71.04.2013 G3 Harsh Group A |
| Standards/regulations | IEC 60664
DIN EN 50178 | Mounting type | Plug-in mounting |
| Assembly note | Plugs into VIP/...BASE... | Mounting position | any |
Specifications may be subject to change without notice
