Product Model

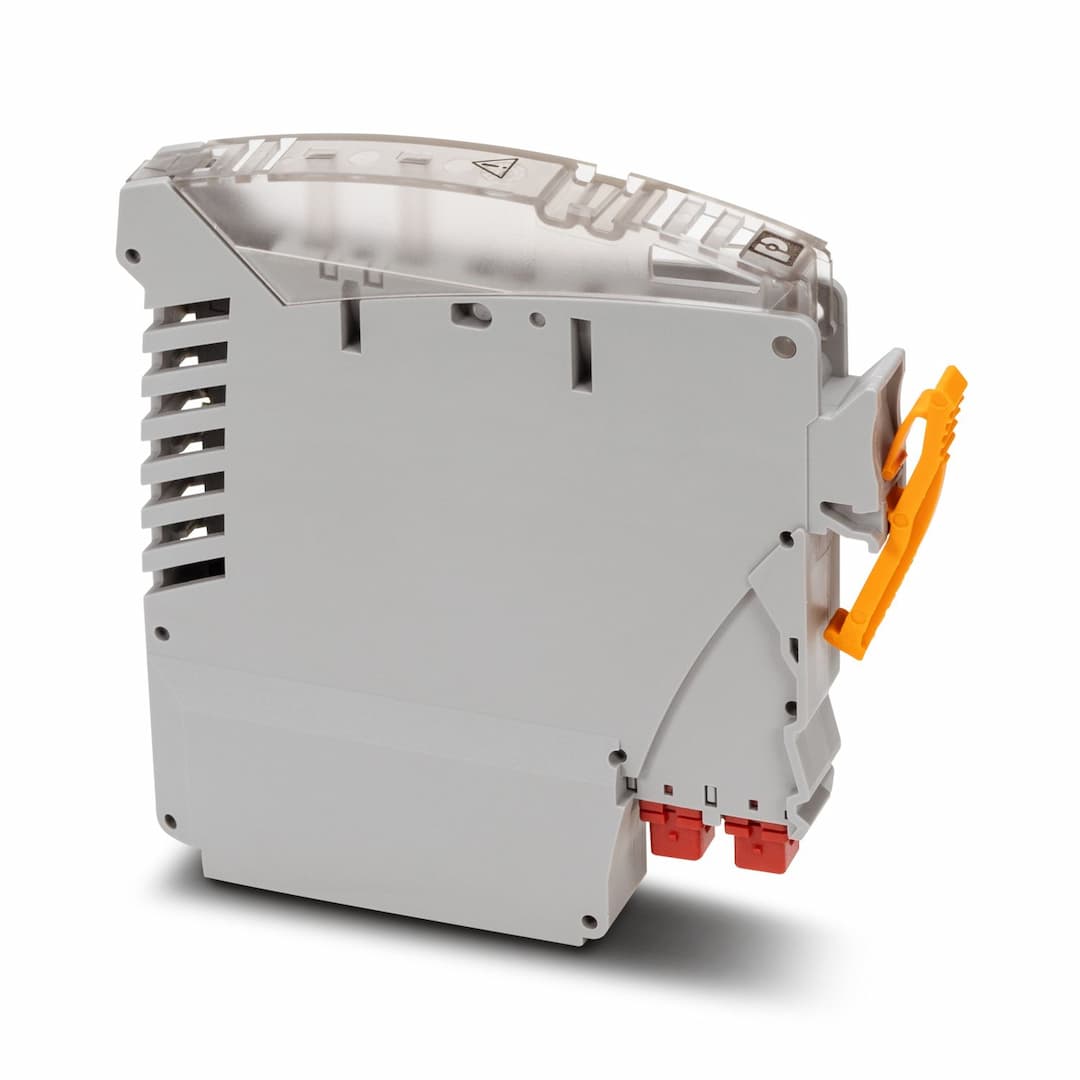

IOA LM-DI/R/RUSIO/EX
Key Features
- 1Detects wire breaks and short circuits in safety circuits.
- 2Compatible with various I/O marshalling base elements and industrial systems.
- 3Ensures reliable operation in harsh industrial environments.
- 4Simplified installation with clear labeling and modular design.
- 5Supports a range of communication protocols for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VIP I/O-Marshalling |
| Number of positions | 1 | Article revision | 02 |
| Overvoltage category | II | Pollution degree | 2 |
| Max. operating voltage U | 30 V | Max. permissible current | 6 mA (Signal) |
| Input voltage U | 30 V | Input current I | 6 mA |
| Inductance Li | 0 mH | Capacitance Ci | 0 µF |
| Max. output voltage U | U | Max. output current I | 4 mA |
| Max. output power P | 120 mW | Width | 10.3 mm |
| Height | 64.2 mm | Depth | 72.9 mm |
| Color | gray (RAL 7042) | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | 2000 mm | Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
| Identification | II 3G Ex ec IIC T4 Gc
II 3G Ex ic IIC T4 Gc | Certificate | CSANe 20ATEX3152X |
| Identification | Ex ec IIC T4 Gc
Ex ic IIC T4 Gc | Certificate | IECEx SIR 21.0005X |
| Identification | II 3G Ex ec IIC T4 Gc
II 3G Ex ic IIC T4 Gc | Certificate | PxCIF23UKEX1048208X |
| Identification | Class I, Div. 2, Groups A, B, C, D
Class I, Zone 2, AEx ic IIC T4 Gc
ANIFW apparatus for connection to:
Ex ic IIC T4 Gc
Ex ec IIC T4 Gc | Certificate | CSA 21CA80047687X |
| Standards/regulations | IEC 60664
DIN EN 50178 | Mounting type | Plug-in mounting |
| Assembly note | Plugs into VIP/...BASE... | Mounting position | any |
Specifications may be subject to change without notice
