Product Model

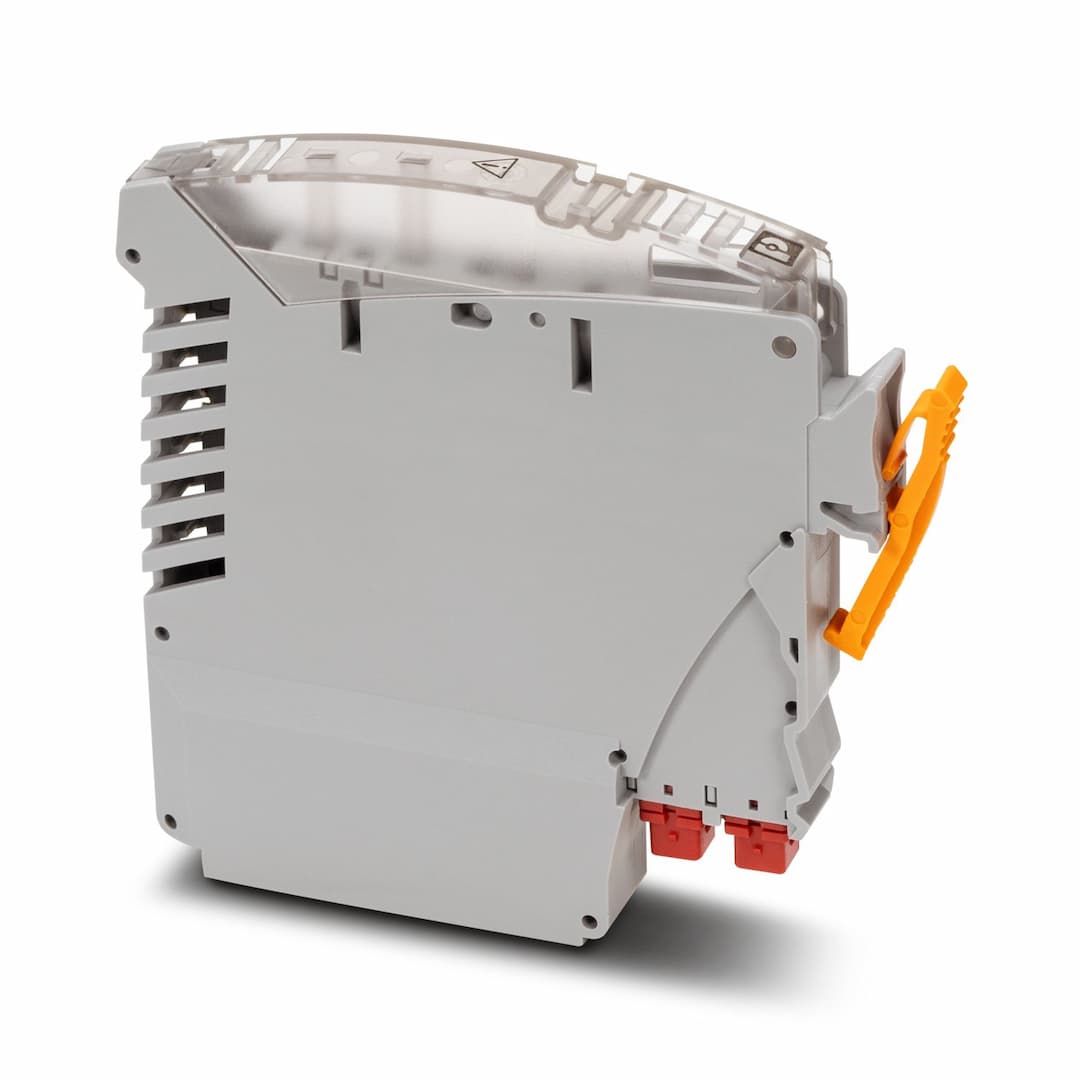

IOA DAC-4DI/AI/EX
Key Features
- 1Efficient Digital-to-Analog Conversion: Converts four digital inputs into a single analog 4-20 mA signal for seamless data transfer.
- 2Robust Connectivity Options: Supports a wide range of signal types and communication protocols, ensuring compatibility with various industrial systems.
- 3Flexible and Scalable Design: Suitable for both small-scale projects and extensive industrial operations with modular designs that simplify installation and maintenance.
- 4High-Quality and Durable: Built to withstand harsh industrial environments with advanced error-detection features for secure operation.
- 5Easy Installation and Maintenance: Features clear labeling and modular designs that streamline setup and upkeep, enhancing overall efficiency in automation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VIP I/O-Marshalling |
| Number of positions | 1 | Article revision | 02 |
| Overvoltage category | II | Pollution degree | 2 |
| Max. permissible current | 20 mA | Nominal voltage U | 19.2 V DC ... 30 V DC |
| Input voltage U | 30 V | Input current I | 19 mA |
| Input power P | 570 mW | Max. output voltage U | 2.5125 V |
| Max. output current I | 19.55 mA | Max. output power P | 49 mW |
| Safety-related maximum voltage U | 30 V | Max. external inductivity L | / 999 µF
209 mH |
| Width | 10.3 mm | Height | 64.2 mm |
| Depth | 72.9 mm | Color | gray (RAL 7042) |
| Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C | Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) | Identification | II 3G Ex ec IIC T4 Gc
II 3G Ex ic IIC T4 Gc |
| Certificate | CSANe 20ATEX3152X | Identification | Ex ec IIC T4 Gc
Ex ic IIC T4 Gc |
| Certificate | IECEx SIR 21.0005X | Identification | II 3G Ex ec IIC T4 Gc
II 3G Ex ic IIC T4 Gc |
| Certificate | PxCIF23UKEX1145061X | Identification | Class I, Div. 2, Groups A, B, C, D
Class I, Zone 2, AEx ic IIC T4 Gc
ANIFW apparatus for connection to:
Ex ic IIC T4 Gc
Ex ec IIC T4 Gc |
| Certificate | CSA 21CA80047687X | Standards/regulations | IEC 60664
DIN EN 50178 |
| Mounting type | Plug-in mounting | Assembly note | Plugs into VIP/...BASE... |
| Mounting position | any |
Specifications may be subject to change without notice
