Product Model

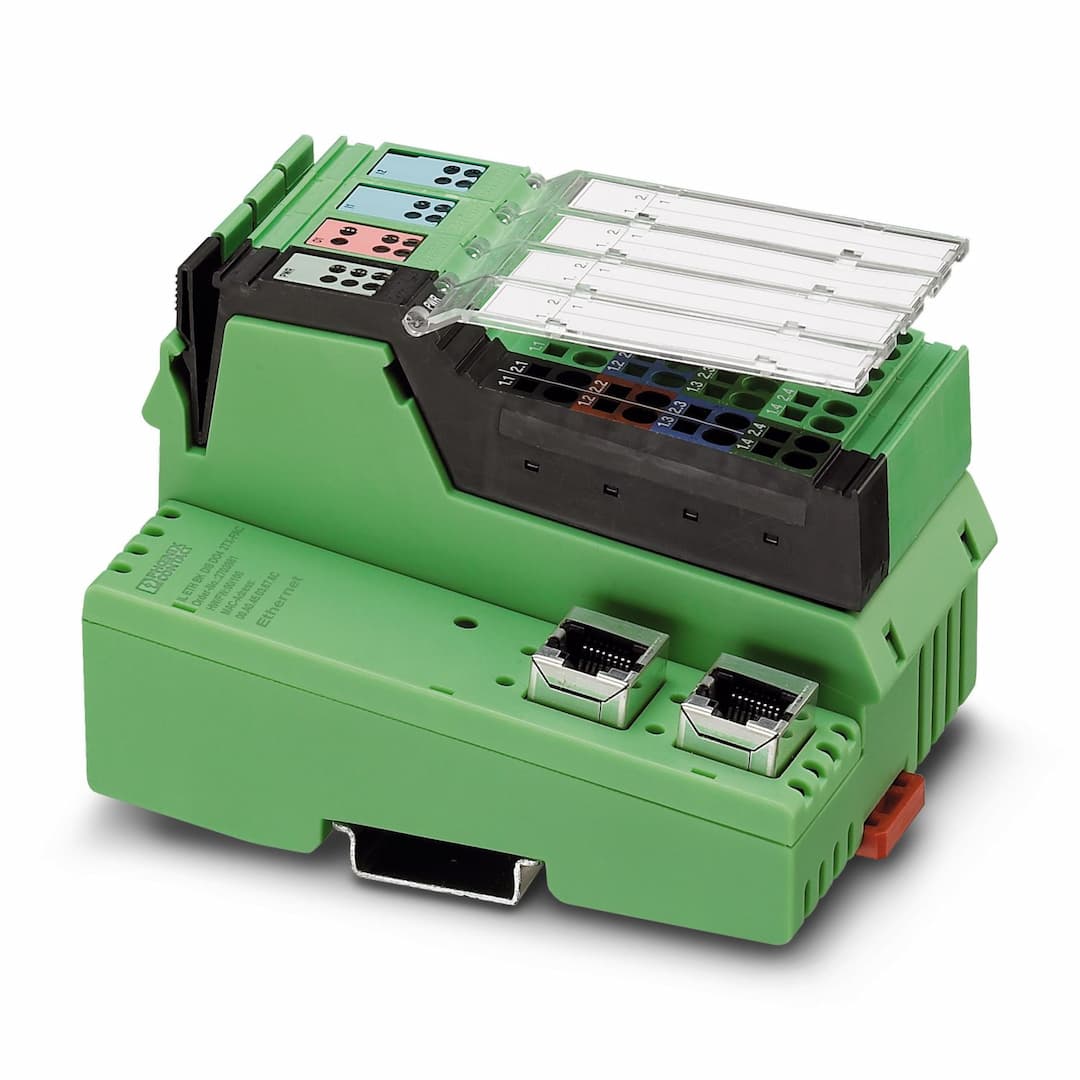

IL PN BK DI8 DO4 2TX-PAC
Key Features
- 1Supports PROFINET protocols: Ensures seamless integration with industrial networks.
- 28 digital inputs and 4 digital outputs: Provides comprehensive I/O capabilities for various applications.
- 3100 Mbps Ethernet transmission: Fast and reliable data transfer for industrial environments.
- 4Automatic speed detection: Simplifies setup with automatic detection of transmission speeds.
- 5Approved for PROFIsafe applications: Meets safety standards for critical industrial operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 80 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Specfications with connectors |
| Note on application | Only for industrial use | CCCex note | Use in potentially explosive areas is not permitted in China. |
| Number of interfaces | 2 | Connection method | RJ45 jack |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 100 Mbps (acc. to PROFINET standard) |
| Transmission physics | Ethernet in RJ45 twisted pair | Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps (automatic detection, no combined system) | Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 61 (The on-board I/Os are two devices) | Number of devices with parameter channel | max. 16 |
| Number of supported branch terminals with remote bus branch | 0 | Device function | PROFINET device |
| Update rate | min. 1 ms (depending on the size of the bus system) | ID code (hex) | none |
| Input address area | 8 bit | Output address area | 4 bit |
| Register length | 16 bit | Input name | Digital inputs |
| Description of the input | EN 61131-2 type 1 | Number of inputs | 8 |
| Connection method | Inline connector | Connection technology | 3-conductor |
| Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
| Nominal input current at U | typ. 3 mA | Typical input current per channel | typ. 3 mA |
| Typical response time | approx. 500 µs | Filter time | 3 ms |
| Delay at signal change from 0 to 1 | 5 ms | Delay at signal change from 1 to 0 | 5 ms |
| Output name | Digital outputs | Connection method | Inline connector |
| Connection technology | 3-conductor | Number of outputs | 4 |
| Protective circuit | Short-circuit and overload protection; Freewheeling circuit in the output driver | Output voltage | 24 V DC -1 V (At nominal current) |
| Maximum output current per module | max. 2 A | Nominal output voltage | 24 V DC |
| Output current when switched off | max. 10 µA (When not loaded, a voltage can be measured even at an output that is not set.) | Nominal load, inductive | 12 VA (1.2 H, 48 Ω) |
| Nominal load, lamp | 12 W | Nominal load, ohmic | 12 W |
| Reverse voltage resistance to short pulses | Reverse voltage proof | Behavior with overload | Auto restart |
| Behavior with inductive overload | Output can be destroyed | Behavior at voltage switch-off | The output follows the power supply without delay |
| Signal delay | typ. 1.2 ms | Overcurrent shut-down | min. 0.7 A |
| Product type | I/O component | Product family | Inline |
| Type | modular | No. of channels | 12 |
| Diagnostics messages | Short-circuit or overload of the digital outputs yes
Sensor supply failure yes
Failure of the actuator supply yes | Article revision | 26 |
| Overvoltage category | II (IEC 60664-1, EN 60664-1) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
| Maximum power dissipation for nominal condition | 4.6 W | Protective circuit | Surge protection (segment supply, main supply, bus coupler supply); Suppressor diode, 35 V DC
Reverse polarity protection (segment supply, main supply, bus coupler supply); Suppressor diode, 35 V DC |
| Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 0.91 A (with max. number of connected I/O terminal blocks)
typ. 138 mA | Supply voltage | 7.5 V DC |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 8 A DC
min. 3 mA (without connected peripherals) | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 8 A DC
min. 3 mA (without connected peripherals) |
| Test voltage: PROFINET interface 1 / PROFINET interface 2 | 500 V AC, 50 Hz, 1 min | Test voltage: PROFINET interface 1 / communications power (U | 500 V AC, 50 Hz, 1 min |
| Test voltage: PROFINET interface 1 / I/O (U | 500 V AC, 50 Hz, 1 min | Test voltage: PROFINET interface 1 / functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: PROFINET interface 2 / communications power (U | 500 V AC, 50 Hz, 1 min | Test voltage: PROFINET interface 2 / I/O (U | 500 V AC, 50 Hz, 1 min |
| Test voltage: PROFINET interface 2 / functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: Communications power (U | 500 V AC, 50 Hz, 1 min |
| Test voltage: Communications power (U | 500 V AC, 50 Hz, 1 min | Test voltage: I/O (U | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C (observe derating) |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
