Product Model

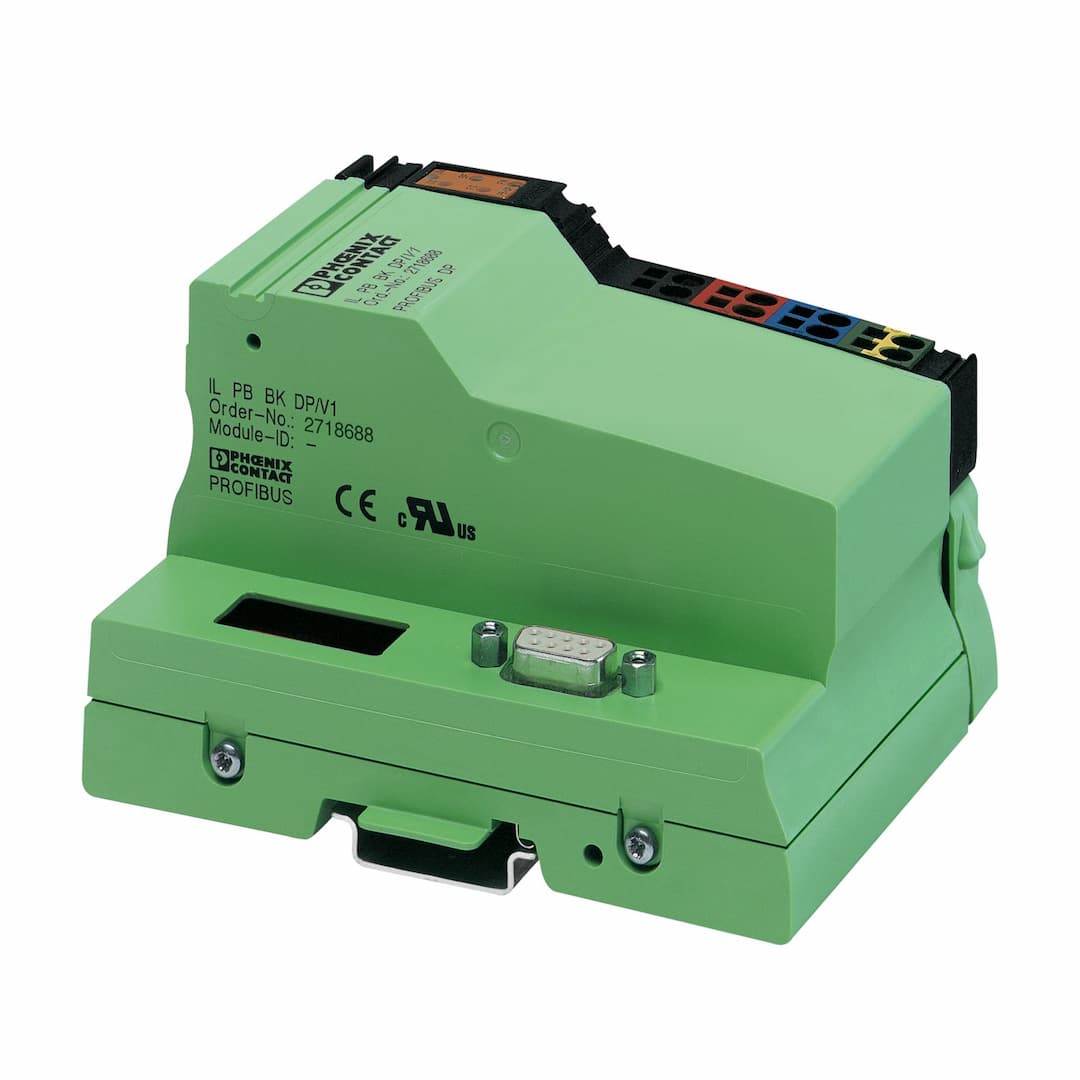

IL PB BK DP/V1-PAC
Key Features
- 1Supports PROFIBUS DP with speeds up to 12 Mbps.
- 2Comes with necessary accessories, including a connection plug and labeling field.
- 3Designed for Inline installation systems, enhancing automation applications.
- 4Features a D-SUB-9 female connector for reliable data transmission.
- 5Meets high performance and durability standards, ensuring reliable operation in various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 85 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on application | Only for industrial use |
| CCCex note | Use in potentially explosive areas is not permitted in China. | Number of interfaces | 1 |
| Connection method | D-SUB-9 female connector | Number of positions | 9 |
| Transmission speed | 9.6 kbps ... 12 Mbps | Number of interfaces | 1 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| Max. number of local bus devices | 63 | Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 63 | Number of devices with parameter channel | max. 16 |
| Number of supported branch terminals with remote bus branch | 0 | ID code (hex) | none |
| Product type | I/O component | Product family | Inline |
| Type | modular | Scope of delivery | including Inline connector and labeling field |
| Article revision | 16 | Maximum power dissipation for nominal condition | 3 W |
| Protective circuit | Protection against polarity reversal, surge protection (24-V supply U | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks)
typ. 100 mA (without connected Inline I/O terminals) |
| Supply voltage | 7.5 V DC | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Test voltage: PROFIBUS/local bus and supply voltage U | 500 V |
| Test voltage: PROFIBUS / FE | 500 V | Test voltage: PROFIBUS / FE D-SUB | 500 V |
| Test voltage: Local bus and supply voltage U | 500 V | Test voltage: Local bus and supply voltage U | 500 V |
| Test voltage: FE / FE D-SUB | 500 V | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | 0 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 85 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
