Product Model

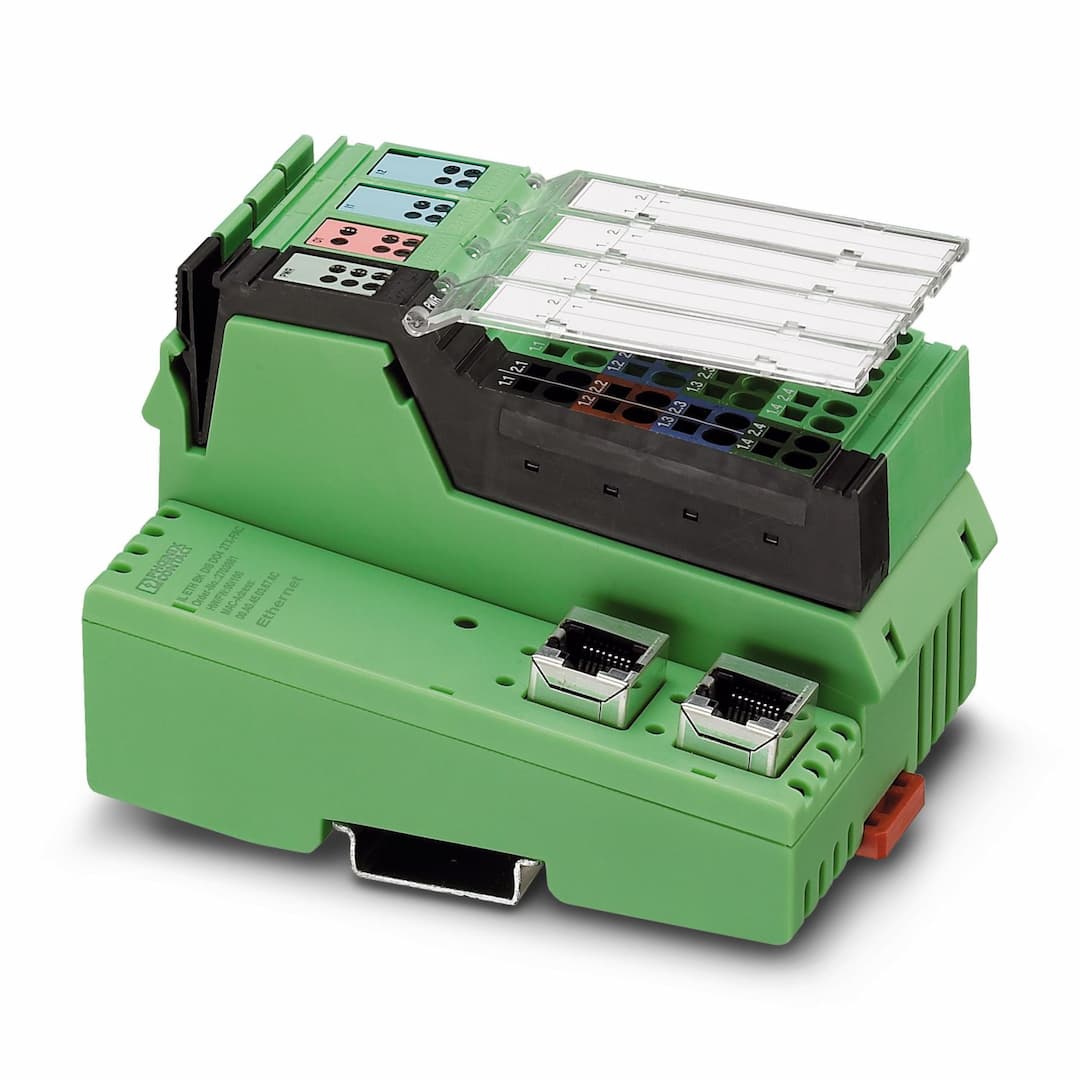

IL ETH BK DI8 DO4 2TX-XC-PAC
Key Features
- 1Dual Ethernet Ports with Integrated Switch: Supports 10/100 Mbps transmission speeds and auto negotiation.
- 2Modbus/TCP (UDP) Compatibility: Seamlessly integrates with Modbus/TCP networks for efficient data exchange.
- 3Extreme Ambient Conditions: Operates within an extended temperature range of -40 °C to +70 °C.
- 4Web-Based Management: Easy configuration and monitoring via a web interface.
- 5Robust Design with Coated PCBs: Ensures reliability and durability in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 80 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Specfications with connectors |
| Note on application | Only for industrial use | Number of interfaces | 2 |
| Connection method | RJ45 jack | Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
| Number of interfaces | 1 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps (automatic detection, no combined system) | Max. number of local bus devices | 61 (The on-board I/Os are two devices) |
| Number of supported devices | max. 63 (per station) | Number of local bus devices that can be connected | max. 61 (The on-board I/Os are two devices) |
| Number of devices with parameter channel | max. 16 | Number of supported branch terminals with remote bus branch | 0 |
| ID code (hex) | none | Input address area | 8 bit |
| Output address area | 4 bit | Register length | 16 bit |
| Input name | Digital inputs | Description of the input | EN 61131-2 type 1 |
| Number of inputs | 8 | Connection method | Inline connector |
| Connection technology | 3-conductor | Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
| Nominal input voltage U | 24 V DC | Nominal input current at U | typ. 3 mA |
| Typical input current per channel | typ. 3 mA | Typical response time | approx. 500 µs |
| Delay at signal change from 0 to 1 | 1.2 ms | Delay at signal change from 1 to 0 | 1.2 ms |
| Protective circuit | Reverse polarity protection; Suppressor diode | Output name | Digital outputs |
| Connection method | Inline connector | Connection technology | 3-conductor |
| Number of outputs | 4 | Protective circuit | Short-circuit and overload protection; Freewheeling circuit in the output driver |
| Output voltage | 24 V DC -1 V (At nominal current) | Maximum output current per module | max. 2 A |
| Nominal output voltage | 24 V DC | Output current when switched off | max. 10 µA (When not loaded, a voltage can be measured even at an output that is not set.) |
| Nominal load, inductive | 12 VA (1.2 H, 48 Ω) | Nominal load, lamp | 12 W |
| Nominal load, ohmic | 12 W | Reverse voltage resistance to short pulses | Reverse voltage proof |
| Behavior with overload | Auto restart | Behavior with inductive overload | Output can be destroyed |
| Behavior at voltage switch-off | The output follows the power supply without delay | Signal delay | typ. 1.2 ms |
| Overcurrent shut-down | min. 0.7 A | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connectors and marking fields | No. of channels | 12 |
| Special properties | Extreme conditions version | Diagnostics messages | Short-circuit or overload of the digital outputs yes
Sensor supply failure yes
Failure of the actuator supply yes |
| Article revision | 05 | Maximum power dissipation for nominal condition | 6.3 W |
| Protective circuit | Surge protection (segment supply, main supply, bus coupler supply); Suppressor diode, 35 V DC
Reverse polarity protection (segment supply, main supply, bus coupler supply); Suppressor diode, 35 V DC | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 0.98 A (with max. number of connected I/O terminal blocks)
min. 80 mA (without connected I/O terminal blocks) |
| Supply voltage | 7.5 V DC | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 8 A DC
min. 3 mA (without connected peripherals) |
| Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 8 A DC
min. 3 mA (without connected peripherals) | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C (Standard)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
