Product Model

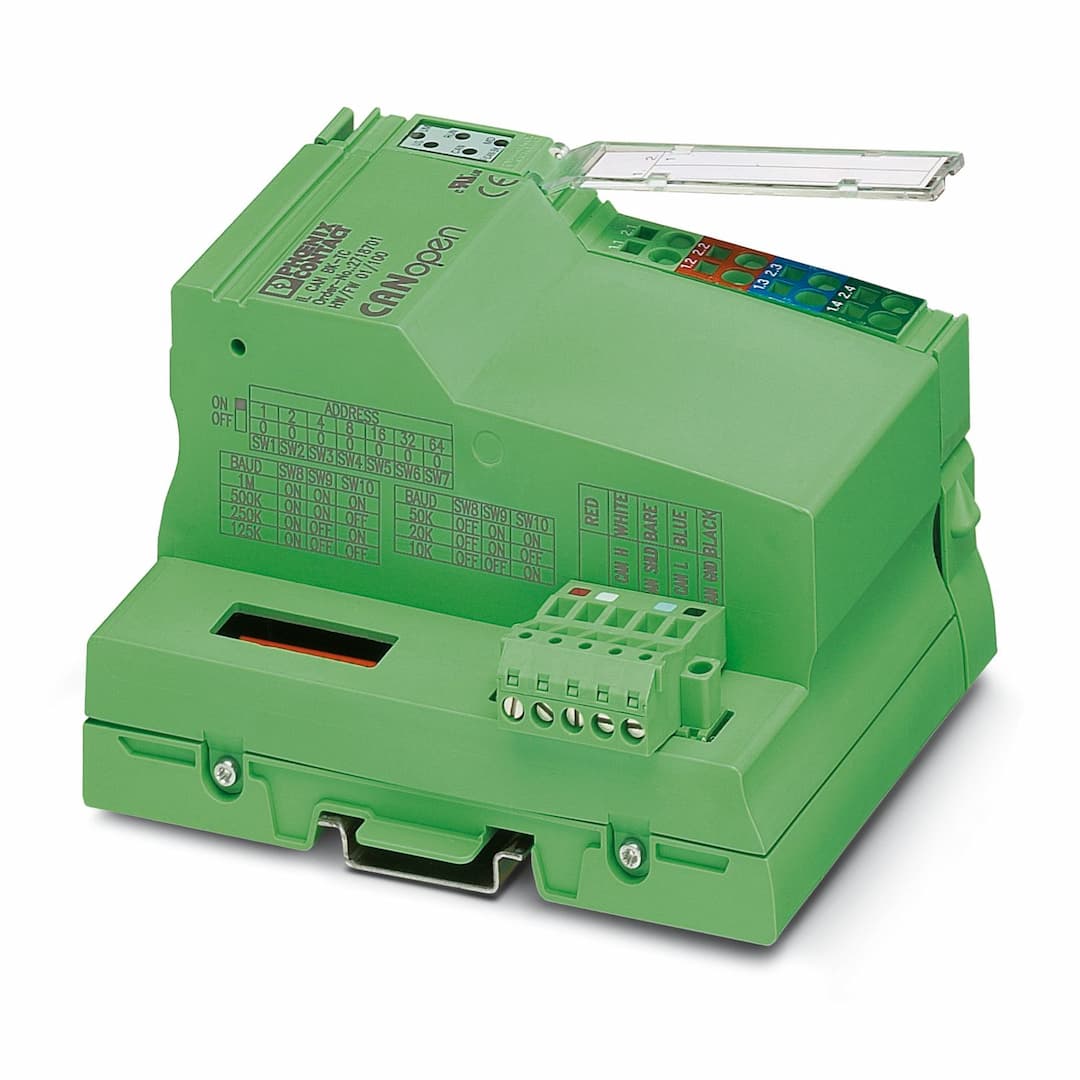

IL CAN BK-TC-PAC
Key Features
- 1Seamless Integration: Connects INTERBUS Inline stations to CANopen networks effortlessly.
- 2Robust Connectivity: Supports transmission speeds up to 1 MBaud and 10 kBaud.
- 3Precise Diagnostics: Local LEDs enable precise diagnostics and troubleshooting.
- 4Flexible Configuration: Address area assignment can be set via DIP switches from outside.
- 5Durable Design: Meets IP20 protection standards and operates within -25°C to 55°C ambient temperature.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 85 mm | Height | 119.8 mm |
| Depth | 71.5 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Color | green | No. of channels | 1 |
| Connection method | TWIN COMBICON | Number of positions | 10 |
| Transmission speed | 1 MBaud, 500 kBaud, 250 kBaud, 125 kBaud, 50 kBaud, 20 kBaud, 10 kBaud (Can be set via DIP switch or programmed) | Address area assignment | 0 ... 63, can be set |
| No. of channels | 1 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | Max. number of local bus devices | 63 (The on-board I/Os are two devices) |
| Number of supported devices | max. 63 (per station) | Number of local bus devices that can be connected | max. 63 |
| Number of devices with parameter channel | max. 8 | Number of supported branch terminals with remote bus branch | 0 |
| ID code (hex) | none | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including network connector, Inline connector, and marking field | Maximum power dissipation for nominal condition | 30 W |
| Protective circuit | Surge protection; Suppressor diode
Reverse polarity protection; Suppressor diode | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (via Inline connector) | Current draw | max. 1.25 A |
| Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Test voltage: CANopen®/local bus | 500 V |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -45 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
