Product Model

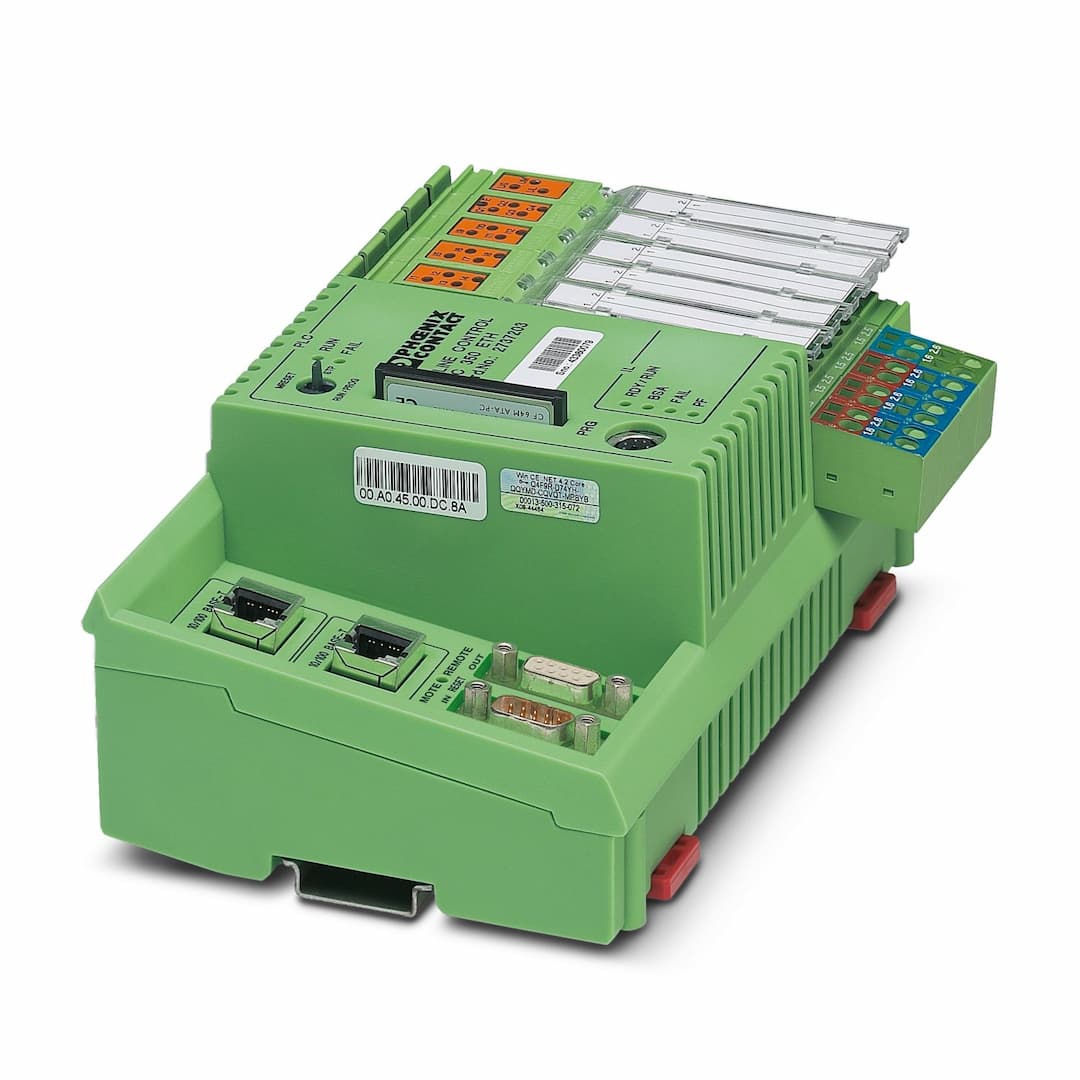

ILC 370 ETH 2TX-IB/M
Key Features
- 1Highly Modular Design: Adaptable to various application requirements with direct integration in Inline automation systems.
- 2Integrated Ethernet Interfaces: Enables parameterization and programming using PC WorX automation software according to IEC 61131.
- 3PROFINET Compatibility: Supports parameterization and programming with PROFINET interfaces for seamless system integration.
- 4GL Approval: Meets global safety standards for electrical equipment, ensuring reliability in industrial environments.
- 5Compact and Robust: Dimensions: 182 mm x 140.5 mm x 71.5 mm, suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Controller |
| Product family | Inline | Type | Inline format with alignable I/Os |
| Retentive data storage | 96 kByte (NVRAM) | Program memory | typ. 2 Mbyte |
| Data storage system | 4 Mbyte | Number of control tasks | 16 |
| Amount of process data | max. 8192 bit (INTERBUS-Master) | Number of supported devices | max. 512 (in total, of which 254 are remote bus devices/bus segments) |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) | Number of devices with parameter channel | max. 62 |
| Number of supported branch terminals with remote bus branch | max. 15 | ID code (dec.) | 3 |
| ID code (hex) | 3 | Engineering tool | PC Worx |
| Diagnostics tool | DIAG+ from version 1.14 | Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 6 W | Supply voltage | 24 V DC ±5 % |
| Supply voltage range | 19.2 V DC ... 30 V DC | Residual ripple | ± 5 % |
| Typical current consumption | 250 mA (no local bus device connected during idling, bus inactive) | Realtime clock | Integrated (battery backup) |
| Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC -15 % / +20 % |
| Supply voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) | Supply voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Current draw | max. 5 A | Input name | Digital inputs |
| Description of the input | Eight fast inputs, interrupt input | Number of inputs | 12 |
| Connection method | Inline potential distributor | Connection technology | 2-, 3-, 4-conductor |
| Output name | Digital outputs | Connection method | Spring-cage connection |
| Connection technology | 2-, 3-, 4-conductor | Number of outputs | 4 |
| Output voltage | 24 V DC | Maximum output current per channel | 500 mA |
| Connection method | Inline data jumper | Transmission speed | 500 kBaud / 2 MBaud (can be switched) |
| Bus system | RS-232 | Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2), Ethernet 10/100 (RJ45) |
| Transmission physics | Copper | No. of channels | 1 |
| Connection method | RJ45 jack | Transmission speed | 10/100 Mbps |
| No. of channels | 2 | Connection method | D-SUB-9 female/D-SUB-9 male |
| Width | 182 mm | Height | 140.5 mm |
| Depth | 71.5 mm | Color | green (RAL 6021) |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C | Permissible humidity (operation) | 5 % ... 90 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 90 % (non-condensing) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
