Product Model

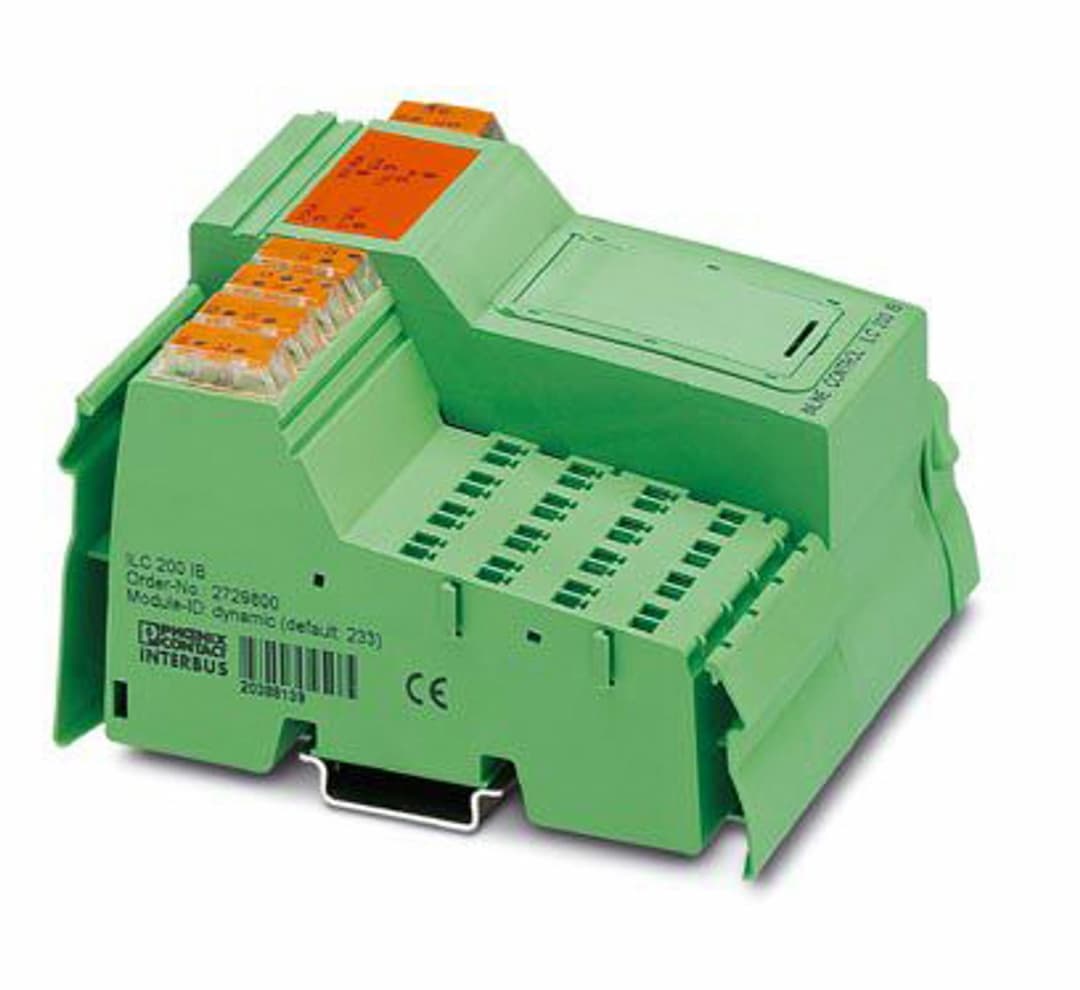

ILC 200 IB
Key Features
- 1Fast interrupt processing and event counting with digital inputs.
- 2High-speed outputs for pulse width modulation at 24 V DC.
- 3Retentive data storage of 8 kByte (NVRAM) for reliable operation.
- 4Supports up to 8 control tasks with a typical program memory of 384 kByte.
- 5Compatible with INTERBUS-Master, handling up to 4096 bits of process data.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Controller | Product family | Inline |
| Type | Inline format with alignable I/Os | Diagnostics display | no |
| Retentive data storage | 8 kByte (NVRAM) | Program memory | typ. 384 kByte (32 K instructions (IL)) |
| Data storage system | 330 kByte | Number of control tasks | 8 |
| Amount of process data | max. 4096 bit (INTERBUS-Master) | Number of parameter data | max. 8 Byte (configurable) |
| Number of supported devices | max. 512 (of which 254 are remote bus devices/bus segments) | Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Number of devices with parameter channel | max. 62 | Number of supported branch terminals with remote bus branch | max. 15 |
| Diagnostics display | no | Controller redundancy | no |
| Designation | BA, RC, RD, TR | Monitored function | Higher-level network |
| Optical representation | LED | ID code (dec.) | 3
232
233
235 |
| ID code (hex) | 3
E8
E9
EB | Engineering tool | PC Worx |
| Diagnostics tool | DIAG+ from version 1.14 | Local diagnostics | BA, RC, RD, TR Higher-level network LED
FC RUN, SYSFAIL IEC 61131 runtime system LED
RDY/RUN, BSA, FAIL, PF INTERBUS master LED |
| Transmission medium | Copper | Maximum power dissipation for nominal condition | max. 3.25 W |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC |
| Power supply connection | 8-pos. Inline connector | Max. total permissible current consumption of all I/O terminal blocks | Communications power (7,5 V DC) ≤ 2 A DC
Analog supply (24 V DC) ≤ 0.5 A |
| Residual ripple | ± 5 % | Typical current consumption | 153 mA (no local bus device connected during idling, bus inactive) |
| Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC -15 % / +20 % |
| Supply voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) | Supply voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Current draw | max. 2 A | Input name | Digital inputs |
| Description of the input | Interrupt input, fast counter, pulse generator | Number of inputs | 4 |
| Connection method | Inline potential distributor | Connection technology | 2-, 3-, 4-conductor |
| Input voltage | 2 x 24 V DC + 2 x 5/24 V DC | Typical input current per channel | 40 mA |
| Typical response time | < 1 ms | Number of inputs | 4 |
| Input frequency | 40 kHz | Output name | Digital outputs |
| Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
| Number of outputs | 2 | Output voltage | 24 V DC |
| Maximum output current per channel | 500 mA | Number of pulse direction outputs | 2 |
| Limit frequency | 20 kHz | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Number of interfaces | 1 |
| Connection method | Inline data jumper | Transmission speed | 500 kBaud / 2 MBaud (can be switched) |
| Connection method | Inline shield connector | Transmission speed | 500 kBaud |
| No. of channels | 1 | Bus system | RS-232 |
| Number of interfaces | 1 | Connection method | 6-pos. MINI DIN socket (PS/2) |
| Transmission speed | 19200 Baud | Transmission physics | Copper |
| Width | 109.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Color | green (RAL 6021) |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C | Permissible humidity (operation) | 5 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 85 % (non-condensing) | Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, criterion 1 according to IEC 60068-2-6 | Air pressure (operation) | 70 kPa ... 108 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
