Product Model

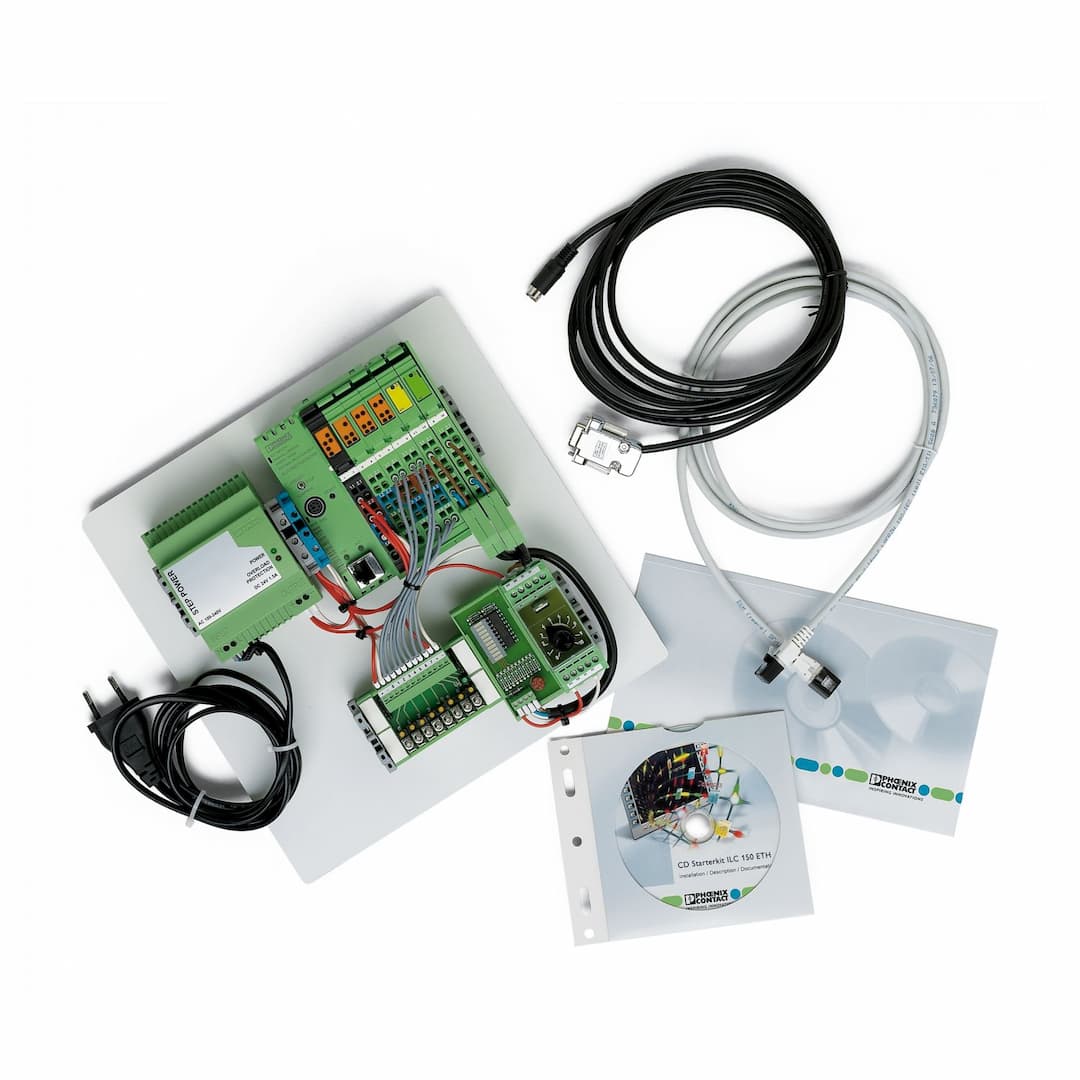

ILC 150 STARTERKIT
Key Features
- 1The ILC 150 STARTERKIT includes bus terminal modules, I/O modules, and control panels for seamless expansion.
- 2Program the controller using IEC 61131-3 standards with the included PC WORX EXPRESS development environment.
- 3Achieve high-performance automation with the compact and communicative ILC 150 ETH controller.
- 4Connect to other controllers and systems via Ethernet for efficient data exchange.
- 5Includes power supply, accessories, and cables for setting up a complete test application.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Starter kit | Type | Inline format with alignable I/Os |
| Set comprises | 2962997 UM 45-IB-DI/SIM8 | Diagnostics display | no |
| Retentive data storage | 8 kByte (NVRAM) | Program memory | typ. 256 kByte |
| Data storage system | 256 kByte | Number of control tasks | 8 |
| Amount of process data | max. 4096 bit (INTERBUS) | Number of supported devices | max. 128 |
| Number of devices with parameter channel | max. 16 | Number of supported branch terminals with remote bus branch | max. 3 |
| Diagnostics display | no | Controller redundancy | no |
| Engineering tool | PC Worx
PC Worx Express | Configuration tool | Config+ Version 1.01 or later |
| Diagnostics tool | DIAG+ | Runtime system | eCLR |
| Application interface | OPC | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
