Product Model

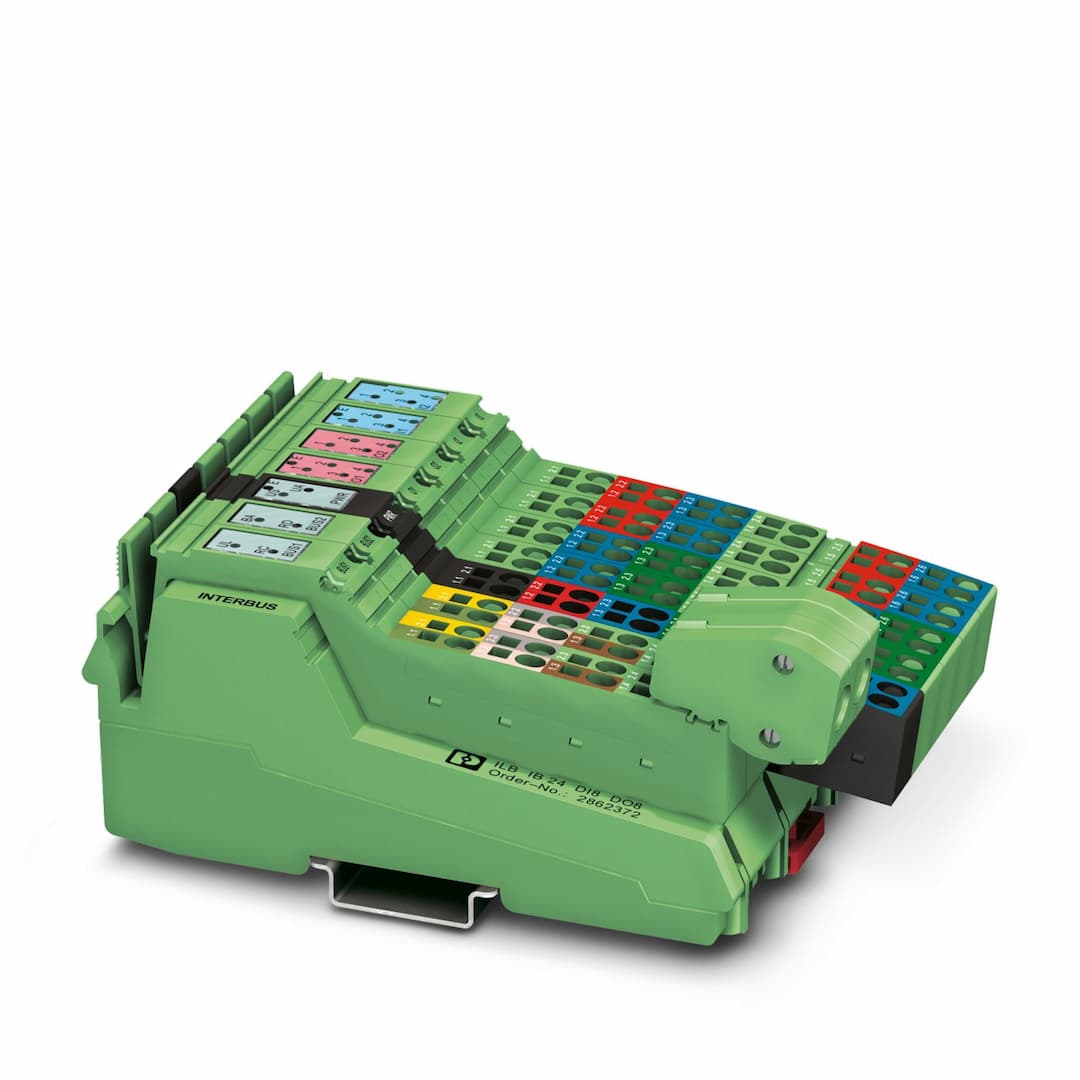

ILB IB 24 DI 8 DO 8
Key Features
- 1High-Performance Digital Inputs and Outputs: The ILB IB 24 DI 8 DO 8 module offers 8 digital inputs and 8 digital outputs, ensuring robust data transmission in industrial settings.
- 2IP20 Protection: Designed with IP20 protection, this module provides reliable operation in various environmental conditions.
- 324 V DC Power Supply: Compatible with a 24 V DC power supply, this module ensures stable operation and efficient energy use.
- 4Fast Response Time: With a typical response time of approximately 500 µs, this module ensures quick data processing and accurate control.
- 5DIN Rail Mounting: Easy to install on DIN rail NS 35/7,5 or NS 35/15, making it a versatile solution for industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 95 mm | Height | 141 mm |
| Depth | 57 mm | Note on dimensions | Specfications with connectors |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | green |
| Connection method | Inline shield connector | Transmission speed | 500 kbps |
| Input name | Digital inputs | Description of the input | EN 61131-2 type 1 |
| Number of inputs | 8 | Connection method | Spring-cage connection |
| Connection technology | 3-conductor | Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
| Nominal input voltage U | 24 V DC | Nominal input current at U | 5 mA |
| Total sensor current | max. 2 A | Typical response time | approx. 500 µs |
| Protective circuit | Short-circuit protection, overload protection of the sensor supply | Output name | Digital outputs |
| Connection method | Spring-cage connection | Connection technology | 3-conductor |
| Number of outputs | 8 | Protective circuit | Short-circuit and overload protection |
| Output voltage | 24 V DC | Maximum output current per channel | 500 mA |
| Maximum output current per module / terminal block | 4 A | Maximum output current per module | 4 A |
| Nominal output voltage | 24 V DC | Nominal load, inductive | 12 VA |
| Nominal load, lamp | 12 W | Nominal load, ohmic | 12 W |
| Product type | I/O component | Product family | Inline |
| Type | Block design
Inline | Scope of delivery | including Inline connector |
| No. of channels | 16 | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 80 mA |
| Current draw | 2 A | Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
| Current draw | 80 mA | Current draw | 2 A |
| Test voltage: I/Os / incoming remote bus | 500 V AC, 50 Hz, 1 min | Test voltage: I/Os / outgoing remote bus | 500 V AC, 50 Hz, 1 min |
| Test voltage: I/O area / FE | 500 V AC, 50 Hz, 1 min | Test voltage: Incoming remote bus / FE | 500 V AC, 50 Hz, 1 min |
| Test voltage: Outgoing remote bus / FE | 500 V AC, 50 Hz, 1 min | Test voltage: Incoming remote bus / outgoing remote bus | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | max. 85 % (non-condensing) | Permissible humidity (storage/transport) | 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Noise emission | Class B (residential) |
| Mounting type | NS 35/7,5
DIN rail mounting |
