Product Model

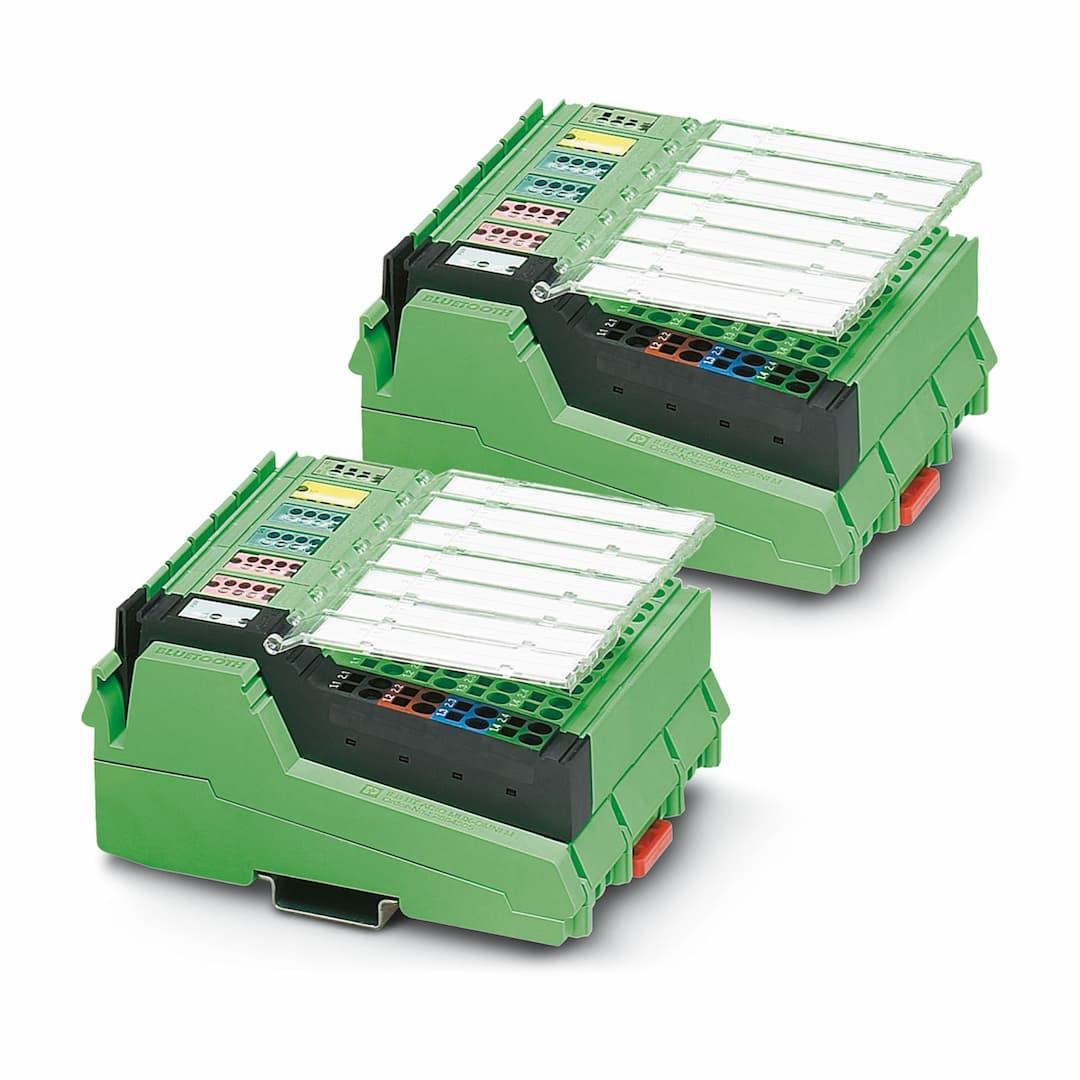

ILB BT ADIO MUX
Key Features
- 1The ILB BT ADIO MUX uses Bluetooth 1.2 for reliable wireless transmission.
- 2Built for industrial conditions, ensuring ruggedness and reliability.
- 3Supports 16 digital inputs and 2 analog inputs, with 16 digital outputs and 2 analog outputs.
- 4Simple setup and diagnostics via bar graph for quick connection establishment.
- 5Available with omnidirectional or directional antennas for various range requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Wireless module |
| Product family | Inline | Application | I/O |
| Type | Block design | MTTF | 1458 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
557 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
219 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
| Diagnostics messages | Short-circuit or overload of the digital outputs LED
Wireless connection FS LED
Logic and actuator voltage LED
Link quality of the wireless connection 4 LEDs | Article revision | 02 |
| Overvoltage category | II | Pollution degree | 2 |
| Delay time | ≤ 10 ms (Latency, typical)
≤ 800 ms (Failsafe function for wireless interruption) | Connection method | Inline connector |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30.5 V DC (via power connector) |
| Current consumption | 60 mA (at 24 V DC, at 25 °C) | Protective circuit | Polarity protection, surge protection |
| Input name | Analog inputs | Description of the input | Single ended |
| Number of inputs | 2 | Current input signal | 0 mA ... 20 mA |
| Input resistance current input | 50 Ω | Voltage input signal | 0 V ... 10 V |
| Input resistance of voltage input | 130 kΩ | Measured value resolution | 12 bits |
| Protective circuit | Surge voltage; Suppressor diodes in the analog inputs, current limitation via internal protective circuit | Input name | Digital inputs |
| Number of inputs | 16 | Connection method | Spring-cage connection |
| Connection technology | 1-conductor | Input voltage range "0" signal | < 5 V |
| Input voltage range "1" signal | > 15 V | Nominal input voltage U | 24 V DC |
| Typical input current per channel | 2.3 mA | Output name | Analog outputs |
| Number of outputs | 2 | DAC resolution | 12 bit |
| Current output signal | 0 mA ... 20 mA | Load/output load current output | ≤ 500 Ω |
| Voltage output signal | 0 V ... 10 V | Load/output load voltage output | ≥ 2 kΩ |
| Output name | Digital outputs | Connection method | Spring-cage connection |
| Connection technology | 1-conductor | Number of outputs | 16 |
| Protective circuit | Short-circuit protection, overload protection, protected against reverse voltages | Output current | 8 A |
| Maximum output current per channel | 500 mA | Nominal output voltage | 24 V DC |
| Output current when switched off | ≤ 10 µA (When not loaded, a voltage can be measured even at an output that is not set.) | Nominal load, inductive | 12 VA (1.2 H, 50 Ω) |
| Nominal load, lamp | 12 W | Nominal load, ohmic | 12 W (48 Ω) |
| Reverse voltage resistance to short pulses | Reverse voltage proof | Behavior with overload | Auto restart |
| Behavior with inductive overload | Output can be destroyed | Behavior at voltage switch-off | The output follows the power supply without delay |
| Overcurrent shut-down | ≥ 0.7 A | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible [AWG] | ... 16 |
| Stripping length | 8 mm | Wireless licenses | Europe, USA, Canada, additional countries in the e-shop |
| Modulation type | GFSK (Gaussian Frequency Shift Keying) | Antenna connection method | RSMA (female) |
| No. of channels | 40 | Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Frequency band | 2.4 GHz | Wireless standard | Bluetooth |
| Transmission power | 5 dBm | Receiver sensitivity | -95.00 dBm |
| Diagnostics | Short-circuit or overload of the digital outputs | Message | LED |
| Diagnostics | Wireless connection | Message | FS LED |
| Diagnostics | Logic and actuator voltage | Message | LED |
| Diagnostics | Link quality of the wireless connection | Message | 4 LEDs |
| Width | 95 mm | Height | 123.4 mm |
| Depth | 57 mm | Note on dimensions | with connectors |
| Color (Housing) | green (RAL 6021) | Material (Housing) | PA 6.6-FR |
| Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP20 |
| Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % | Certificate | CE-compliant |
| Identification | 508 Listed | Note | RED 2014/53/EU |
| Identification | YG3ADIOMUX | Note | FCC directive, part 15.247 |
| Certificate | NR-ETA/5957 | Identification | Japan MIC (RF) ID:202-LSF002 |
| Certificate | 4720B-ADIOMUX | Note | ISC directive RSS 210 |
| Certificate | IFT RCPPHIL19-2130 | Certificate | TA-2006/032 |
| Certificate | MSIP-CRI-PCK-2884208 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Standards/regulations | EN 61000-4-2 | Contact discharge | ± 6 kV (Test Level 3) |
| Discharge in air | ± 8 kV (Test Level 3) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-3 | Frequency range | 26 MHz ... 3 GHz (Test Level 3) |
| Field intensity | 10 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | ± 2 kV (Test Level 3) |
| Signal | ± 2 kV (Signal line) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 | Input | ± 0.5 kV (symmetrical)
± 1 kV (asymmetrical) |
| Signal | ± 1 kV (Signal line, asymmetrical) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A | Voltage | 10 V |
| Emitted radio interference in acc. with EN 55011 | EN 55016-2-3 Class A industrial applications | Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. | Protection class | III |
| Free from substances that could impair the application of coating | VDMA 24364:2018-05 | Standard designation | RED directive 2014/53/EU |
| Standards/specifications | EN 300328
EN 61000-6-4
EN 61000-6-2
EN 62311
EN 60950 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
