Product Model

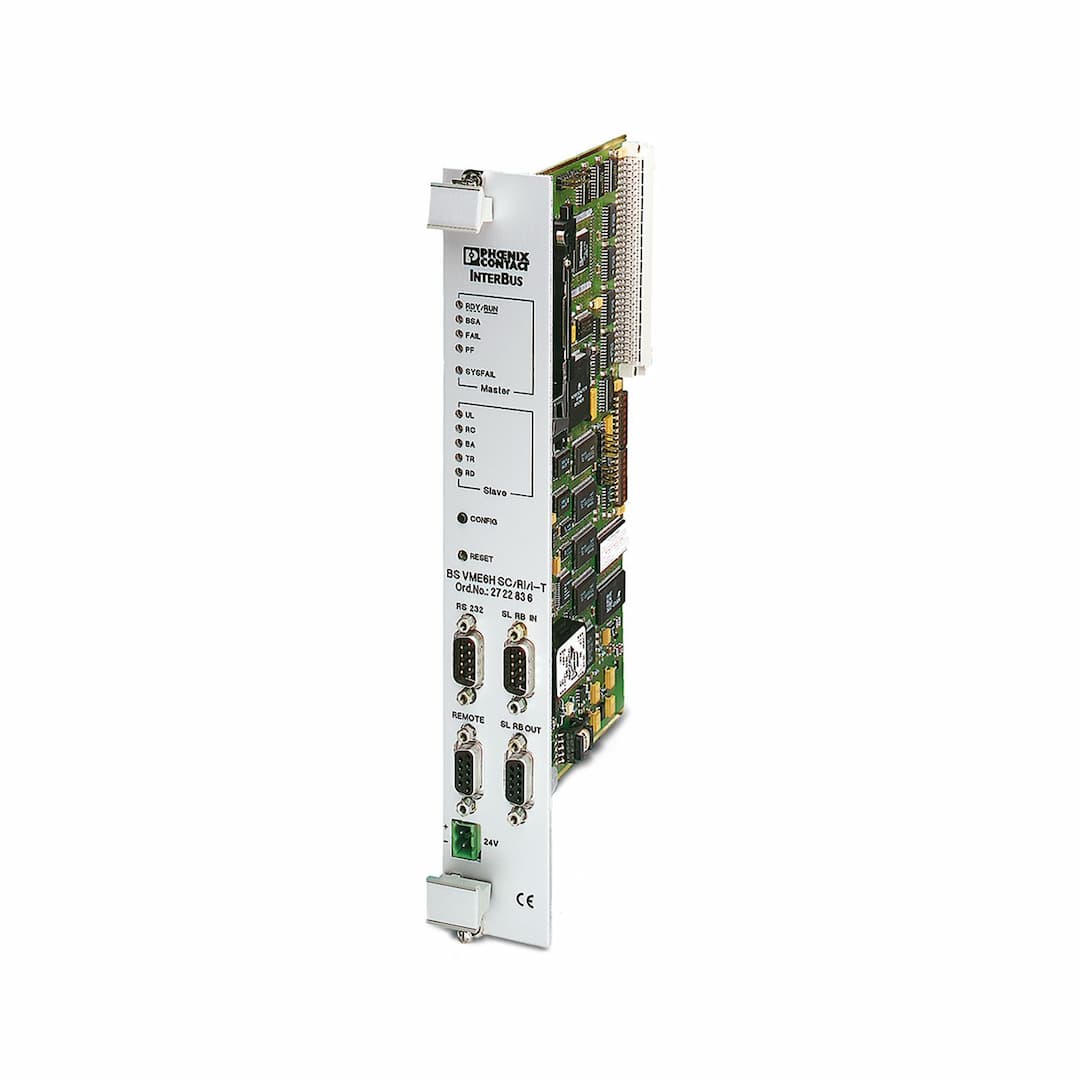

IBS VME6H SC/RI/I-T
Key Features
- 1Max. 3 W for nominal conditions.
- 25 V DC (master) supply voltage.
- 3Ensures stable and efficient data transmission.
- 4Ideal for space-constrained applications in industrial settings.
- 5Suitable for various PLC controller systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | PLC controller board | Format | 6 rack units, 2 slots |
| Data storage system | MPM, base address adjustable | Number of devices with parameter channel | max. 62 |
| Monitored function | Master operating status | Optical representation | 3 LEDs |
| Local diagnostics | Master operating status 3 LEDs
Master error status 2 LEDs
Slave operating status 3 LEDs
Slave error status 2 LEDs | Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 3 W | Supply voltage | 5 V DC (master)
24 V DC (slave, connection: COMBICON, MSTB 2,5) |
| Supply voltage range | 4.9 V DC ... 5.3 V DC (master)
18 V DC ... 31 V DC (Slave) | Power supply connection | Via VMEbus connector P1 |
| Residual ripple | 0.1 V
0.5 V | Typical current consumption | 610 mA (master)
100 mA (Slave) |
| Interrupts | Level 1-7, vector 0 - 255 | Connection method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
| Connection method | RS-232-C, D-SUB 9-pos. male connector | Connection method | VMEbus systems, VMEbus connector P1 (IEC 603-2) |
| Degree of protection | IP00 | Mounting type | In the host system |
Specifications may be subject to change without notice
