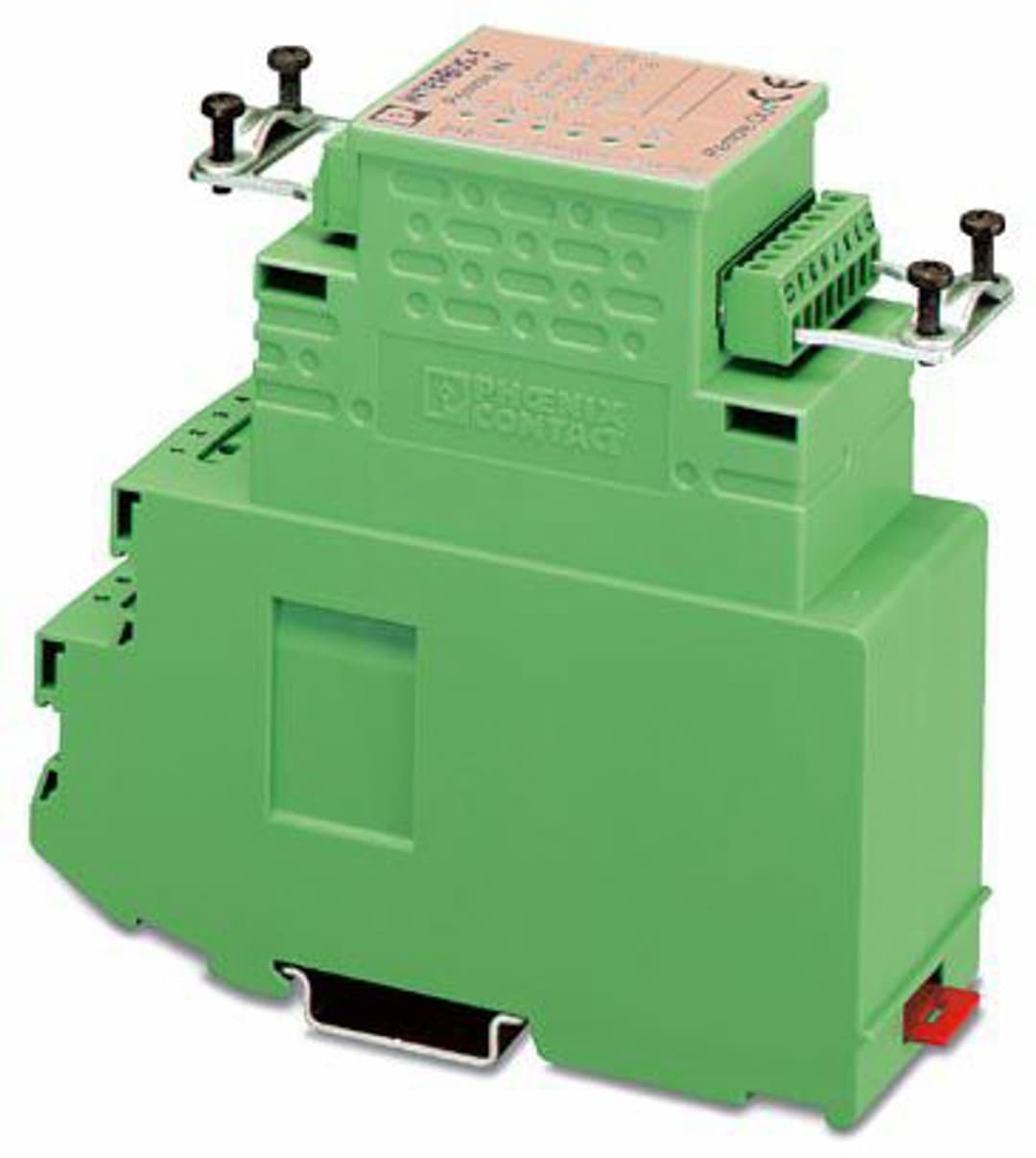

Product Model
IB ST 24 V.24
Key Features
- 1High-current output: 500 mA per channel for demanding applications.
- 2Robust short-circuit protection: Separate electronic protection for each output channel.
- 3DIN rail mounting: Easy and secure installation on standard DIN rails.
- 4Multi-wire connection: Supports both 2-wire and multi-wire connection methods.
- 5Diagnostic indicators: Provides status and diagnostic indicators for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 44 mm | Height | 117 mm |
| Color | green | Output buffer | 4 kByte |
| Input buffer | 4 kByte | Connection method | ST local bus connector |
| Transmission speed | 110 ... 19200 bps (programmable) | Product type | I/O component |
| Product family | Smart Terminal ST | Type | modular
INTERBUS Smart Terminal |
| Hardware handshake | RTS/CTS and DTR/DSR at RS-232-C | Connection method | ST local bus connector |
| Designation | Communications power | Supply voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 130 mA (from the ST local bus) | Designation | U |
| Supply voltage | 24 V DC | Supply voltage range | 20 V DC ... 30 V DC |
| Test voltage: Interfaces/Logic | 500 V AC, 50 Hz, 1 min | Test voltage: Interfaces/24 V supply | 500 V AC, 50 Hz, 1 min |
| Test voltage: Interfaces/Bus | 500 V AC, 50 Hz, 1 min | Test voltage: Interfaces/Ground conductor | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply/Bus | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply/Ground conductor | 500 V AC, 50 Hz, 1 min |
| Connection method | Screw connection | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm | Connection method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Stripping length | 8 mm |
| Degree of protection | IP20 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
