Product Model

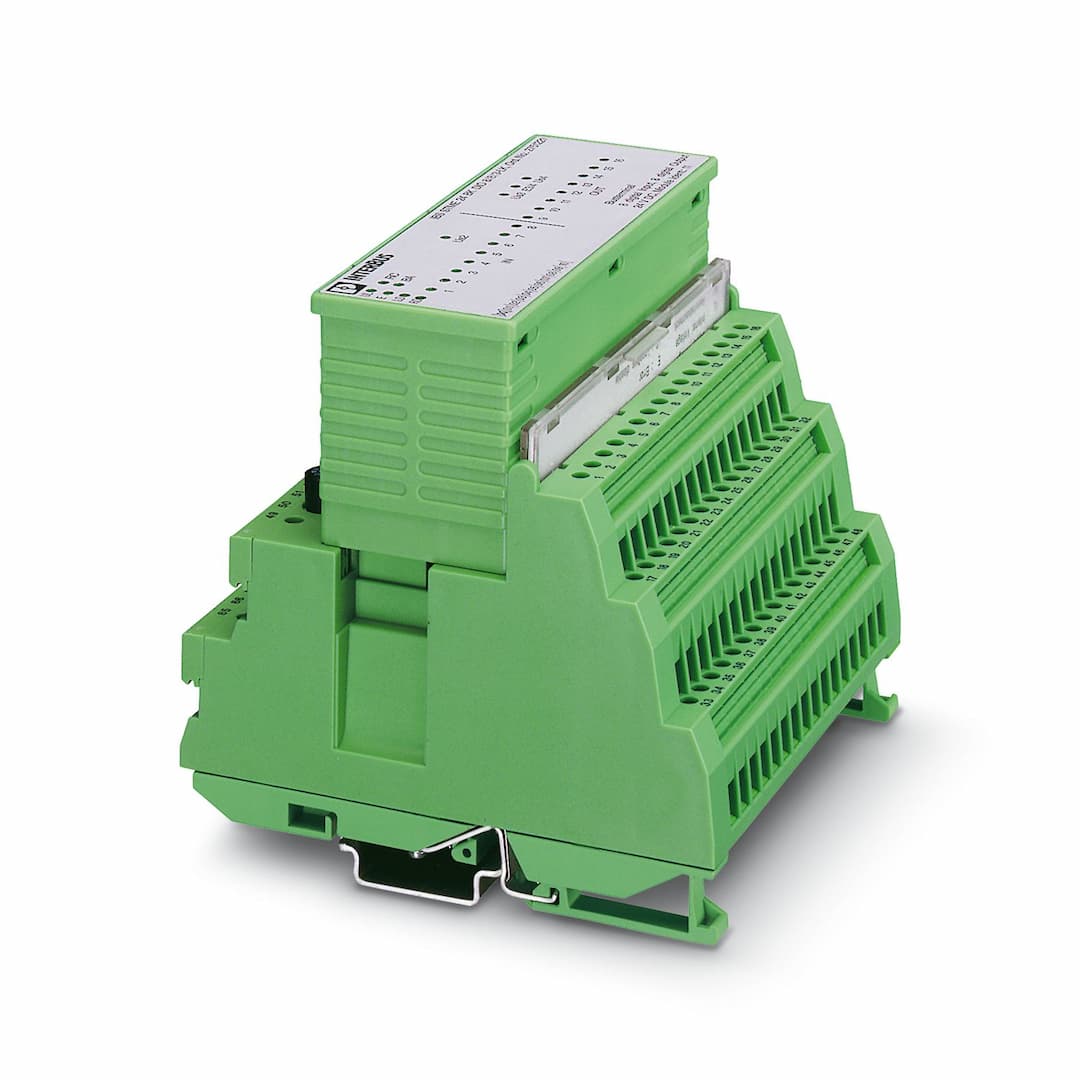

IB ST 24 DI16/4-WT
Key Features
- 1Connect up to 16 sensors with ease.
- 2Compatible with 24 V DC power supply.
- 3Supports 2-, 3-, and 4-conductor technology.
- 4Ensures robust and reliable operation in various environments.
- 5Monitor status and diagnose issues with ease.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 118 mm | Height | 117 mm |
| Length | 116 mm | Transmission speed | 500 kbps |
| Product type | I/O component | Product family | Smart Terminal ST |
| Type | modular | Connection method | Screw connection |
| Stripping length | 8 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
