Product Model

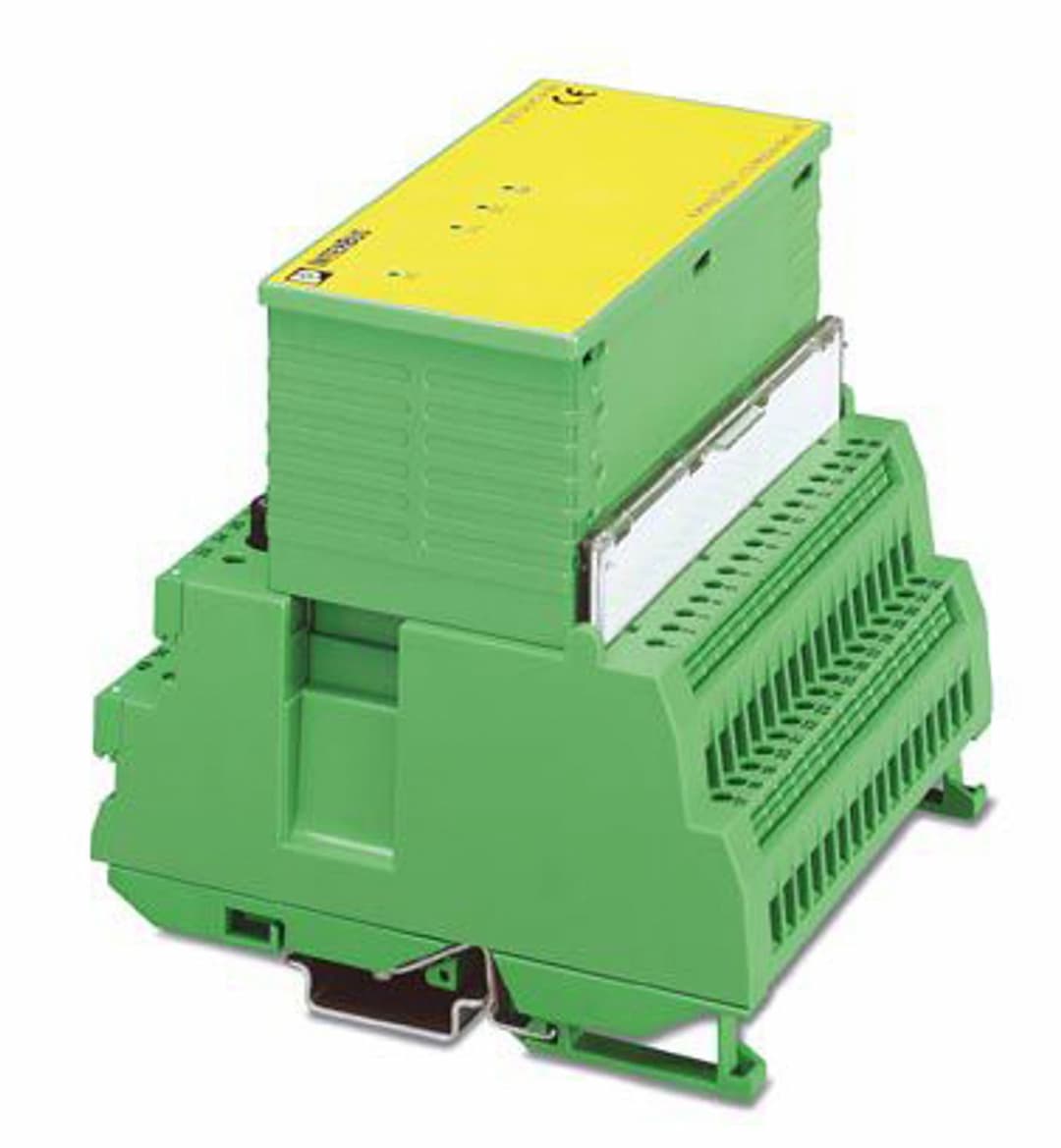

IB ST 24 BAO 8/U
Key Features
- 1High-Precision Analog Output: 13-bit D/A resolution for precise signal conversion.
- 28 Outputs: Efficiently manage multiple analog signals with 8 outputs.
- 30 to 10 V Range: Compatible with a wide range of industrial applications.
- 4Screw Connection: Easy and secure terminal block connection.
- 5Durable Design: IP20 protection for reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 118 mm | Height | 117 mm |
| Length | 116 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Connection method | ST local bus connector | Transmission speed | 500 kbps |
| Product type | I/O component | Product family | Smart Terminal ST |
| Type | modular
INTERBUS Smart Terminal | No. of channels | 8 |
| Maximum power dissipation for nominal condition | 3.6 W | Test section | Bus/Outputs 500 V AC 50 Hz 1 min
Supply voltage/Outputs 500 V AC 50 Hz 1 min
Supply voltage/Ground conductor 500 V AC 50 Hz 1 min
I/O voltage/Ground conductor 500 V AC 50 Hz 1 min |
| Communications power U | 9 V DC (from the ST local bus) | I/O voltage | ± 24 V DC 5 % (ripple) |
| I/O voltage range | 18.5 V DC ... 30.2 V DC | Typical current consumption | 150 mA (at Us) |
| Connection name | Terminal block | Connection method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Stripping length | 8 mm |
| Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm | Degree of protection | IP20 |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
