Product Model

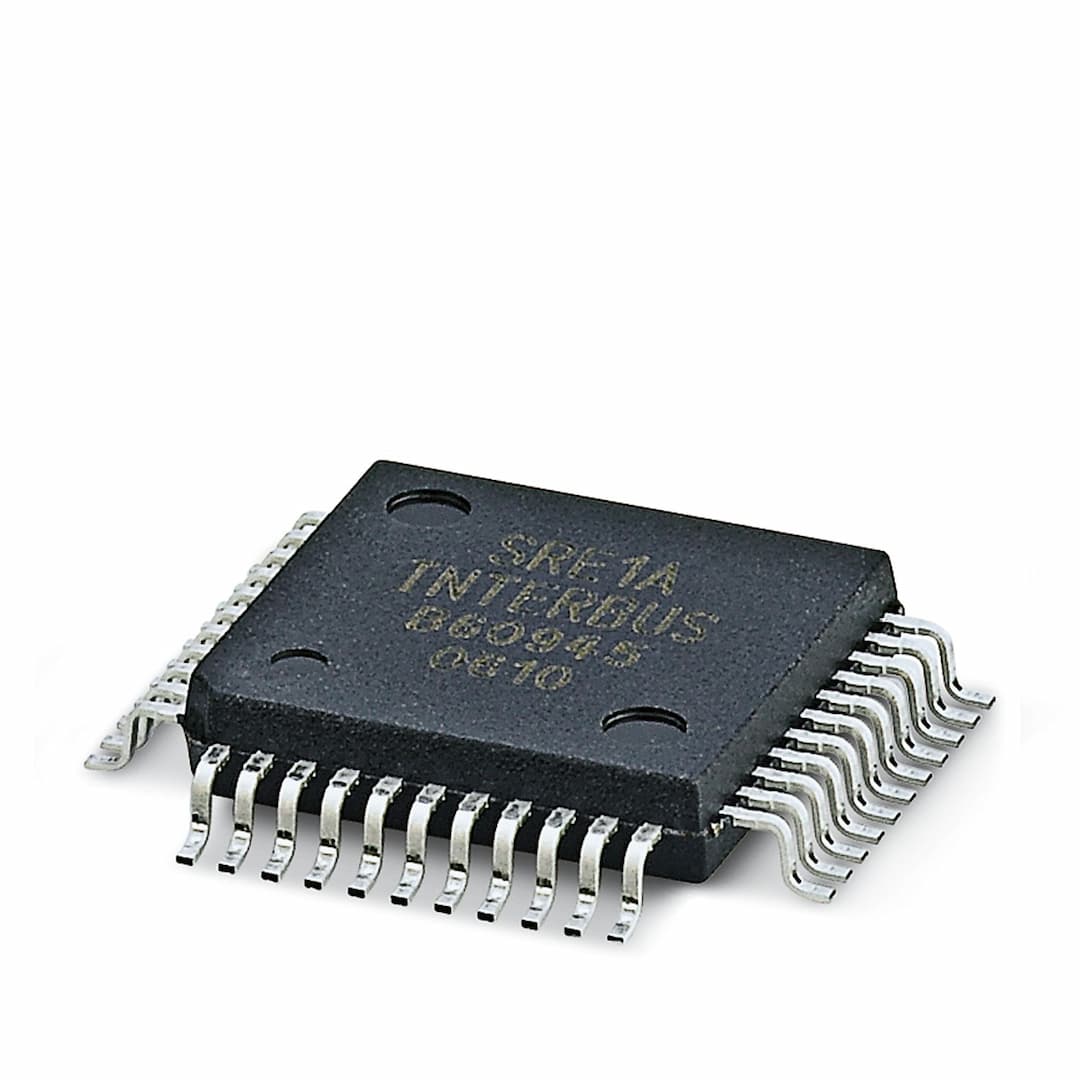

IBS SRE 1A
Key Features
- 1The IBS SRE 1A efficiently manages data with its 8-bit bidirectional data bus and 4-bit address bus.
- 2Equipped with one serial input and one serial output, it ensures reliable data transmission in industrial settings.
- 3Easily accessible via a microprocessor interface for seamless integration into various systems.
- 4Designed with safety in mind, the chip is protected against electrostatic discharge (ESD) according to EN 61340-5-1 and EN 61340-5-2.
- 5Housed in a compact QFP44 package, making it ideal for space-constrained industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Protocol chip |
| Type | QFP 44 | Internal data length | 12 bytes internally |
| IC power supply voltage | 5 V DC ±10 % (DC) | Typical current consumption | 10 mA |
| User interface | MFP interface, digital I/O, parallel port for microprocessors | Connection method | Remote bus, local bus or installation remote bus |
| Width | 14 mm | Height | 2.45 mm |
| Depth | 14 mm | Length | 14 mm |
| Degree of protection | IP00 | Ambient temperature (operation) | -40 °C ... 85 °C (at max. 75 % humidity during operation) |
| Ambient temperature (storage/transport) | 5 °C ... 30 °C (at max. 60 %) |
Specifications may be subject to change without notice
