Product Model

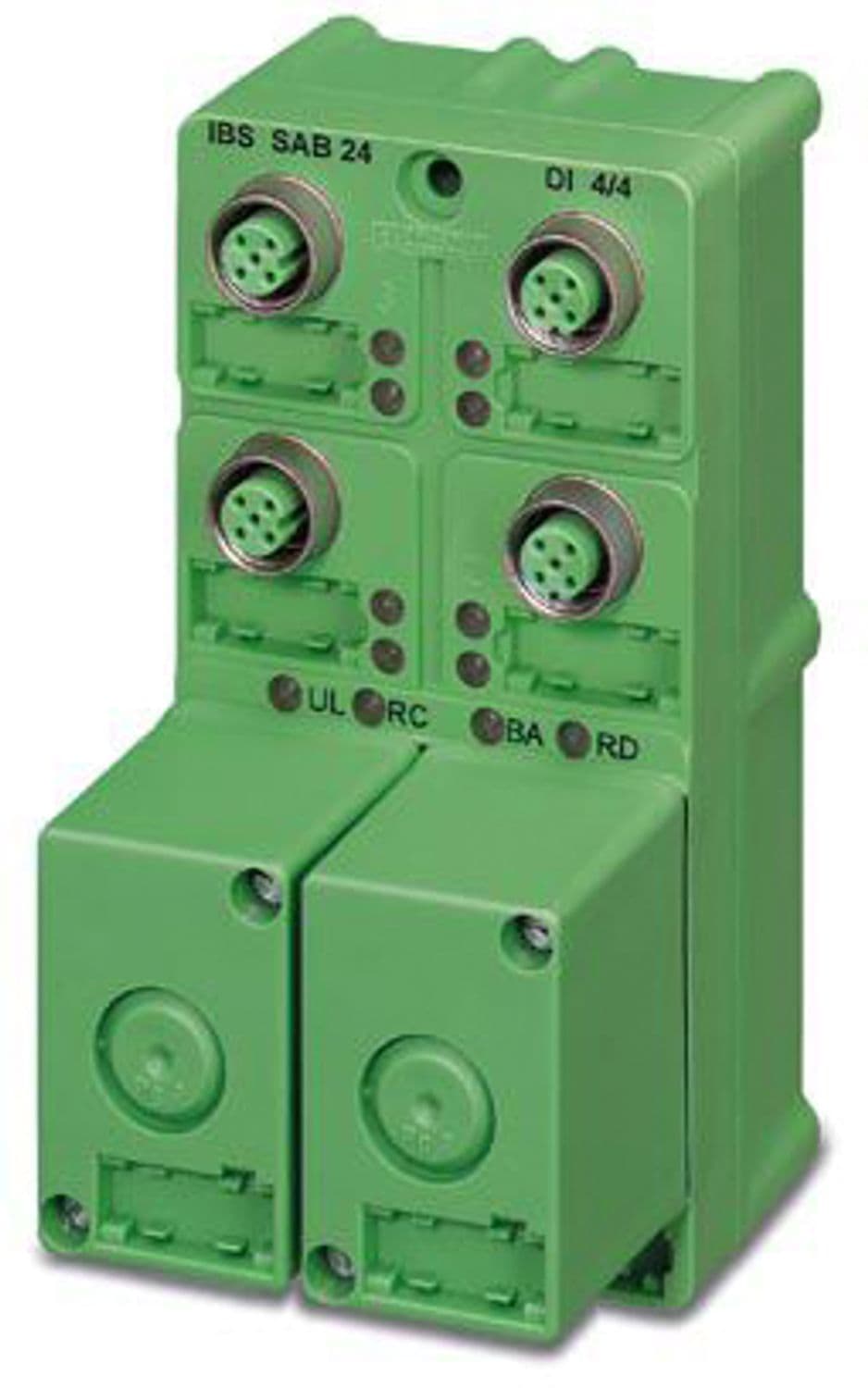

IBS SAB 24 DIO 4/4/2

Manufacturer

Phoenix Contact

Key Features

1High-Reliability Design: Built for demanding industrial environments with robust construction.
2Flexible Connectivity: Supports INTERBUS protocol with 4 digital inputs and 4 digital outputs.
3Efficient Power Handling: Operates at 24V DC with a maximum current of 2A per output.
4Easy Integration: Compatible with various INTERBUS configurations, including remote bus structures.
5Durable and Long-Lasting: Backed by a reliable design and suitable for harsh industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	61 mm	Height	77 mm
Length	132 mm	Connection method	SAB connector hood with MINI-COMBICON
Transmission speed	500 kbps	Transmission physics	Copper
Number of inputs	4	Input voltage range "0" signal	-30 V DC ... 5 V DC
Input voltage range "1" signal	13 V DC ... 30 V DC	Protective circuit	Reverse polarity protection
Connection method	5-pos. M12 sensor connector, female	Connection technology	4-conductor
Typical input current per channel	5 mA	Number of outputs	2
Output voltage	U	Protective circuit	Short-circuit protection
Product type	I/O component	Type	Stand-Alone
I/O voltage	± 24 V DC 5 % (ripple)	I/O voltage range	20 V DC ... 30 V DC
Max. current consumption	500 mA (at 24 V DC (with load))	Typical current consumption	100 mA (from the installation remote bus)
Connection method	Pg9 screw connection	Conductor cross section rigid	0.14 mm² ... 1.5 mm²
Conductor cross section flexible	0.14 mm² ... 1.5 mm²	Conductor cross section AWG	28 ... 16
Connection method	Pg9 screw connection	Conductor cross section, rigid	0.14 mm² ... 1.5 mm²
Conductor cross section, flexible	0.14 mm² ... 1.5 mm²	Conductor cross section AWG	28 ... 16
Degree of protection	IP65/IP66	Mounting type	Wall mounting

Specifications may be subject to change without notice
