Product Model

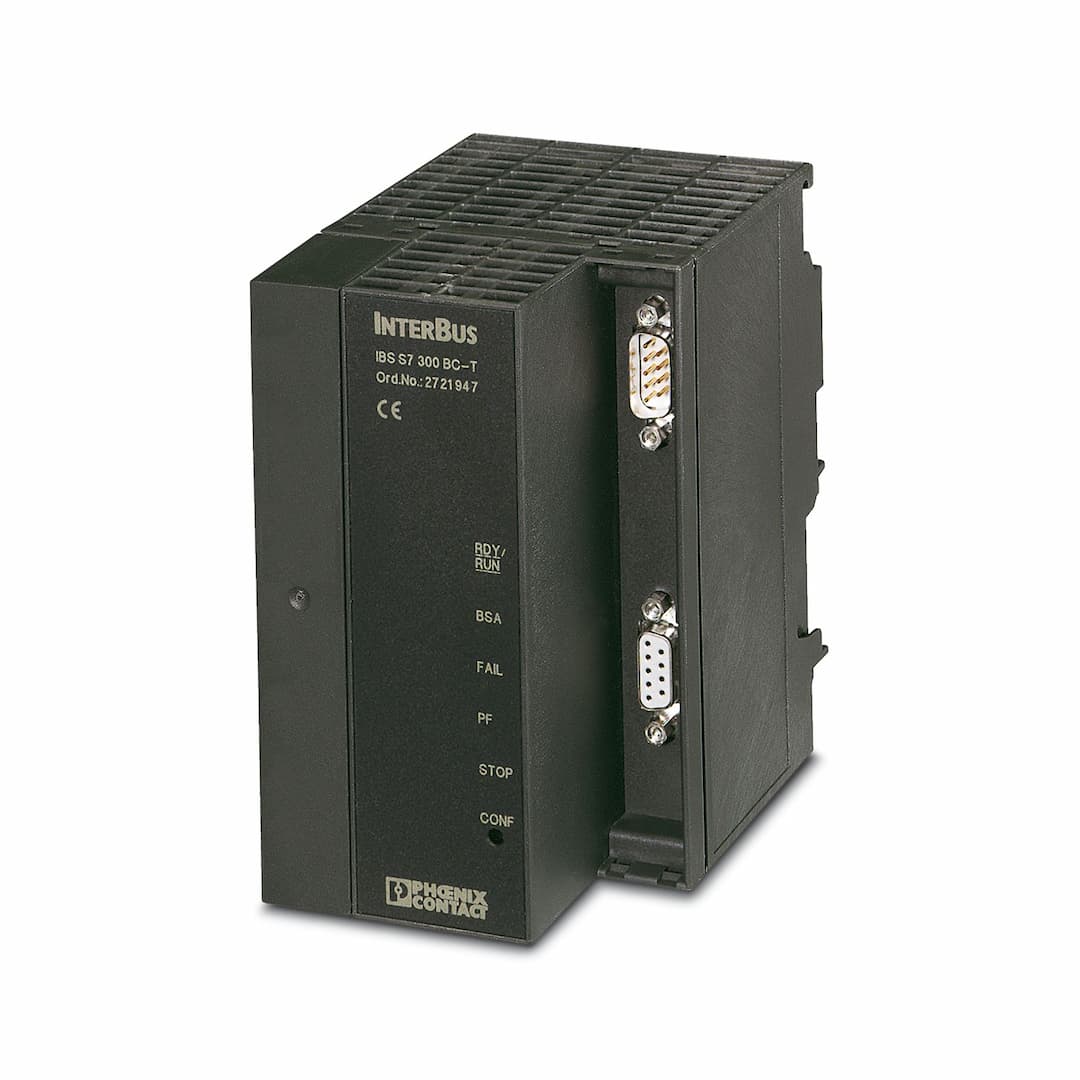

IBS S7 300 BC-T
Key Features
- 1Seamless Integration with Siemens SIMATIC S7-300: Compatible with various CPU types (312 to 318) for smooth operation.
- 2High-Performance I/O Capabilities: Supports up to 256 devices, 16 device levels, and 3840 I/O points.
- 3Easy Startup with "Plug & Play": Simplifies installation and reduces setup time.
- 4Robust Diagnostic Features: Includes diagnostic LEDs and firmware download via RS-232 for efficient troubleshooting.
- 5Compact and Space-Saving Design: Measures 80 x 125 x 110 mm, ensuring easy installation in various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | SIMATIC® S7 300 controller board | Set comprises | 2721934 IBS S7 300 B SYSKIT E
2721921 IBS S7 300 B SYSKIT |
| Format | 1 slot | Control system | SIMATIC® S7-300 controllers |
| Occupied analog address area | 16 bytes inputs and 16 bytes outputs | INTERBUS I/O data | 240 Byte |
| Number of devices with parameter channel | parameter data (PCP communication) are not supported. | Designation | RDY/RUN, PF, BSA, FAIL, STOP |
| Monitored function | INTERBUS | Optical representation | Status display via LED |
| Control system | SIMATIC® S7-300 controllers | Engineering tool | STEP 7 from version 5.x |
| Configuration tool | CMD from Version 4.0x | Diagnostics tool | DIAG+ from version 1.0x |
| Application interface | S7 I/O driver | Local diagnostics | RDY/RUN, PF, BSA, FAIL, STOP INTERBUS Status display via LED |
| Transmission medium | Copper | Maximum power dissipation for nominal condition | max. 10 W |
| Supply voltage | 24 V DC | Power supply connection | Via SIMATIC I/O bus |
| Typical current consumption | 415 mA | Connection method | SIMATIC® S7-300-I/O-Bus |
| Connection method | 9-pos. D-SUB socket strip | Transmission speed | 500 kbps / 2 Mbps |
| Connection method | RS-232-C, D-SUB male connector | Width | 80 mm |
| Height | 125 mm | Depth | 110 mm |
| Width / Height / Depth | 80 mm / 125 mm / 110 mm (1 slot) | Color | black |
| Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 60 °C (0 °C ... 40 °C (vertical installation)) |
| Ambient temperature (storage/transport) | -25 °C ... 65 °C | Permissible humidity (operation) | 30 % (up to 75 %, without condensation) |
| Permissible humidity (storage/transport) | 30 % (up to 95 %, no condensation) | Air pressure (operation) | 860 hPa ... 1080 kPa (up to 1500 m above sea level) |
| Air pressure (storage/transport) | 660 hPa ... 1080 kPa (up to 3500 m above sea level) | Mounting type | In the host system |
Specifications may be subject to change without notice
