Product Model

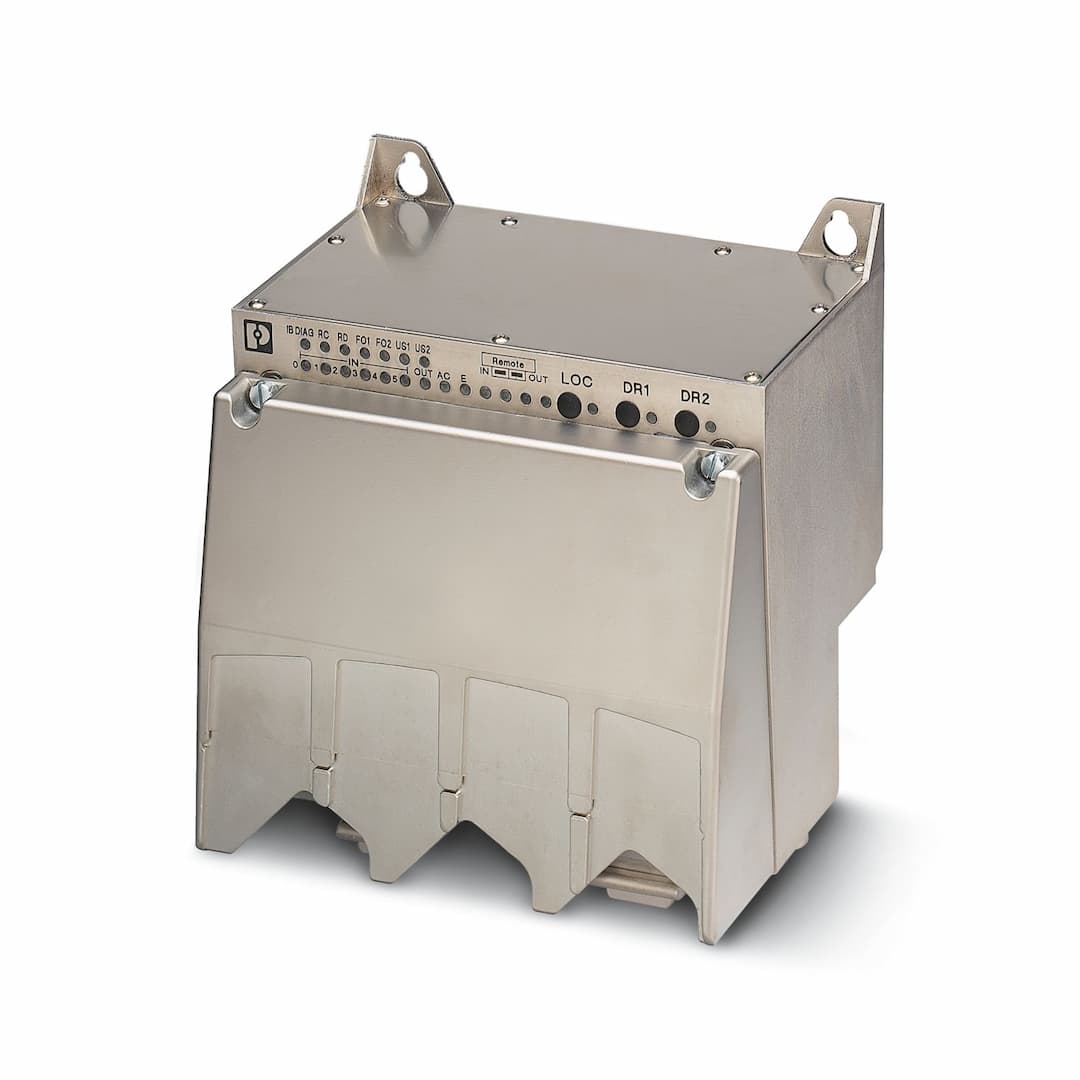

IBS RL 480 MLR R DIO6/1-LK2MBD
Key Features
- 1Rugged Metal Housing: Durable and resistant to harsh industrial environments.
- 2Comprehensive Diagnostics: Includes motor current monitoring, mains failure detection, and phase failure alerts.
- 3Fiber Optic Technology: Ensures high-speed data transmission with 2 Mbaud speed.
- 4Integrated Motor Protection Relay: Safeguards motors against overcurrent and short-circuit conditions.
- 5IP67 Protection: Designed for operation in challenging environments with high humidity and pressure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 185.1 mm | Height | 193 mm |
| Depth | 138 mm | Connection method | Fiber optics |
| Transmission speed | 2 Mbps | ID code (dec.) | 3 |
| ID code (hex) | 03 | Length code (hex) | 01 |
| Length code (dec) | 1 | Process data channel | 16 bit |
| Input address area | 2 Byte | Output address area | 2 Byte |
| Register length | 2 Byte | Number of inputs | 6 |
| Connection method | M12 connector | Connection technology | 3-, 4-conductor |
| Number of positions | 5 | Input voltage | 24 V DC (DIN EN 61131-2) |
| Input voltage range "0" signal | 0 V ... 5 V | Input voltage range "1" signal | 11 V ... 30 V |
| Filter time | 3 ms | Typical input current per channel | 5 mA (for U |
| Product type | I/O component | Product family | Ruggedline |
| Type | Block design | Diagnostics messages | Mains failure, phase failure, blown fuse Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Motor connector not plugged in, motor temperature exceeded, thermistor line short-circuited Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Sensor supply failure Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Failure of the actuator supply Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Motor overcurrent Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Output stage cannot be controlled Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Module error during self test Message to the master |
| Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 32 V DC (including ripple) |
| Ripple | 3.6 V | Connection method | M12 connector |
| Degree of protection | IP65/IP67 | Ambient temperature (operation) | 0 °C ... 55 °C |
| Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 100 % |
| Permissible humidity (storage/transport) | 95 % (non-condensing) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
| Air clearances and creepage distances | in accordance with EN 50178: 1998 | Mounting type | on mounting panel
Wall mounting |
