Product Model

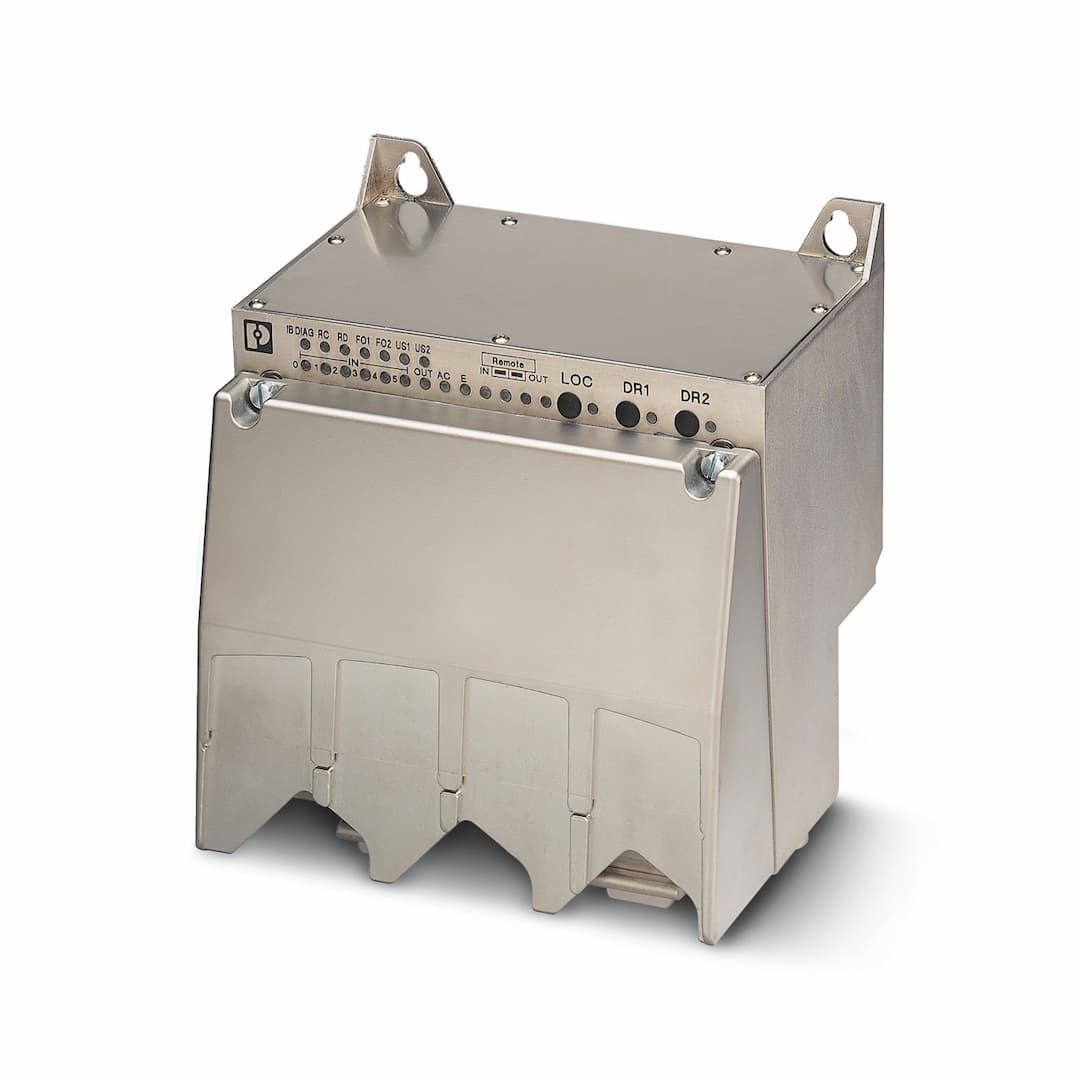

IBS RL 480 MLR R DIO6/1-LK
Key Features
- 1Utilizes 2 Mbaud fiber optic technology for high-speed data transmission.
- 2Includes an integrated motor protection relay for 220 V AC to 480 V AC, 8 A maximum.
- 3Offers detailed diagnostic functions including motor current monitoring and error messages.
- 4Features a rugged metal housing with IP67 protection for harsh environments.
- 5Equipped with M12 female connectors and POWER-COMBICON connectors for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 185.1 mm | Height | 193 mm |
| Depth | 138 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Connection method | Fiber optics | Transmission speed | 500 kbps |
| ID code (dec.) | 3 | ID code (hex) | 03 |
| Length code (hex) | 01 | Length code (dec) | 1 |
| Process data channel | 16 bit | Input address area | 2 Byte |
| Output address area | 2 Byte | Register length | 2 Byte |
| Number of inputs | 6 | Connection method | M12 connector |
| Connection technology | 3-, 4-conductor | Number of positions | 5 |
| Input voltage | 24 V DC (DIN EN 61131-2) | Input voltage range "0" signal | 0 V ... 5 V |
| Input voltage range "1" signal | 11 V ... 30 V | Filter time | 3 ms |
| Typical input current per channel | 5 mA (for U | Product type | I/O component |
| Product family | Ruggedline | Type | Block design |
| Diagnostics messages | Mains failure, phase failure, blown fuse Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Motor connector not plugged in, motor temperature exceeded, thermistor line short-circuited Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Sensor supply failure Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Failure of the actuator supply Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Motor overcurrent Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Output stage cannot be controlled Error message in diagnostic code (bus) and display by means of the E LED on the motor starter
Module error during self test Message to the master | Supply voltage | 24 V DC |
| Supply voltage range | 18.5 V DC ... 32 V DC (including ripple) | Ripple | 3.6 V |
| Connection method | M12 connector | Degree of protection | IP65/IP67 |
| Ambient temperature (operation) | 0 °C ... 55 °C | Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) |
| Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 100 % | Permissible humidity (storage/transport) | 95 % (non-condensing) |
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Air clearances and creepage distances | in accordance with EN 50178: 1998 |
| Mounting type | on mounting panel
Wall mounting |
Specifications may be subject to change without notice
