Product Model

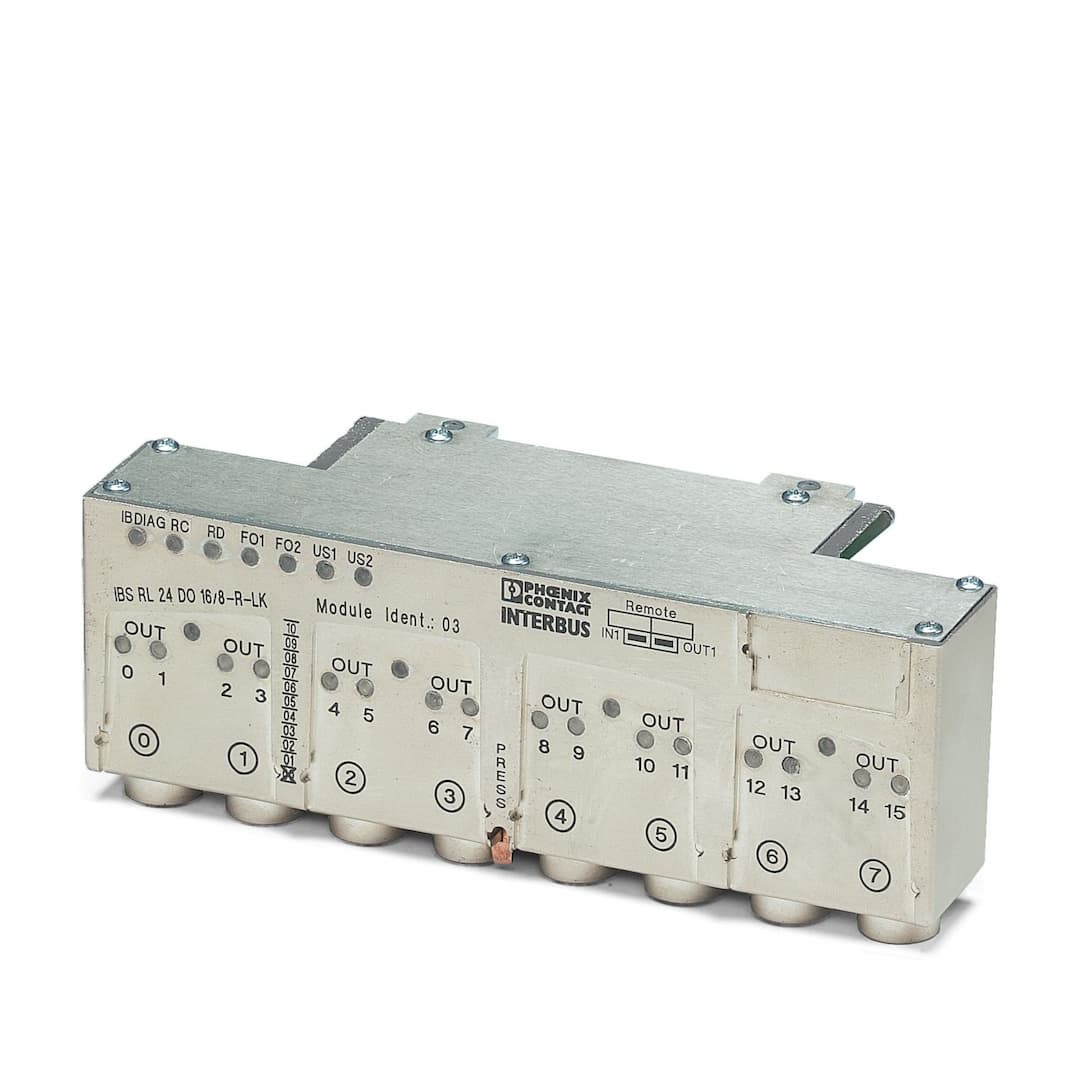

IBS RL 24 DO 16/8-R-LK-2MBD
Key Features
- 1Fiber Optic Technology: Utilizes 2 Mbaud fiber optic technology for reliable data transmission.
- 2Robust IP67 Protection: Ensures maximum availability in harsh ambient conditions with a rugged metal housing.
- 316 Digital Inputs: Supports 16 inputs that can be read at 24 V DC, ideal for various sensor connections.
- 4Comprehensive Diagnostic Functions: Equipped with advanced diagnostic features for system diagnostics.
- 5Easy Installation: Features QUICKON fast connection method for easy power supply cable connection and simple fiber optic cable assembly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 179 mm | Height | 67 mm |
| Depth | 71 mm | Note on dimensions | with bus connection plugs and mounting panel |
| Connection method | Optic fiber (polymer fiber 980/1000 µm) | Transmission speed | 2 Mbps |
| Transmission physics | FO | Output name | Digital outputs |
| Connection technology | 2-, 3-conductor | Number of outputs | 16 |
| Protective circuit | Electronic short-circuit/overload protection for each channel | Output voltage | 24 V DC |
| Maximum output current per channel | 500 mA | Maximum output current per module | 4 A |
| Nominal output voltage | 24 V DC | Output voltage when switched off | max. 500 mV |
| Output current when switched off | 0 A | Nominal load, inductive | 12 VA (1.2 H, 48 Ω) |
| Nominal load, lamp | 12 W | Nominal load, ohmic | 12 W |
| Reverse voltage resistance to short pulses | Limited protection against reverse voltages up to 3 A DC | Behavior with overload | Auto restart |
| Behavior with inductive overload | Output can be destroyed | Overcurrent shut-down | min. 2.6 A |
| Output current with ground connection interrupt when switched off | 0 A | Product type | I/O component |
| Product family | Ruggedline | Type | Block design |
| No. of channels | 16 | Supply voltage | 24 V DC |
| Supply voltage range | 18.5 V DC ... 32 V DC (including ripple) | Supply current | typ. 120 mA |
| Ripple | Max 3.6 V | Test voltage: Between bus logic and outputs | 500 V AC, 50 Hz, 1 min |
| Connection method | Fiber optic | Ambient temperature (operation) | -20 °C ... 55 °C |
| Degree of protection | IP65/IP67 | Note | Seal unused slots/connections to ensure the degree of protection. |
| Air pressure (operation) | 800 hPa ... 1060 hPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 700 hPa ... 1060 hPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 100 % |
| Permissible humidity (storage/transport) | 95 % (non-condensing) | Mounting type | Wall mounting |
Specifications may be subject to change without notice
