Product Model

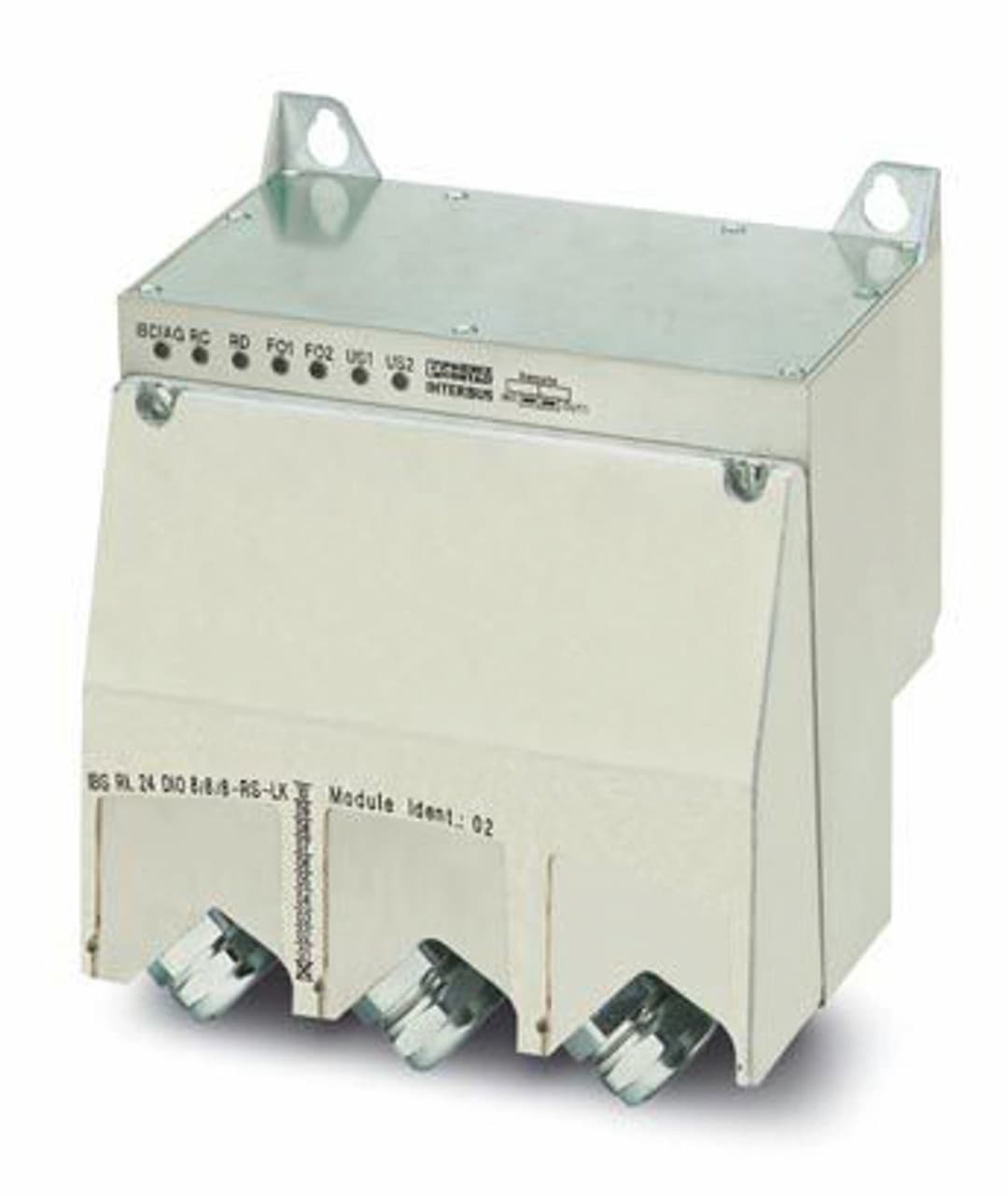

IBS RL 24 DIO 8/8/8 RS-LK-2MBD
Key Features
- 1Durable and resistant to harsh industrial conditions.
- 2Advanced diagnostics for system reliability.
- 3Fast data transmission with 2 Mbps speed.
- 4Eight relay outputs for versatile control applications.
- 5Ensures high protection against dust and water ingress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 185 mm | Height | 193 mm |
| Depth | 138 mm | Note on dimensions | with bus connection plugs and mounting panel |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Connection method | Optic fiber (polymer fiber 980/1000 µm) |
| Transmission speed | 2 Mbps | Transmission physics | FO |
| ID code (dec.) | 3 | ID code (hex) | 03 |
| Length code (hex) | 09 | Length code (dec) | 9 |
| Process data channel | 8 bit | Input address area | 1 Byte |
| Output address area | 1 Byte | Register length | 1 Byte |
| Input name | Digital inputs | Number of inputs | 8 |
| Connection technology | 2-, 3-, 4-conductor | Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 11 V DC ... 30 V DC | Typical input current per channel | 5.7 mA |
| Delay at signal change from 0 to 1 | 2.2 ms | Delay at signal change from 1 to 0 | 3.3 ms |
| Protective circuit | Electronic short-circuit/overload protection | Output name | Relay output |
| Number of outputs | 8 | Maximum operating frequency with ohmic nominal load | 10 Hz |
| Product type | I/O component | Product family | Ruggedline |
| Type | Block design | No. of channels | 16 |
| Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 32 V DC (including ripple) |
| Supply current | typ. 120 mA (plus sensor current) | Ripple | Max 3.6 V |
| Connection method | Fiber optic | Ambient temperature (operation) | -20 °C ... 55 °C |
| Degree of protection | IP65/IP67 | Note | Seal unused slots/connections to ensure the degree of protection. |
| Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 kPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 100 % |
| Permissible humidity (storage/transport) | 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | Wall mounting |
Specifications may be subject to change without notice
