Product Model

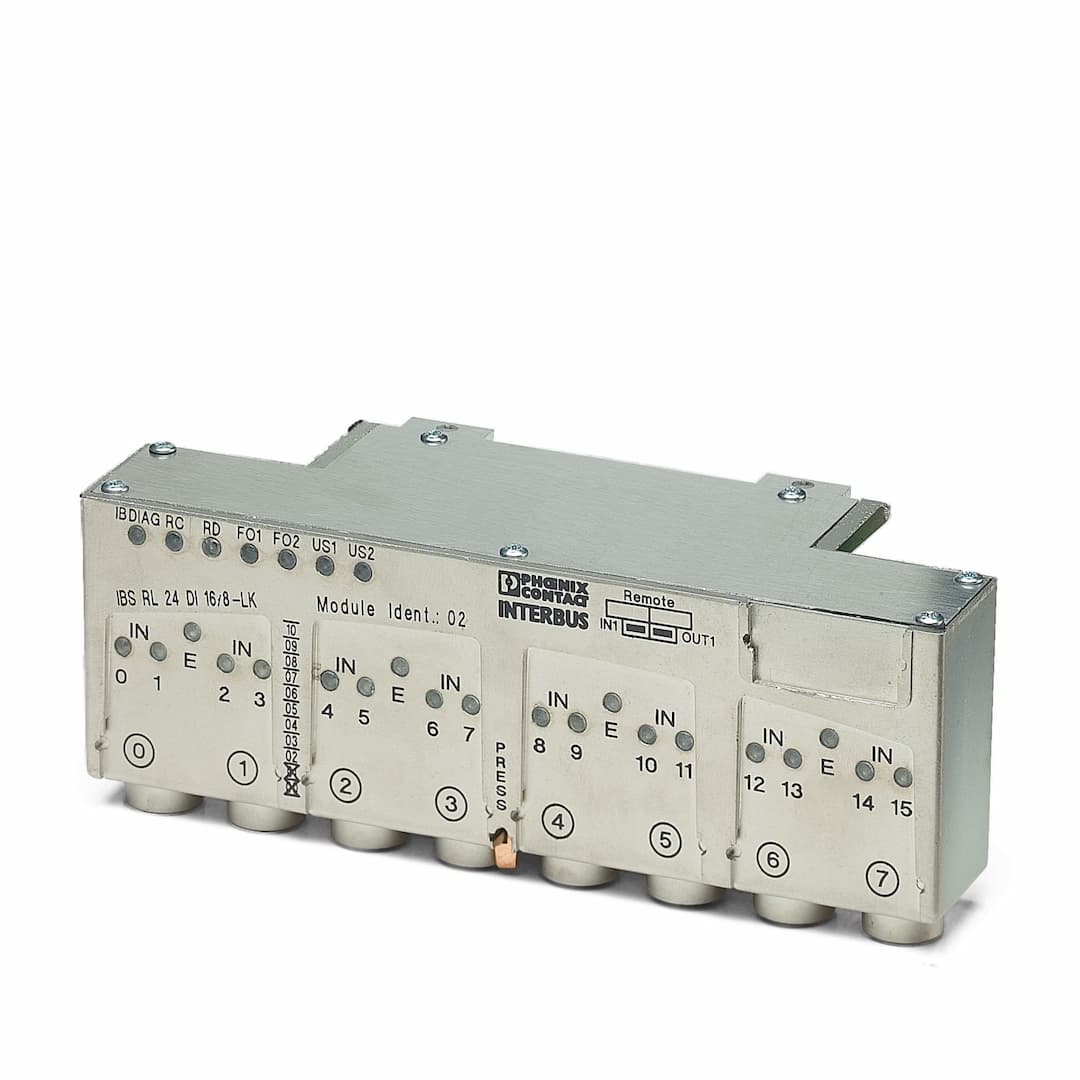

IBS RL 24 DI 16/8-T
Key Features
- 1Durable and resistant to harsh ambient conditions.
- 2Advanced diagnostics for maximum system availability.
- 3Easy and secure connection for sensors and actuators.
- 4Sealed against dust and water, ensuring reliable operation in demanding environments.
- 5500 kbps transmission speed for efficient data transfer.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 179 mm | Height | 67 mm |
| Depth | 71 mm | Note on dimensions | with bus connection plugs and mounting panel |
| Connection method | IP67 RL connector | Transmission speed | 500 kbps |
| Transmission physics | Copper | Input name | Digital inputs |
| Number of inputs | 16 | Connection technology | 2-, 3-, 4-conductor |
| Input voltage range "0" signal | 0 V ... 5 V | Input voltage range "1" signal | 11 V ... 32 V |
| Typical input current per channel | 50 mA | Protective circuit | Electronic short-circuit/overload protection for each group |
| Product type | I/O component | Product family | Ruggedline |
| Type | Block design | No. of channels | 16 |
| Supply voltage | 24 V DC | Supply voltage range | 18.5 V ... 32 V (including ripple) |
| Ripple | Max 3.6 V | Connection method | M12 connector |
| Ambient temperature (operation) | 0 °C ... 55 °C | Degree of protection | IP65/IP67 |
| Note | Seal unused slots/connections to ensure the degree of protection. | Air pressure (operation) | 860 hPa ... 1080 hPa (up to 1500 m above sea level) |
| Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 100 % | Permissible humidity (storage/transport) | 95 % (non-condensing) |
| Mounting type | Wall mounting |
