Product Model

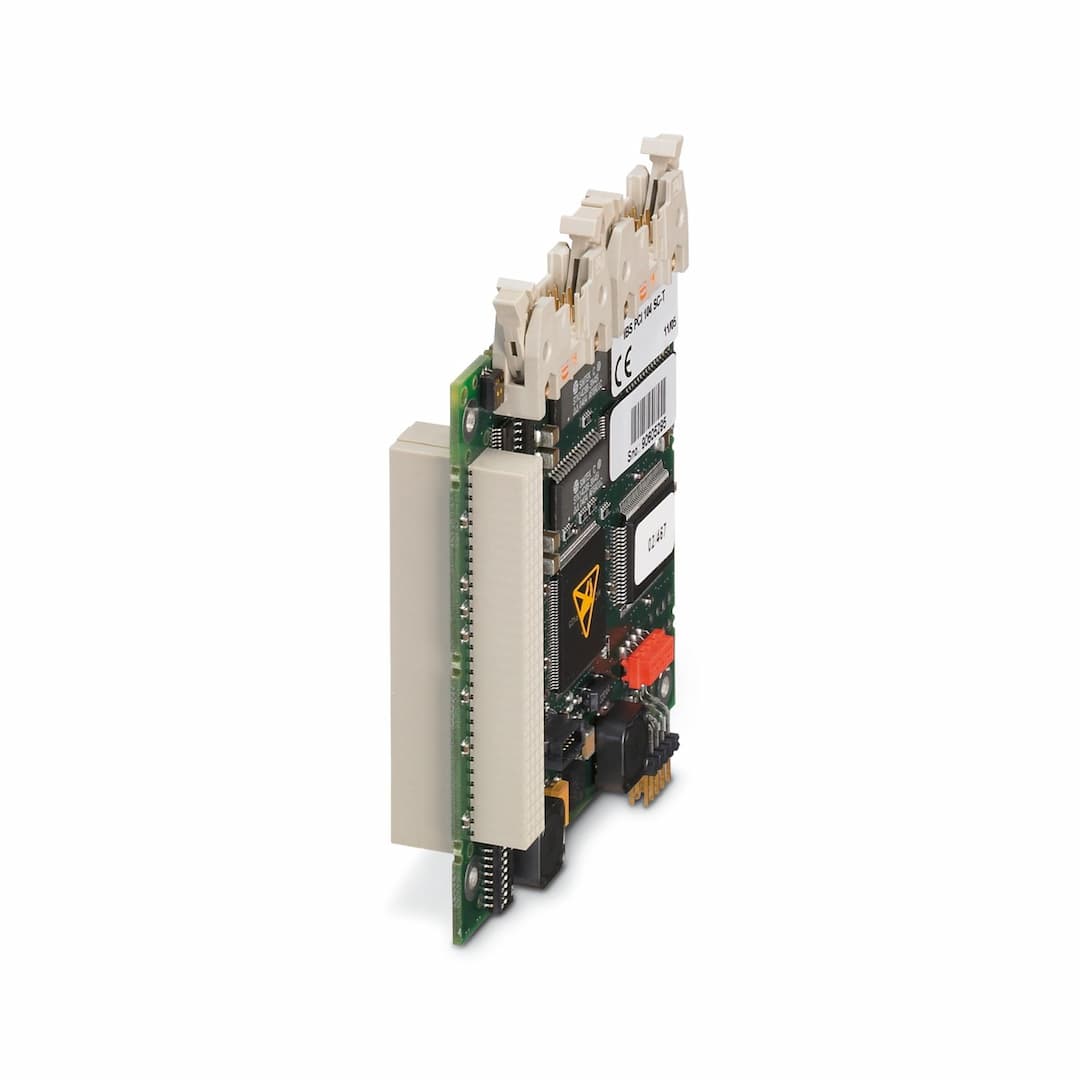

IBS PCI 104 SC-T
Key Features
- 1Direct Integration into OPC-based Visualization Systems: Seamlessly integrate with OPC-based visualization systems via OPC server.
- 2External 24 V DC Power Supply: Powered by an external 24 V DC power supply for reliable operation.
- 3Parameterization and Diagnostics with Diag+: Perform parameterization and diagnostics using Diag+ from version 1.0x.
- 4Access to High-Level Language Applications via HFI: Access high-level language applications via HFI for advanced control.
- 5Compatible with Multiple Operating Systems: Compatible with Windows NT, Windows 2000, Windows XP, and Venturcom RTX 5.x.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | PC controller board | Format | PCI-104 |
| Control system | IBM-compatible PCs with PCI-104 slot | Operating system | Windows NT
Windows 2000
Windows XP
Venturcom RTX 5.x
Further types on request |
| Number of devices with parameter channel | max. 126 | Designation | MREADY |
| Monitored function | INTERBUS operating status | Optical representation | Status display via LED |
| Control system | IBM-compatible PCs with PCI-104 slot | Configuration tool | CMD from version 4.62 |
| Diagnostics tool | DIAG+ from version 1.0x | Application interface | HFI
OPC
DDI |
| Driver | Windows NT
Windows 2000
Windows XP
Venturcom RTX 5.x
Further types on request | Local diagnostics | MREADY INTERBUS operating status Status display via LED |
| Transmission medium | Copper | Maximum power dissipation for nominal condition | max. 3.5 W |
| Supply voltage | 5 V DC | Supply voltage range | ± 5 % (including ripple) |
| Power supply connection | Via PCI-104 bus | Typical current consumption | 0.7 A |
| Interrupts | 1 IRQ, PnP | Bus system | RS-422 |
| Number of interfaces | 1 | Connection method | 10-pos. DIL pin strip |
| Transmission speed | 500 kbps / 2 Mbps (can be switched) | Bus system | RS-232 |
| Number of interfaces | 1 | Connection method | 10-pos. DIL pin strip |
| Transmission speed | 500 kbps / 2 Mbps500 kbps 2 Mbps (can be switched) | Connection method | PCI-104 bus, 32 bits, 33 MHz, 5 V |
| Width | 90 mm | Height | 96 mm |
| Width / Height / Depth | 90 mm / 96 mm / | Degree of protection | IP20 (Must be installed in a device with IP20) |
| Ambient temperature (operation) | 0 °C ... 55 °C (acc. to EN 60204-1) | Ambient temperature (storage/transport) | -25 °C ... 75 °C (acc. to EN 60204-1) |
| Permissible humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) | Shock | 2g, criterion A acc. to IEC 60068-2-6 |
| Air pressure (operation) | 860 hPa ... 1080 hPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3000 m above sea level) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD)EN 61000-4-2/IEC 61000-4-2 Criterion B, ±6 kV contact discharge, ±8 kV air discharge
Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electromagnetic fieldsEN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Fast transients (burst)EN 61000-4-4/IEC 61000-4-4 Criterion B, Signal/data lines: 2 kV
Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Transient overvoltage (surge)EN 61000-4-5/IEC 61000-4-5 Criterion B, Signal/data lines: 1 kV
Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Conducted interferenceEN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V
Noise emission test in accordance with EN 61000-6-4/IEC 61000-6-4 Class A |
| Mounting type | In the host system |
Specifications may be subject to change without notice
