Product Model

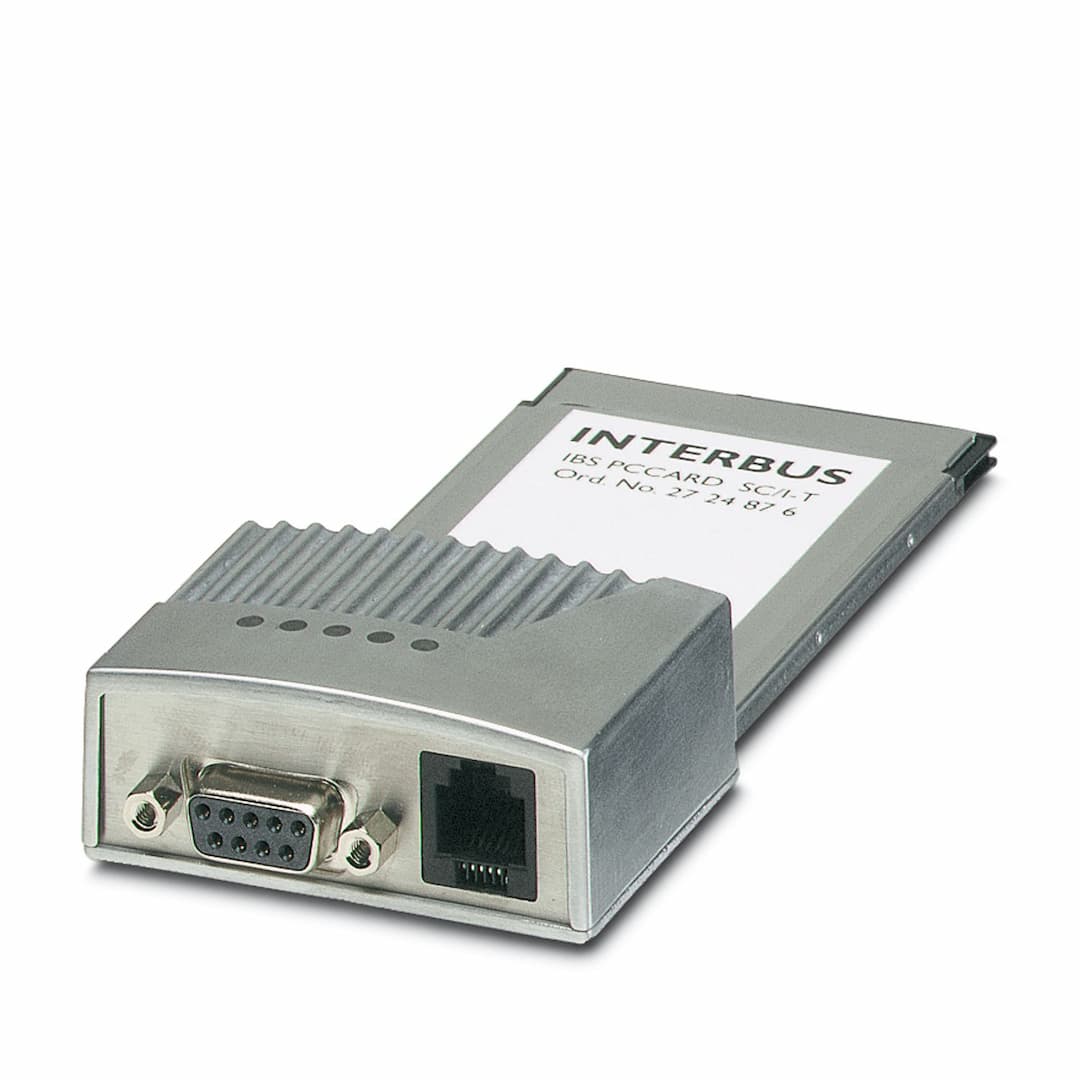

IBS PCCARD SC/I-T
Key Features
- 1Interbus Compatibility: Compatible with Interbus protocol IEC 61158 for robust industrial communication.
- 2PC Card Format: Available in PC card format for easy integration into various PC systems.
- 3Electrical Isolation: Ensures electrical isolation for safe operation in harsh industrial environments.
- 4High Transmission Speed: Supports transmission speeds of up to 500 kbps for efficient data transfer.
- 5Factory Warranty: Includes a factory warranty for added peace of mind and long-term reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | PC controller board | Type | PC card |
| Set comprises | 2729211 IBS PCCARD SC SYSKIT
2729224 IBS PCCARD SC SYSKIT E | Format | PCMCIA Type 2 |
| Control system | IBM-compatible PCs with PCMCIA slot | Operating system | Windows NT
Windows 2000
Windows XP
Further types on request |
| I/O | 2 bytes I/O, PnP | Number of devices with parameter channel | max. 62 |
| Function block | Diagnostics
IO exchange
PCP
NV-RAM
directs I/Os | Designation | HF, PF, BSA, FAIL, RUN/RDY |
| Monitored function | INTERBUS | Optical representation | Status display via LED |
| Control system | IBM-compatible PCs with PCMCIA slot | Configuration tool | CMD from version 4.5x |
| Diagnostics tool | DIAG+ from version 1.0x | Application interface | HLI
OPC
DDI |
| Driver | Windows NT
Windows 2000
Windows XP
Further types on request | Local diagnostics | HF, PF, BSA, FAIL, RUN/RDY INTERBUS Status display via LED |
| Transmission medium | Copper | Maximum power dissipation for nominal condition | max. 1.75 W |
| Supply voltage | 5 V DC | Supply voltage range | ± 5 % (including ripple) |
| Power supply connection | Via PCMCIA interface | Typical current consumption | 0.35 A |
| Interrupts | 1 IRQ, PnP | Connection method | 9-pos. D-SUB female connector, with electrical isolation |
| Connection method | RS-232-C, 6-pos. RJACK 11 (Western plug) | Connection method | IBM-compatible PCs with PCMCIA slot, from 68 pin, from 386 SX processor |
| Width | 53 mm | Depth | 125 mm |
| Width / Height / Depth | 125 mm / 53 mm / | Degree of protection | IP00 |
| Ambient temperature (operation) | -25 °C ... 75 °C (acc. to EN 60204-1) | Ambient temperature (storage/transport) | 0 °C ... 75 °C (acc. to EN 60204-1) |
| Permissible humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) | Air pressure (operation) | 860 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3000 m above sea level) | Mounting type | In the host system |
Specifications may be subject to change without notice
