Product Model

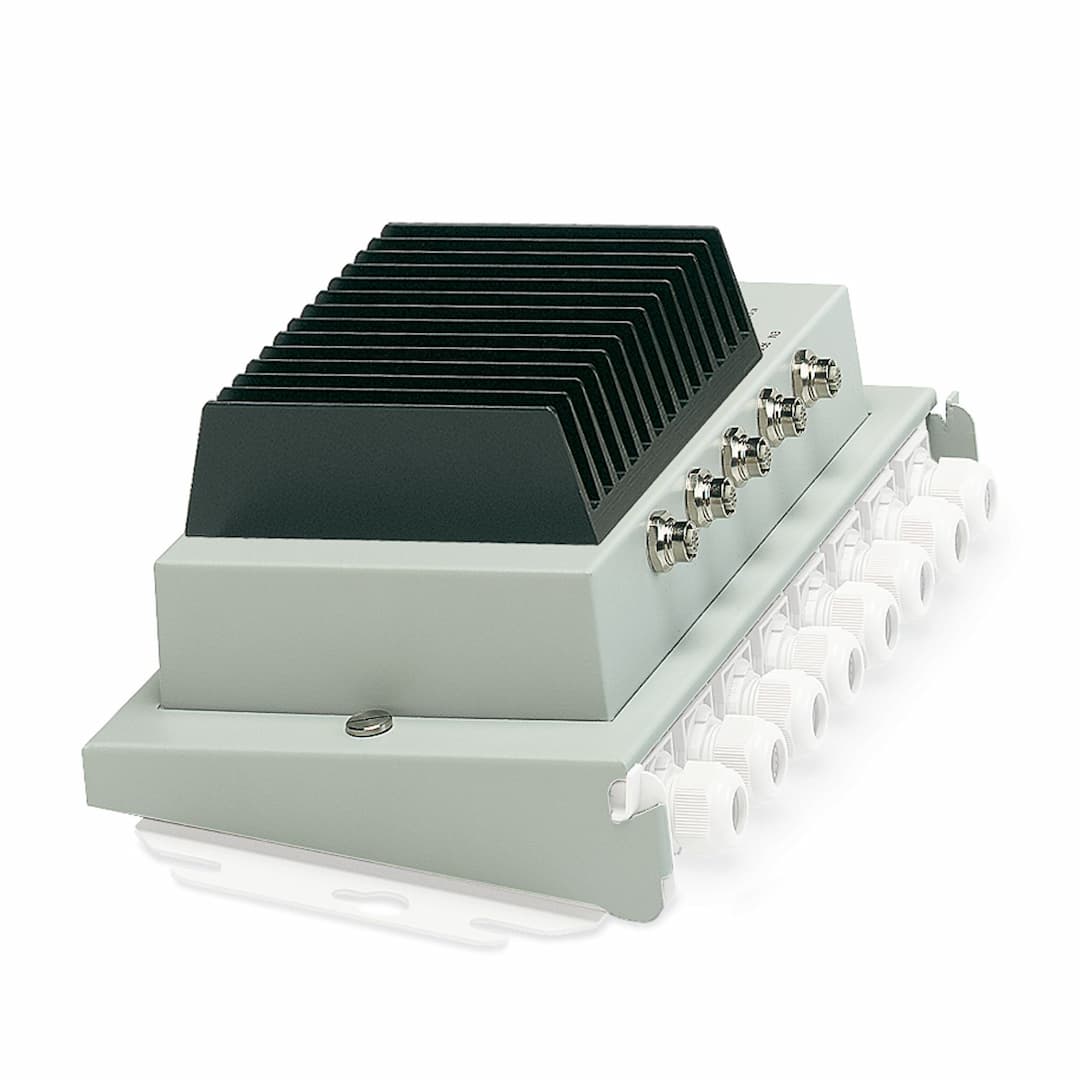

IBS IP 400 ME-VFD 3A FO
Key Features
- 1Control motor speed efficiently with this versatile drive.
- 2Ensure reliable operation in harsh environments with robust IP54 protection.
- 3Easily integrate with digital systems using 4 digital inputs.
- 4Save space with the drive's compact design, suitable for wall mounting.
- 5Enjoy peace of mind with a comprehensive 24-month warranty.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Type | Stand-Alone |
| Connection method | POWER-COMBICON | Designation | Terminal strip X13 and X15 |
| Number of positions | 2 | Permissible conductor cross section | 1.5 mm² ... 4 mm² |
| Pg screw connection | Pg16R | Supply voltage | 24 V DC (U |
| Supply voltage range | 20 V DC ... 30 V DC (including ripple) | Supply current | typ. 300 mA (at U |
| Ripple | Permissible ripple 3.6 V | Max. current carrying capacity | 16 A |
| Derating | above 20 °C: 0.3 A/K | Number of inputs | 4 |
| Connection method | M12 connector (A-coded) | Connection technology | 3-, 4-conductor |
| Number of positions | 5 | Input voltage | 24 V DC (U |
| Input voltage range "0" signal | -30 V ... 5 V (binary "0") | Input voltage range "1" signal | 13 V ... 30 V (binary "1") |
| Filter time | 3 ms | Typical input current per channel | approx. 5 mA (for U |
| Connection method | F-SMA connector | Transmission physics | Polymer fiber |
| Width | 355 mm | Height | 180 mm |
| Depth | 100 mm | Drill hole spacing | 386 mm |
| Note on dimensions | Module electronics without lower part | Drill hole spacing | 386 mm |
| Degree of protection | IP54 | Ambient temperature (operation) | -15 °C ... 40 °C (non-condensing) |
| Note | Notes on operation Line protection for the network supply line, max. 20 A. Observe derating of the POWER-COMBICON connector
Notes on operation Permitted network type TN network, TT network, IT network available on request | Air pressure (operation) | 86 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 86 kPa ... 106 kPa (up to 2000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 4 % ... 100 % (non-condensing) | Permissible humidity (storage/transport) | 75 % (slight temporary condensation may sometimes appear on the housing) |
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Noise emission | Test of emitted interference, housing, in acc. with EN 50081-2:1993 EN 55011:1991 class A |
| Air clearances and creepage distances | in accordance with EN 50178: 1998 | Mounting type | Wall mounting |
Specifications may be subject to change without notice
