Product Model

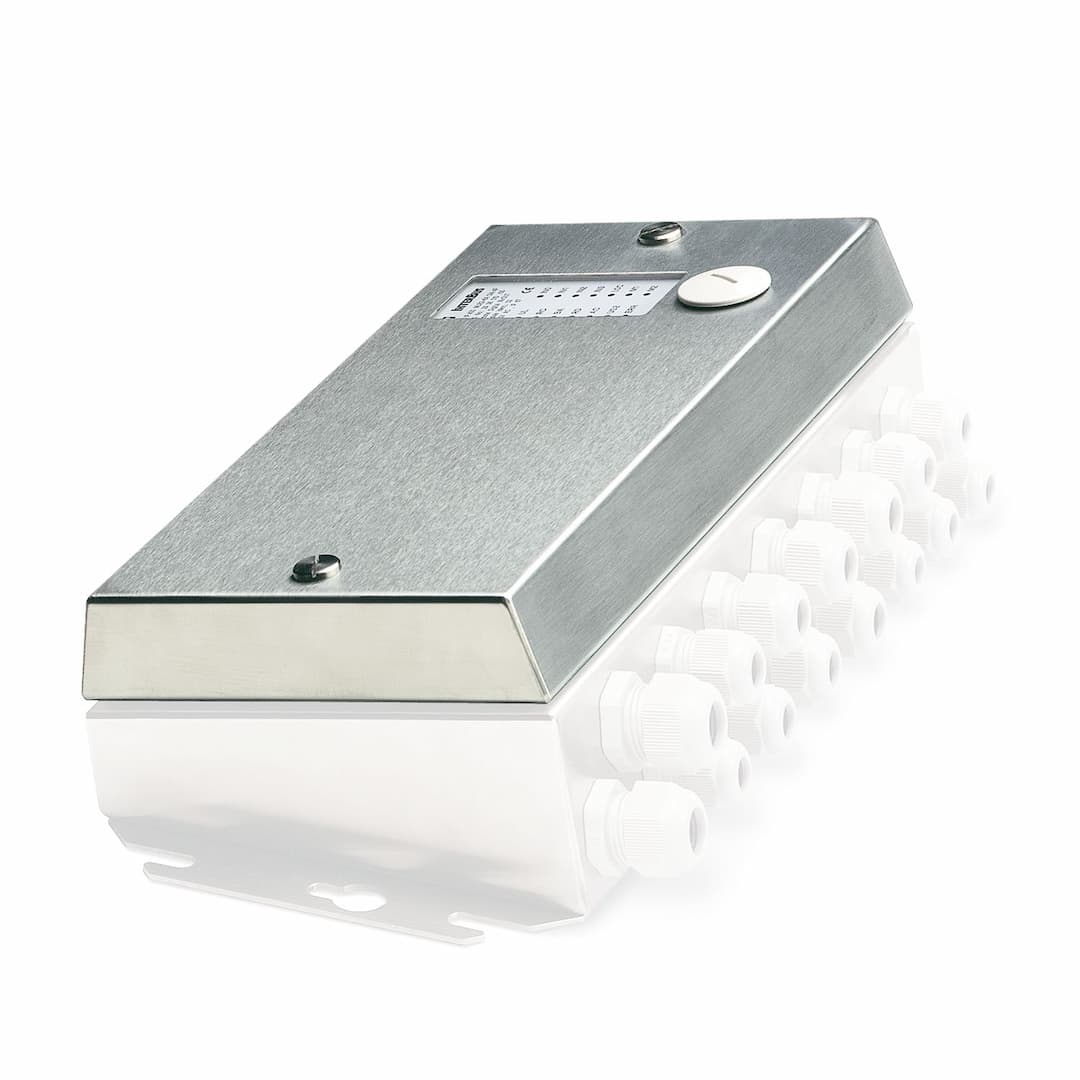

IBS IP 400 ME-ELR R-3A DI4F
Key Features
- 1Easy installation with pluggable connections.
- 2Removable module electronics for flexibility.
- 3Power networking: 400 V AC / 20 A.
- 4Advanced diagnostics for real-time monitoring.
- 5IP54 degree of protection for robust operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | Stand-Alone | Connection method | POWER-COMBICON |
| Designation | Terminal strip X13 and X15 | Number of positions | 2 |
| Pg screw connection | Pg16R | Supply voltage | 24 V DC (U |
| Supply voltage range | 20 V DC ... 30 V DC (including ripple) | Supply current | typ. 0.17 A (at U |
| Ripple | Permissible ripple 3.6 V | Max. current carrying capacity | 16 A |
| Derating | from 30 °C 0.1A/K | Number of inputs | 4 |
| Connection method | M12 connector (A-coded) | Connection technology | Sockets X33 to X36 |
| Number of positions | 5 | Input voltage | 24 V DC (U |
| Input voltage range "0" signal | -30 V ... 5 V (binary "0") | Input voltage range "1" signal | 13 V ... 30 V (binary "1") |
| Filter time | 3 ms | Typical input current per channel | approx. 5 mA (for U |
| Connection method | M12 connector, B-coded | Designation connection point | M12 connector; X30 (IN) and X31 (OUT) |
| Number of positions | 5 | Permissible conductor cross section | 0.25 mm² ... 0.75 mm² (flexible) |
| Width | 355 mm | Height | 180 mm |
| Depth | 100 mm | Drill hole spacing | 386 mm |
| Note on dimensions | Module electronics without lower part | Drill hole spacing | 386 mm |
| Degree of protection | IP54 | Ambient temperature (operation) | -20 °C ... 55 °C (non-condensing) |
| Note | Notes on operation Line protection for the network supply line, max. 20 A. Observe derating of the POWER-COMBICON connector
Notes on operation Permitted network type TN network, TT network, IT network available on request | Air pressure (operation) | 86 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 86 kPa ... 106 kPa (up to 2000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Permissible humidity (operation) | 4 % ... 100 % (non-condensing) | Permissible humidity (storage/transport) | 75 % (slight temporary condensation may sometimes appear on the housing) |
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting |
Specifications may be subject to change without notice
