Product Model

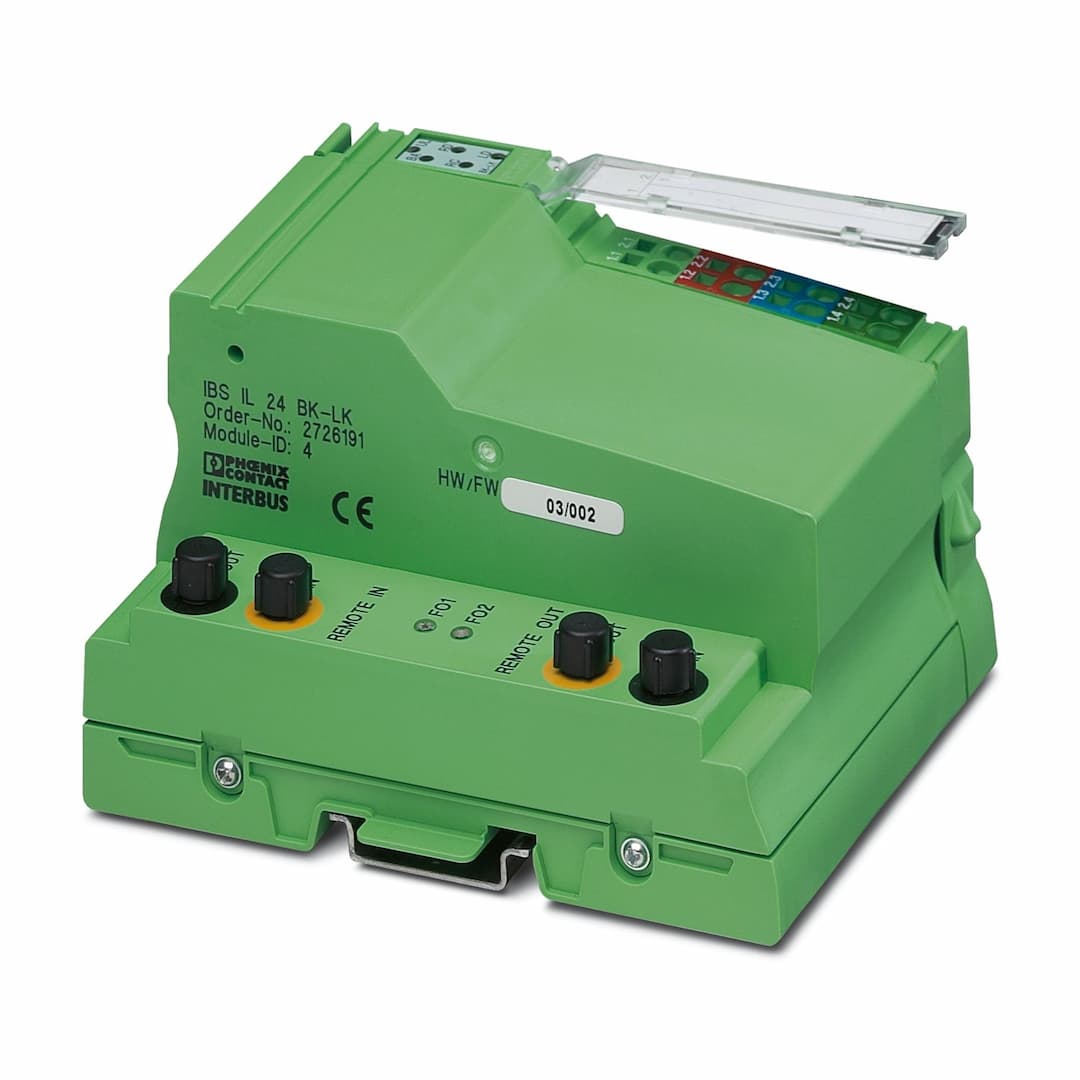

IBS IL 24 BK-LK-2MBD-PAC
Key Features
- 1High-Speed Fiber Optic Technology: Connects remote buses efficiently with 2 Mbps transmission speed.
- 2Durable Design: IP20 degree of protection ensures reliable operation in harsh environments.
- 3Easy Installation: Compatible with DIN rail mounting and includes inline connectors for straightforward setup.
- 4Optical Path Diagnostics: Enhances system reliability with diagnostic capabilities for the optical path.
- 5Comprehensive System Limits: Supports up to 63 local bus devices and 15 remote bus branch terminals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 85 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on application | Only for industrial use |
| Number of interfaces | 2 | Connection method | F-SMA connector |
| Transmission speed | 2 Mbps | Transmission physics | FO |
| Number of interfaces | 1 | Connection method | Inline data jumper |
| Transmission speed | 2 Mbps | Number of local bus devices that can be connected | 63 |
| Number of devices with parameter channel | 62 | Number of supported branch terminals with remote bus branch | max. 15 |
| ID code (dec.) | 04 | ID code (hex) | 04 |
| Length code (hex) | 00 | Length code (dec) | 00 |
| Process data channel | 0 bit | Input address area | 0 Byte |
| Output address area | 0 Byte | Register length | 0 bit |
| Product type | I/O component | Product family | Inline |
| Type | modular | Scope of delivery | including Inline connector and labeling field |
| Maximum power dissipation for nominal condition | 3 W | Protective circuit | Reverse polarity protection |
| Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks) | Supply voltage | 7.5 V DC ±5 % |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.09 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.09 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.09 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.09 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % |
| Permissible humidity (storage/transport) | 75 % ... 85 % | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
