Product Model

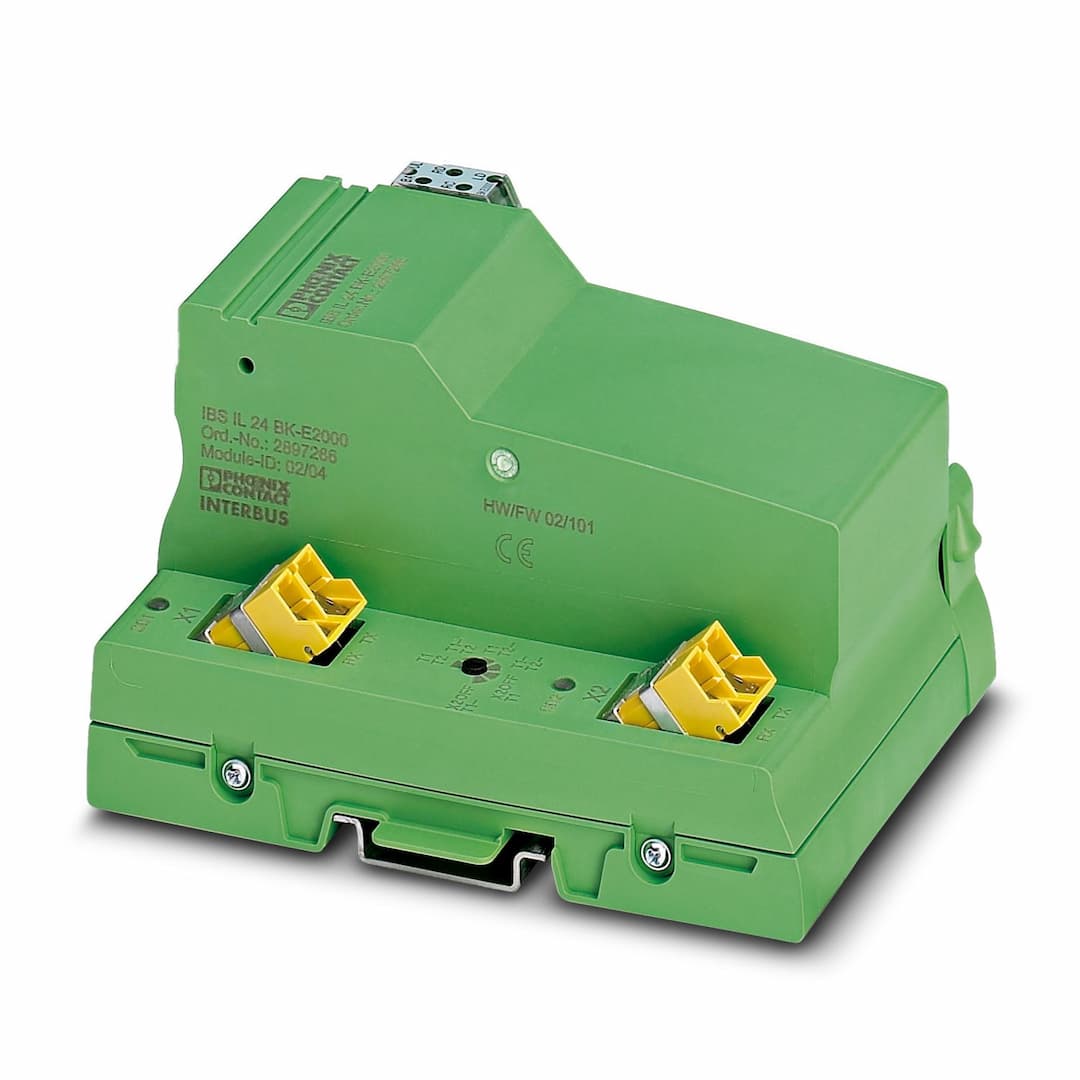

IBS IL 24 BK-E2000
Key Features
- 1Connects remote bus and local bus seamlessly.
- 2Provides stable power for connected analog modules.
- 3Efficient data transmission in the local bus.
- 4Ensures high degree of protection against environmental factors.
- 5Supports optical path diagnostics for enhanced system reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular | Number of devices with parameter channel | 63 |
| Number of supported branch terminals with remote bus branch | max. 15 | ID code (dec.) | 02 |
| ID code (hex) | 02 | Length code (hex) | 01 |
| Length code (dec) | 01 | Process data channel | 16 bit |
| Input address area | 2 Byte | Output address area | 0 Byte |
| Register length | 2 Byte | Protective circuit | Reverse polarity protection |
| Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 960 mA (with max. number of connected I/O terminal blocks)
typ. 60 mA (without connected Inline I/O terminals) | Supply voltage | 7.5 V DC ±5 % |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Test voltage: 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional ground | 1000 V DC, 1 min | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Connection method | Inline data jumper |
| No. of channels | 2 | Connection method | Female |
| Connection method | 8-pos. Inline connector | Width | 90 mm |
| Height | 119.8 mm | Depth | 71.5 mm |
| Color | green | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % | Permissible humidity (storage/transport) | 10 % ... 95 % |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
