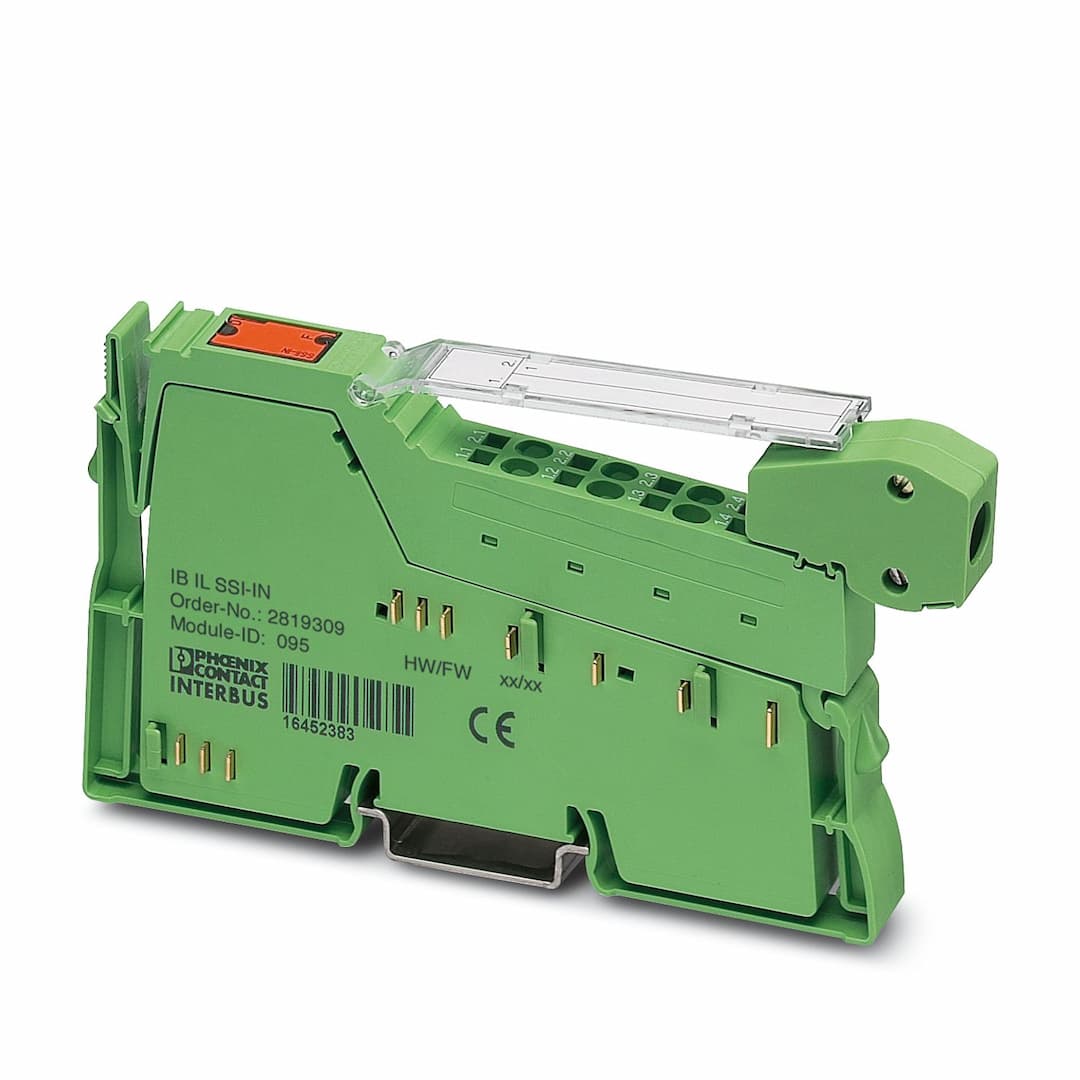

Product Model
IB IL SSI-IN-PAC
Key Features
- 1High-resolution encoding: Supports up to 25-bit resolution for precise position measurement.
- 2Robust error-checking: Independently verifies parity to ensure accurate data processing.
- 3Versatile interface: Compatible with single-turn, multi-turn, and length measurement systems.
- 4Easy configuration: Utilizes two process data words for simplified integration into existing systems.
- 5Reliable performance: Designed for sophisticated industrial applications requiring precise motion control and position monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12.2 mm | Height | 135 mm |
| Depth | 71.5 mm | Note on application | Only for industrial use |
| CCCex note | Use in potentially explosive areas is not permitted in China. | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | Transmission physics | Copper |
| ID code (dec.) | 95 | ID code (hex) | 5F |
| Length code (hex) | 02 | Length code (dec) | 02 |
| Process data channel | 32 bit | Input address area | 4 Byte |
| Output address area | 4 Byte | Register length | 4 Byte |
| Required parameter data | 6 Byte | Required configuration data | 5 Byte |
| Number of inputs | 1 | Adjustable resolution | 25 bit (maximum) |
| Transmission frequency | 100 kHz
200 kHz
400 kHz
800 kHz
1 MHz | Connection technology | Spring-cage connection |
| Number of outputs | 1 | Product type | I/O component |
| Product family | Inline | Type | modular |
| Article revision | 09 | Maximum power dissipation for nominal condition | 0.55 W |
| Drawing encoder supply voltage | Main circuit U | Encoder supply voltage | 5 V DC |
| Encoder supply current | max. 250 mA | I/O voltage | 24 V AC |
| Max. current consumption | 35 mA (typical) | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 28 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 66 mA |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
| Mounting type | DIN rail mounting |
