Product Model

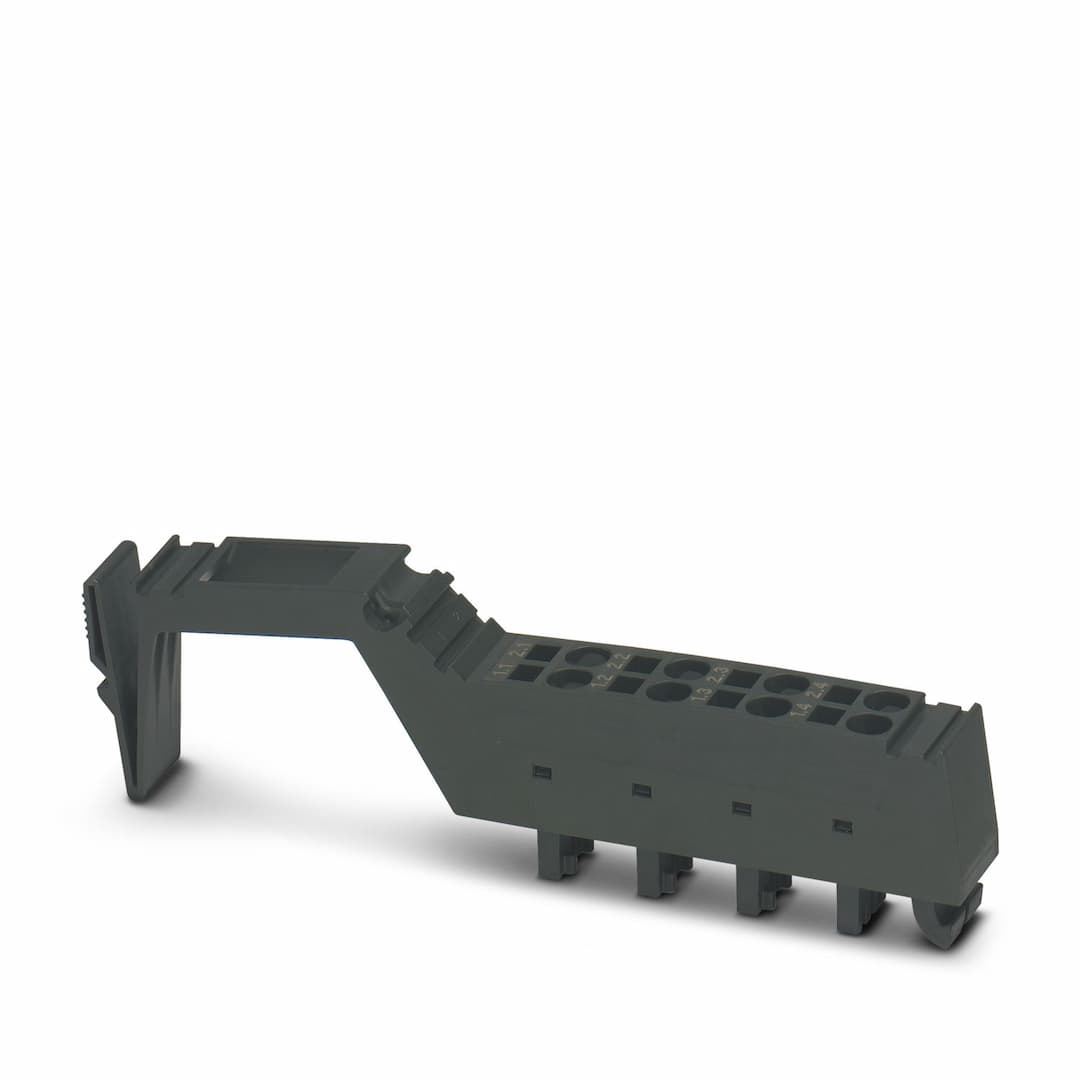

IB IL SCN-PWR IN
Key Features
- 1Reliable and durable inline connector for industrial power applications.
- 2Meets EU RoHS and China RoHS standards for environmental safety.
- 3Dimensions: 111.2 mm height, 41 mm depth, and 12 mm width.
- 4Supports conductor cross sections from 0.08 mm² to 1.5 mm² (AWG 28 to 16).
- 5Approved by UL and cUL for safety and performance assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Plug | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Width | 12.2 mm |
| Height | 111.2 mm | Depth | 41 mm |
Specifications may be subject to change without notice
