Product Model

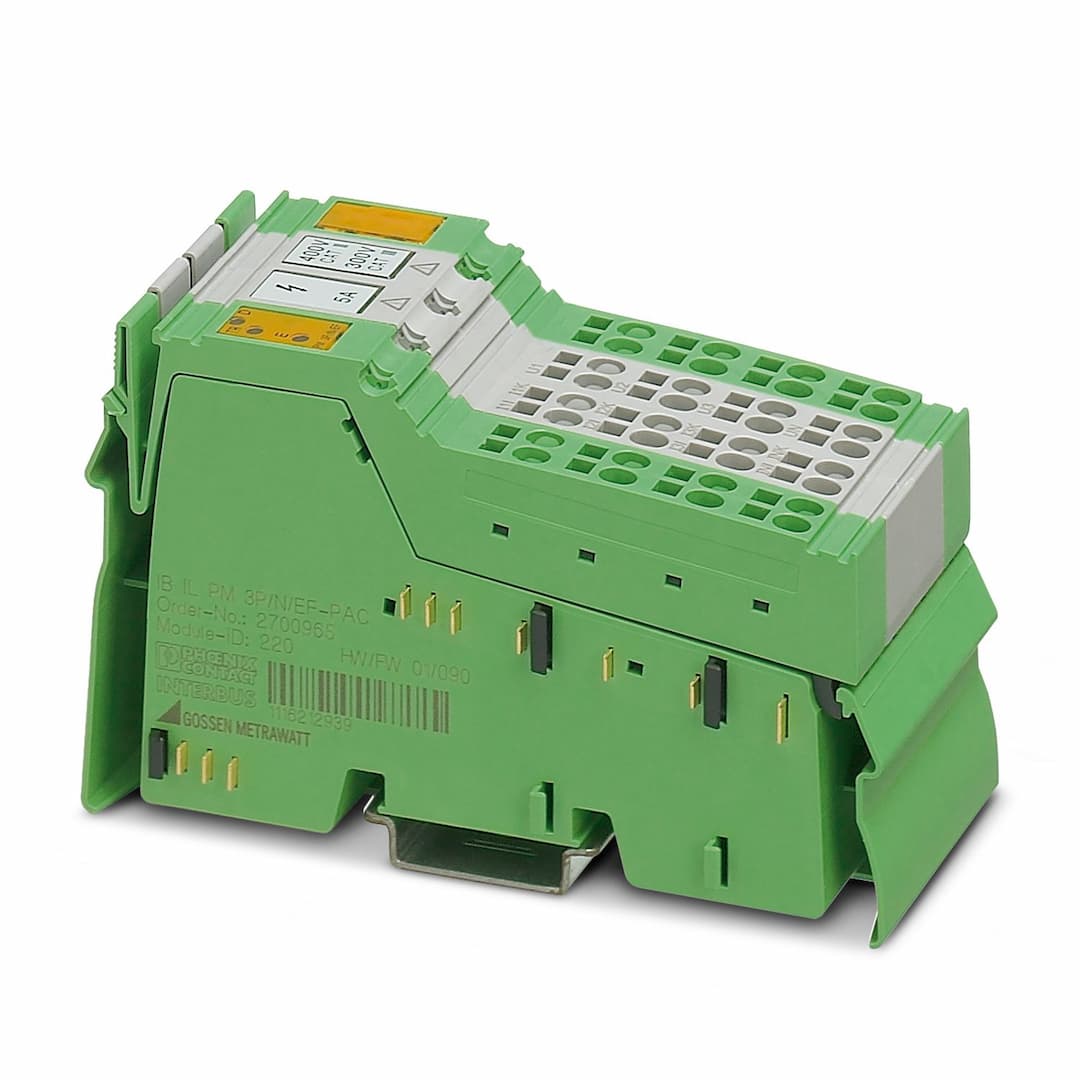

IB IL PM 3P/N/EF-PAC
Key Features
- 1Direct measurement of AC currents up to 5A, including neutral conductor currents.
- 2Supports phase conductor voltages up to 690V AC for phase/phase connections.
- 3Freely definable measurement intervals for precise data collection.
- 4Includes harmonics analysis and determination of maximum values.
- 5Equipped with an operating hours counter and power meter for comprehensive monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | Number of interfaces | 2 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| ID code (dec.) | 220 | ID code (hex) | DC |
| Length code (hex) | 0C | Length code (dec) | 12 |
| Process data channel | 192 bit | Input address area | 24 Byte |
| Output address area | 24 Byte | Register length | 28 Byte |
| Required parameter data | 29 Byte | Required configuration data | 5 Byte |
| Product type | I/O component | Product family | Inline |
| Type | modular | Operating mode | Process data mode with 12 words, PCP with 2 words |
| Diagnostics messages | Two line conductors confused I/O error message
One line conductor not connected or wire break at line conductor I/O error message
Measuring circuit fault I/O error message
Value range for transformer factors exceeded I/O error message
Value range for other settings exceeded I/O error message | Article revision | 08 |
| Overvoltage category | III (up to 300 V), II (up to 400 V) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
| Maximum power dissipation for nominal condition | 2.7 W | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | typ. 130 mA | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | II (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
