Product Model

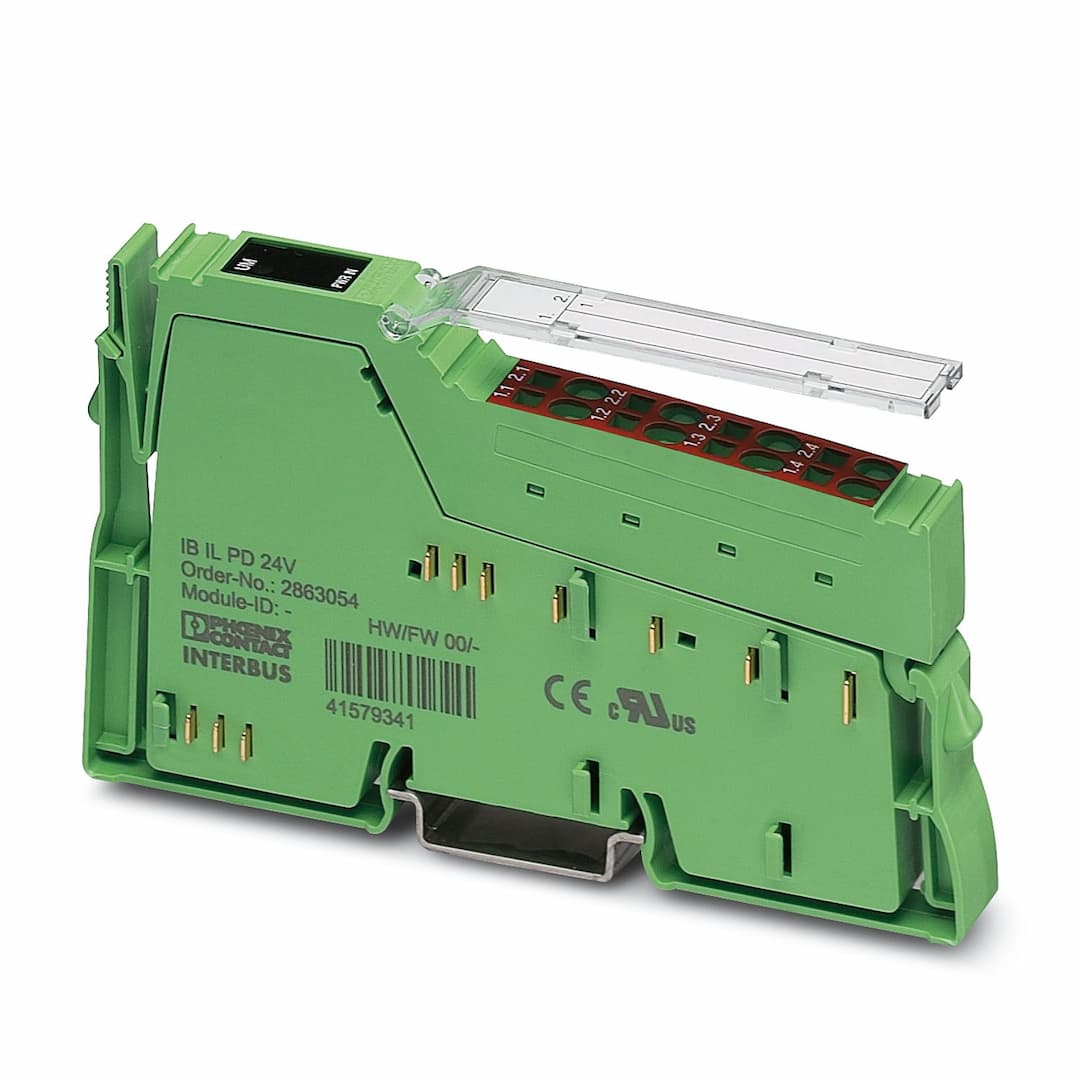

IB IL PD 24V-PAC
Key Features
- 1Supplies 24 V DC from the segment circuit (US) for sensors.
- 2Built with a durable design, suitable for Inline stations with a maximum current consumption of 8 A.
- 3Includes labeling field and connector for easy installation and customization.
- 4Compatible with I/O voltage range of 19.2 V DC to 30 V DC, ensuring reliable operation.
- 5Meets international standards including China RoHS and various approvals from DNV GL, LR, BV, ABS, and EAC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12.2 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on application | Only for industrial use |
| Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps |
| Connection method | Inline potential distributor | ID code (dec.) | none |
| ID code (hex) | none | Register length | 0 bit |
| Required parameter data | 0 Byte | Required configuration data | 0 Byte |
| Product type | I/O component | Product family | Inline |
| Type | modular | Article revision | 04 |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Maximum power dissipation for nominal condition | 0 W |
| Test section | 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | I/O voltage | 24 V DC |
| I/O voltage range | 19.2 V DC ... 30 V DC | Max. current consumption | 8 A |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 8 A | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % |
| Permissible humidity (storage/transport) | 75 % ... 85 % | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
