Product Model

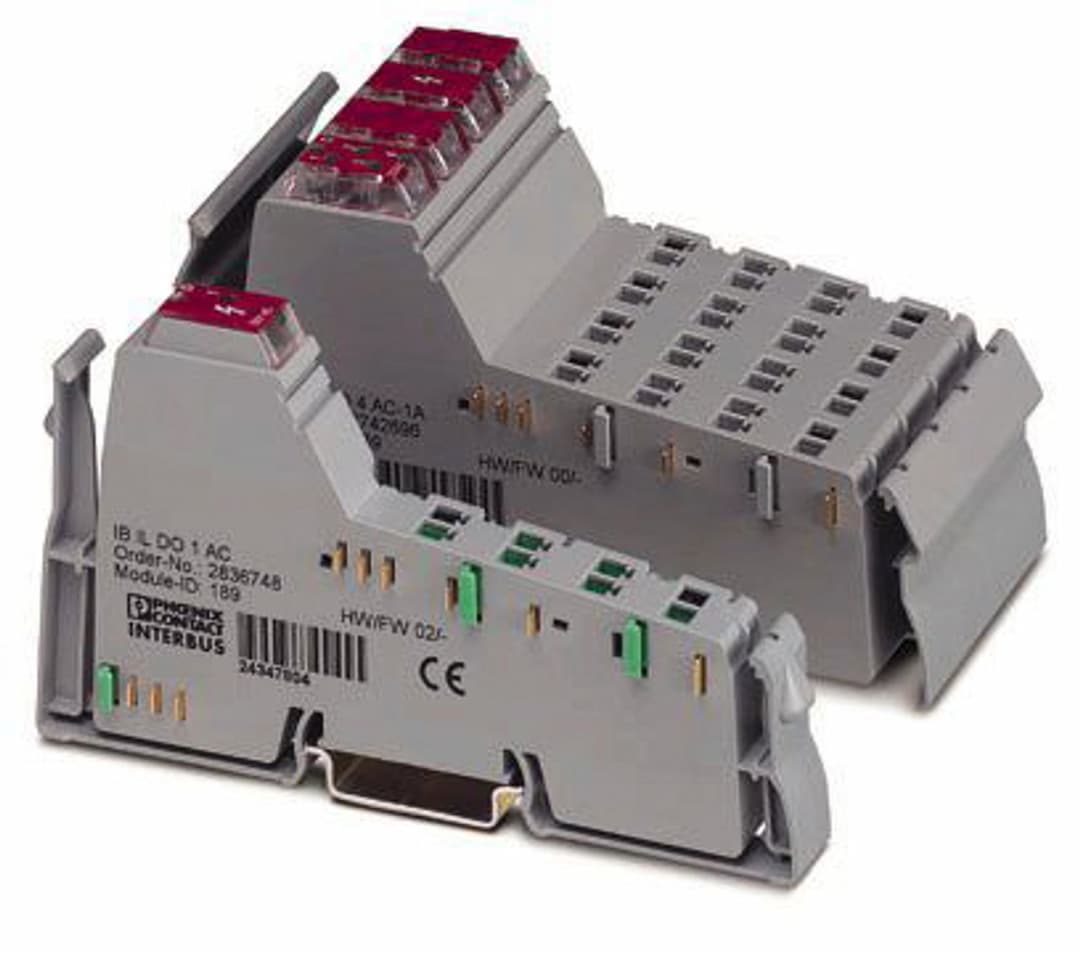

IB IL DO 4 AC-1A
Key Features
- 1Output digital signals in the AC voltage range with four reliable digital outputs.
- 2Connect actuators using the efficient 3-wire technology for seamless integration.
- 3Monitor terminal status with diagnostic and status indicators for easy troubleshooting.
- 4Handle a total current of 4 A with each output capable of 1 A, ensuring robust performance.
- 5Meets EMC class A standards and has IP20 degree of protection for safe operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Color | gray | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | ID code (dec.) | 189 |
| ID code (hex) | BD | Length code (hex) | 41 |
| Length code (dec) | 65 | Process data channel | 4 bit |
| Input address area | 0 Byte | Output address area | 4 bit |
| Register length | 4 bit | Required parameter data | 3 Byte |
| Output name | Digital outputs | Connection method | Spring-cage connection |
| Connection technology | 3-conductor | Number of outputs | 4 |
| Protective circuit | Overload protection, short-circuit protection of outputs | Maximum output current per channel | 1 A |
| Maximum output current per module | 4 A | Nominal output voltage | 230 V AC |
| Output voltage range | 12 V AC ... 253 V AC (via voltage jumper) | Product type | I/O component |
| Product family | Inline | Type | modular |
| No. of channels | 4 | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 45 mA | Supply voltage | 230 V AC (via voltage jumper) |
| Current draw | max. 4 A | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics) / I/O area | 2500 V AC, 50 Hz, 1 min |
| Test voltage: Routine test | 1200 V AC, 50 Hz, 1 min | Test voltage: I/O area / FE | 500 V AC, 50 Hz, 1 min |
| Test voltage: Output / Phase | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
| Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
