Product Model

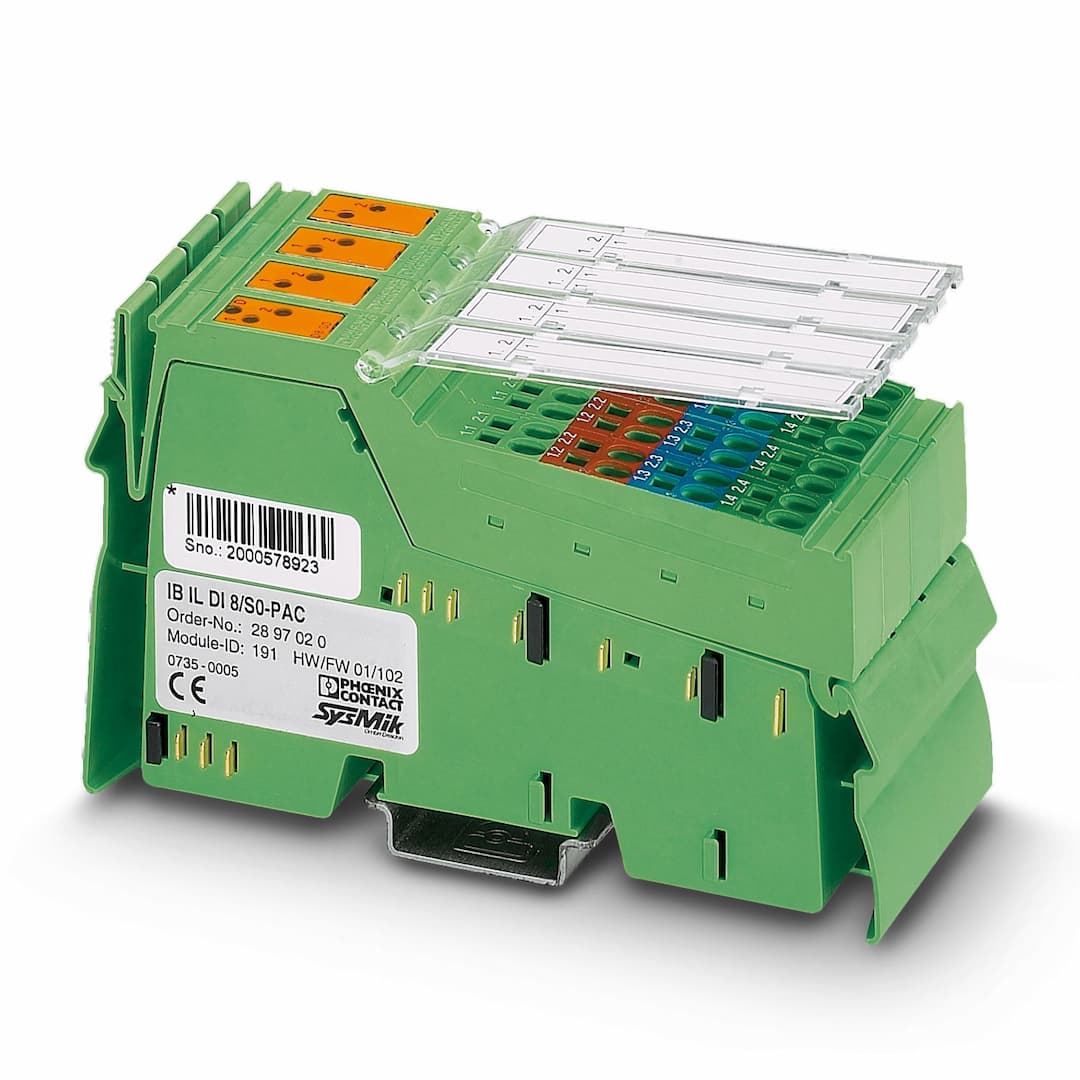

IB IL DI 8/S0-PAC
Key Features
- 1Compliant with DIN 43864 and IEC 62053-31: Ensures compatibility with standard interfaces.
- 28 Digital Inputs: Supports multiple counting pulses from impulse encoders.
- 3Robust Design: Built to withstand industrial environments with dimensions of 119.8 x 48.8 x 71.5 mm.
- 4Wide Operating Temperature Range: Operates between -25°C to +55°C, suitable for various industrial settings.
- 5DIN Rail Mounting: Easy installation on DIN rail for efficient use in inline stations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| ID code (dec.) | 191 | ID code (hex) | BF |
| Length code (hex) | 02 | Length code (dec) | 02 |
| Process data channel | 32 bit | Input address area | 4 Byte |
| Output address area | 4 Byte | Register length | 4 Byte |
| Required parameter data | 1 Byte | Required configuration data | 5 Byte |
| Input name | Digital inputs | Description of the input | IEC 62053-31 and DIN 43864 |
| Number of inputs | 8 (S0 counter inputs) | Connection method | Spring-cage connection |
| Connection technology | 4-conductor | Input voltage | 24 V DC |
| Nominal input voltage U | 24 V DC | Nominal input current at U | 9 mA |
| Sensor current per channel | max. 250 mA | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connectors and marking fields | No. of channels | 8 |
| Operating mode | Process data mode with two words | Article revision | 03 |
| Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 55 mA |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 2 A (incl. sensor supply)
max. 70 mA (without sensor supply, inputs active) | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
