Product Model

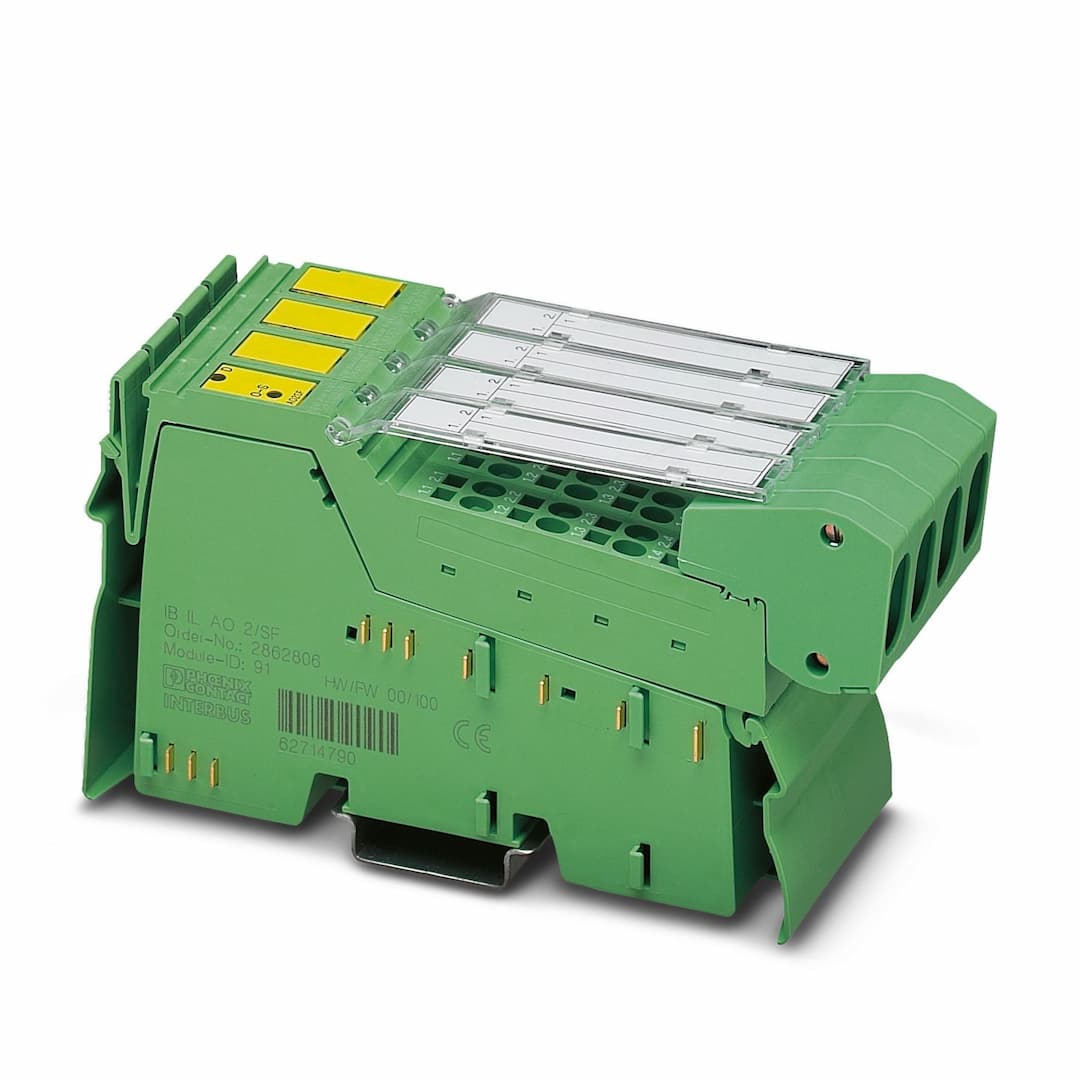

IB IL AO 4/8/U/BP-XC-PAC
Key Features
- 116-bit resolution for precise measurement and control.
- 2Short update time of less than 1 ms for real-time performance.
- 3Supports both positive and negative voltage ranges for versatile applications.
- 4IP20 protection and robust construction for reliable operation in harsh environments.
- 5DIN rail mounting and 2-conductor connection technology for straightforward integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 136.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| Transmission physics | Copper | ID code (dec.) | 223 |
| ID code (hex) | DF | Length code (hex) | 05 |
| Length code (dec) | 05 | Process data channel | 80 bit |
| Input address area | 10 Byte | Output address area | 10 Byte |
| Register length | 96 bit | Required parameter data | 27 Byte |
| Output name | Analog outputs | Connection technology | 2-conductor |
| Note regarding the connection technology | shielded | Number of outputs | 8 |
| D/A converter resolution | 16 bit | Protective circuit | Transient protection of outputs |
| Data formats | IB IL, IB ST, IB RT, standardized representation, S7 compatible | Representation of output values | 16 bits (15 bits + sign) |
| Process data update | < 2 ms (depends on operating mode) | Voltage output signal | 0 V ... 10 V
-10 V ... 10 V
0 V ... 5 V
-5 V ... 5 V |
| Load/output load voltage output | > 2 kΩ 0.05 % | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connectors and marking fields | Special properties | Extreme conditions version |
| Article revision | 02 | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C (Standard)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
