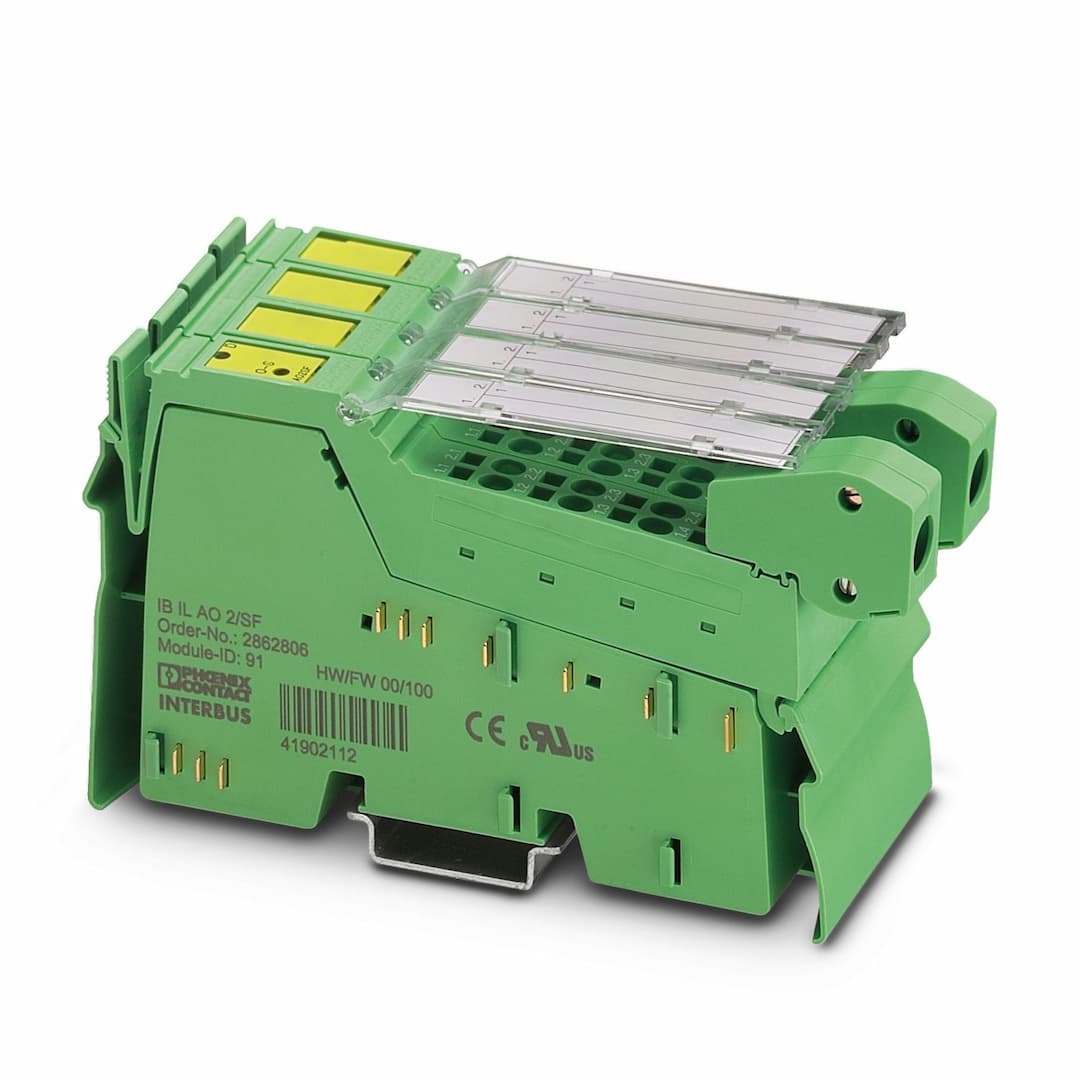

Product Model
IB IL AO 2/SF-PAC
Key Features
- 1Compact dimensions: 135 x 48.8 x 71.5 mm.
- 2Ideal for analog actuators with 24 V dc supply voltage.
- 3Outputs 4-20 mA current signals with high precision.
- 4DIN rail mounting for easy installation.
- 5Short-circuit-proof and bipolar outputs ensure reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 135 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | CCCex note | Use in potentially explosive areas is not permitted in China. |
| Number of interfaces | 2 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | ID code (dec.) | 91 |
| ID code (hex) | 5B | Length code (hex) | 02 |
| Length code (dec) | 02 | Process data channel | 32 bit |
| Input address area | 4 Byte | Output address area | 4 Byte |
| Register length | 32 bit | Required parameter data | 6 Byte |
| Required configuration data | 5 Byte | Output name | Analog outputs |
| Connection technology | 2-conductor | Note regarding the connection technology | shielded |
| Number of outputs | 2 | D/A converter resolution | 16 bit |
| Protective circuit | Transient protection of outputs
Short-circuit protection of outputs | Representation of output values | 16 bits (15 bits + sign) |
| DAC resolution | 16 bit | Process data update | < 1 ms |
| Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA | Load/output load current output | ≤ 500 Ω |
| Voltage output signal | 0 V ... 10 V | Load/output load voltage output | ≥ 2 kΩ |
| Product type | I/O component | Product family | Inline |
| Type | modular | Scope of delivery | including Inline connectors and marking fields |
| Operating mode | Process data mode with two words | Diagnostics messages | I/O supply failure I/O error message sent to the bus coupler |
| Article revision | 08 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
| Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Maximum power dissipation for nominal condition | 2.6 W |
| Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 45 mA
typ. 36 mA |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 95 mA
typ. 75 mA | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
