Product Model

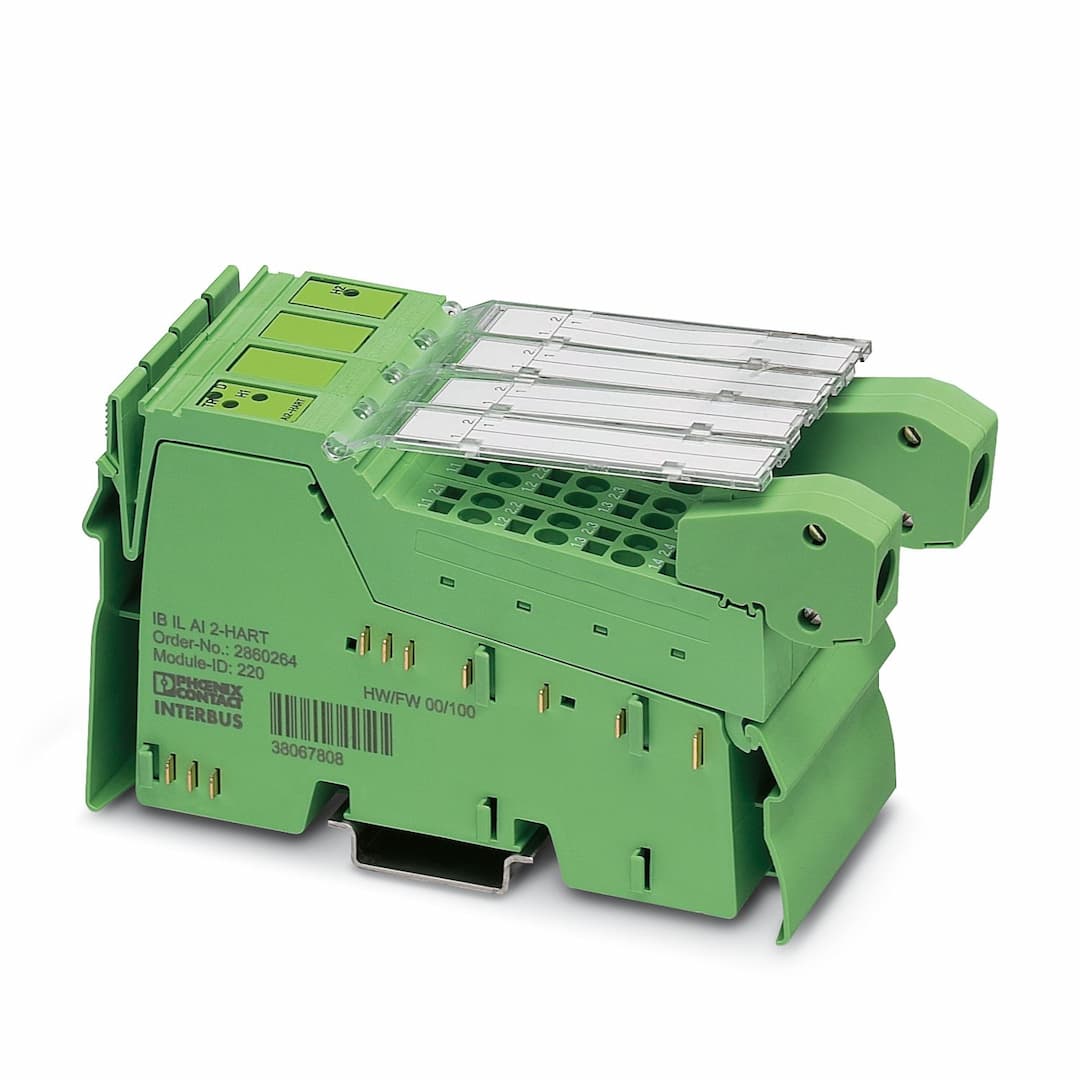

IB IL AI 2-HART-PAC
Key Features
- 1Dual Analog Inputs: Connect current signals with two differential analog inputs for precise process information.
- 2HART Protocol Support: Communicate with smart field devices using the standardized HART protocol for bidirectional communication.
- 316-bit Resolution: Achieve high accuracy with a 16-bit analog/digital converter, offering resolutions dependent on the representation format and measuring range.
- 4Multi-Connection Capabilities: Support point-to-point and multi-drop connections for flexible system integration.
- 5Explosive Area Compliance: Approved for use in potentially explosive areas, ensuring safe operation in critical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 135 mm |
| Depth | 71.5 mm | Note on application | Only for industrial use |
| Number of interfaces | 2 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | Transmission physics | Copper |
| ID code (dec.) | 220 | ID code (hex) | DC |
| Length code (hex) | 02 | Length code (dec) | 02 |
| Process data channel | 32 bit | Input address area | 4 Byte |
| Output address area | 4 Byte | Register length | 64 bit |
| Required parameter data | 9 Byte | Required configuration data | 5 Byte |
| Input name | Analog inputs | Description of the input | Differential inputs, current |
| Number of inputs | 2 | A/D conversion time | approx. 10 µs (bus-synchronous) |
| A/D converter resolution | 16 bit | Connection method | Inline shield connector |
| Connection technology | 2-conductor | Note regarding the connection technology | shielded |
| Current input signal | 4 mA ... 20 mA
0 mA ... 25 mA | Input resistance current input | 250 Ω |
| Data formats | IB IL, standardized representation, PIO | Limit frequency (3 dB) | 25 Hz |
| Common mode voltage range signal - ground | 40 V (Between current input and functional ground) | Measuring principle | Successive approximation |
| Measured value resolution | 16 bits (15 bits + sign bit) | Measured value representation | 16 bit two's complement |
| Protective circuit | Surge protection; Suppressor diode | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connectors and marking fields | Operating mode | Process data operation with 2 words, PCP with 2 words |
| Special properties | HART functionality
HART protocol transmission | Diagnostics messages | Failure of the internal I/O supply yes
I/O error Error message in the process data
User error Error message in the process data |
| Article revision | 10 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
| Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Maximum power dissipation for nominal condition | 2.7 W |
| Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 110 mA
typ. 95 mA |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 150 mA
typ. 50 mA | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: I/O/functional ground | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
