Product Model

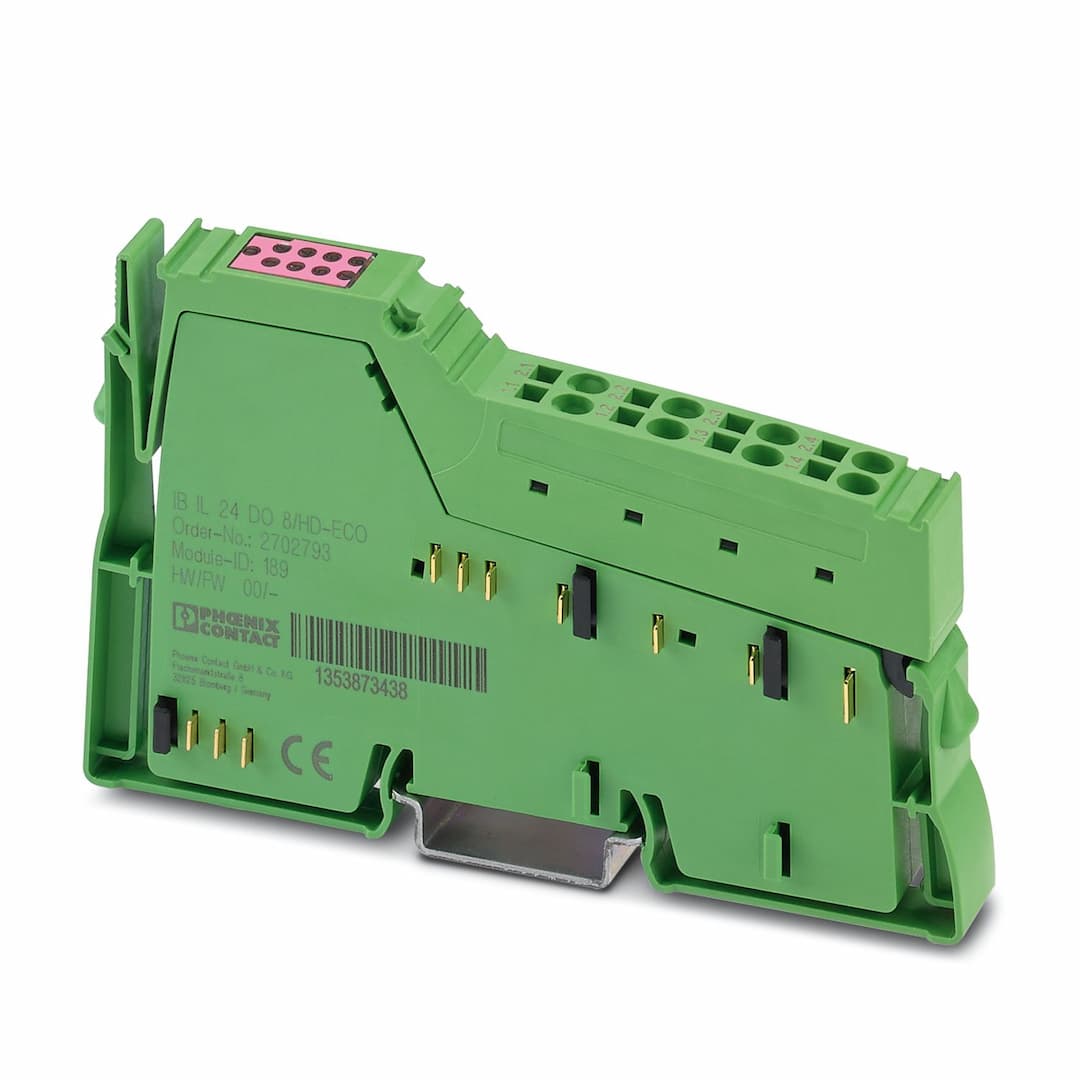

IB IL 24 DO 8/HD-ECO
Key Features
- 18 Digital Outputs: Control multiple devices with 8 independent digital outputs.
- 224V DC Operation: Reliable operation at 24V DC with a maximum current of 500mA per channel.
- 3500 kbps Transmission Speed: Efficient data transfer via the Inline local bus at 500 kbps.
- 4IP20 Protection: Durable and protected against solid particles and water spray (IP20).
- 5DIN Rail Mounting: Easy installation on DIN rail mounting systems for flexible use in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12.2 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | Number of interfaces | 2 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| ID code (dec.) | 189 | ID code (hex) | BD |
| Length code (hex) | 81 | Length code (dec) | 129 |
| Process data channel | 8 bit | Input address area | 0 Byte |
| Output address area | 1 Byte | Register length | 8 bit |
| Required parameter data | 3 Byte | Required configuration data | 4 Byte |
| Output name | Digital outputs | Connection method | Spring-cage connection |
| Connection technology | 1-conductor | Number of outputs | 8 |
| Protective circuit | Overload protection, short-circuit protection of outputs; electronic | Output voltage | 24 V DC (U |
| Limitation of the voltage induced on circuit interruption | -45.8 V ... -15 V | Maximum output current per channel | 500 mA |
| Maximum output current per module | 4 A | Nominal output voltage | 24 V DC |
| Load min. | 10 kΩ | Output voltage when switched off | max. 1 V |
| Output current when switched off | max. 300 µA | Nominal load, inductive | 12 VA (1.2 H, 48 Ω) |
| Nominal load, lamp | 12 W | Nominal load, ohmic | 12 W (48 Ω) |
| Maximum operating frequency with ohmic nominal load | max. 300 Hz (this switching frequency is limited by the number of bus devices, the structure of the bus, the software used and the control or computer system used) | Reverse voltage resistance to short pulses | Reverse voltage proof |
| Behavior with overload | Auto restart | Behavior with inductive overload | Output can be destroyed |
| Behavior at voltage switch-off | The output follows the power supply without delay | Overcurrent shut-down | min. 0.7 A |
| Product type | I/O component | Product family | Inline |
| Type | modular | Scope of delivery | including Inline connector |
| No. of channels | 8 | Operating mode | Process data mode with one byte
Process data mode with one byte |
| Diagnostics messages | Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module | Article revision | 03 |
| Maximum power dissipation for nominal condition | 0.85 W | Protective circuit | Short-circuit protection, overload protection in the segment circuit; Electronic, for each module |
| Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 30 mA |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 4 A | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | 0 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
