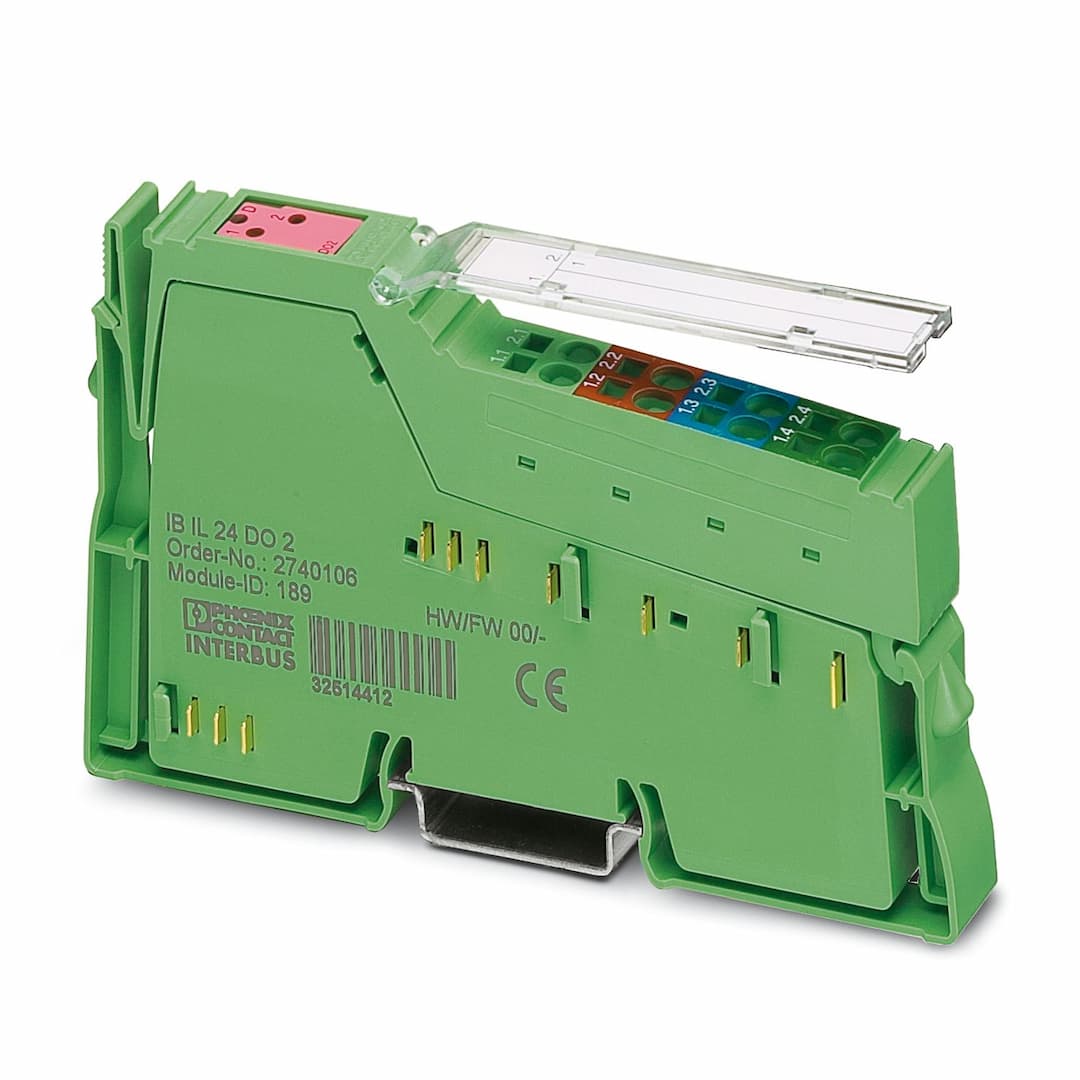

Product Model
IB IL 24 DO 2-2A-XC-PAC
Key Features
- 1High-Performance Output: 2 digital outputs with 24 V DC and 2 A each, ensuring reliable operation in industrial settings.
- 2Extreme Condition Protection: Designed to operate in extreme conditions, making it suitable for harsh environments.
- 3Multi-Conductor Technology: Supports 2-, 3-, and 4-conductor connection technologies for flexibility in setup.
- 4Diagnostic Indicators: Equipped with diagnostic and status indicators for easy monitoring of output status.
- 5Compact Design: Compact dimensions (12.2 mm x 119.5 mm x 71.5 mm) for easy integration into automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12.2 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Number of interfaces | 2 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | ID code (dec.) | 189 |
| ID code (hex) | BD | Length code (hex) | C2 |
| Length code (dec) | 194 | Process data channel | 2 bit |
| Input address area | 0 bit | Output address area | 2 bit |
| Register length | 2 bit | Required parameter data | 3 Byte |
| Required configuration data | 4 Byte | Output name | Digital outputs |
| Connection method | Spring-cage connection | Connection technology | 4-conductor |
| Number of outputs | 2 | Protective circuit | Overload protection, short-circuit protection of outputs |
| Output voltage | 24 V DC (U | Maximum output current per channel | 2 A |
| Maximum output current per module | 4 A | Nominal output voltage | 24 V DC |
| Nominal load, inductive | 48 VA (1,2 H, 12 Ω) | Nominal load, lamp | 48 W |
| Nominal load, ohmic | 48 W (12 Ω) | Maximum operating frequency with ohmic nominal load | max. 300 Hz (this switching frequency is limited by the number of bus devices, the structure of the bus, the software used and the control or computer system used) |
| Reverse voltage resistance to short pulses | Reverse voltage proof | Behavior with overload | Auto restart |
| Behavior with inductive overload | Output can be destroyed | Behavior at voltage switch-off | The output follows the power supply without delay |
| Product type | I/O component | Product family | Inline |
| Type | modular | Scope of delivery | including Inline connector and labeling field |
| No. of channels | 2 | Operating mode | Process data mode with 2 bits |
| Special properties | Extreme conditions version | Diagnostics messages | Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module |
| Article revision | 02 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
| Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 35 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 4 A |
| Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
