Product Model

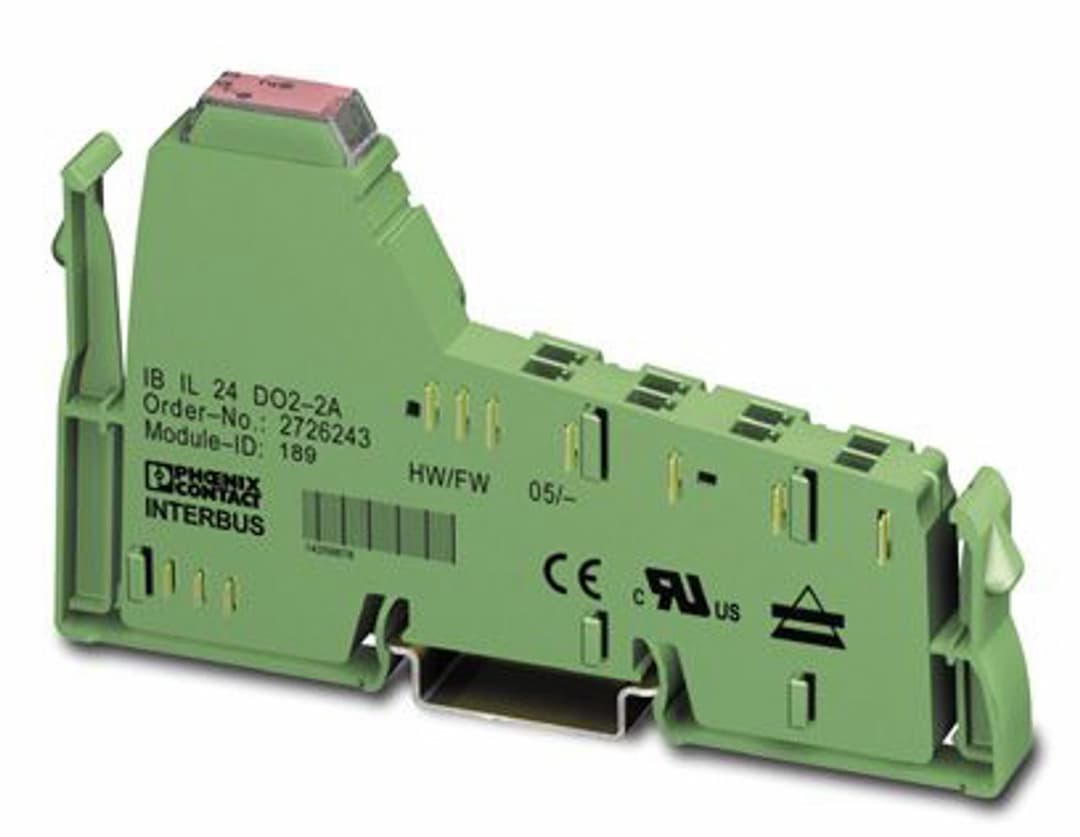

IB IL 24 DO 2-2A
Key Features
- 1The IB IL 24 DO 2-2A features two digital outputs for precise control in industrial settings.
- 2Operates at 24 V DC with a nominal current of 2 A per output, ensuring reliable performance.
- 3Equipped with protective circuits to safeguard against short circuits and overloads.
- 4Includes diagnostic and status indicators for easy monitoring of the terminal's operation.
- 5Supports 2-, 3-, and 4-conductor connection technologies for versatile actuator connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular | No. of channels | 2 |
| Diagnostics messages | Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module | ID code (dec.) | 189 |
| ID code (hex) | BD | Length code (hex) | C2 |
| Length code (dec) | 194 | Process data channel | 2 bit |
| Input address area | 0 Byte | Output address area | 2 bit |
| Register length | 2 bit | Required parameter data | 3 Byte |
| Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 35 mA |
| Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 4 A | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Output name | Digital outputs |
| Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
| Number of outputs | 2 | Protective circuit | Overload protection, short-circuit protection of outputs |
| Output voltage | 24 V DC (U | Maximum output current per channel | 2 A |
| Maximum output current per module | 4 A | Nominal output voltage | 24 V DC (voltage difference at I |
| Nominal load, inductive | 48 W | Nominal load, lamp | 48 W |
| Nominal load, ohmic | 48 VA | Behavior with overload | Auto restart |
| Behavior with inductive overload | Output can be destroyed | Behavior at voltage switch-off | The output follows the power supply without delay |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| Diagnostics | Short-circuit or overload of the digital outputs | Message | Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module |
| Width | 12.2 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Color | green | Ambient temperature (operation) | -25 °C ... 55 °C |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
