Product Model

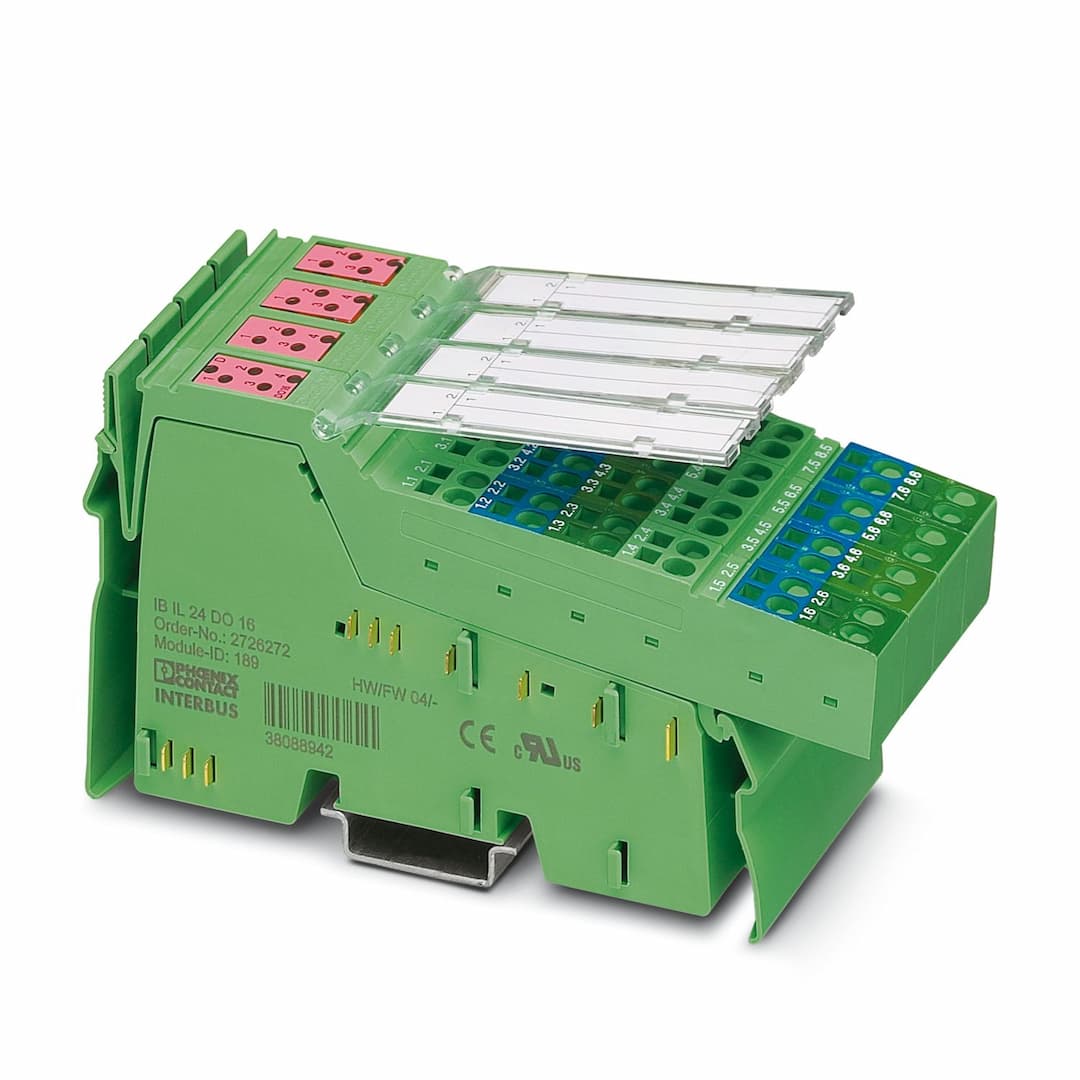

IB IL 24 DO 16-XC-PAC
Key Features
- 1Connect up to 16 digital actuators with 2 and 3-wire technology.
- 2Operate with a supply voltage range of 19.2 V DC to 30 V DC.
- 3Equipped with short-circuit and overload protection for reliable operation.
- 4Includes diagnostic and status indicators for easy monitoring.
- 5Constructed with a durable housing, suitable for ambient temperatures from -25°C to 55°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 140.5 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | Number of interfaces | 2 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| ID code (dec.) | 189 | ID code (hex) | BD |
| Length code (hex) | 01 | Length code (dec) | 01 |
| Process data channel | 16 bit | Input address area | 0 Byte |
| Output address area | 2 Byte | Register length | 16 bit |
| Required parameter data | 4 Byte | Required configuration data | 4 Byte |
| Output name | Digital outputs | Connection method | Spring-cage connection |
| Connection technology | 3-conductor | Number of outputs | 16 |
| Protective circuit | Overload protection, short-circuit protection of outputs; electronic | Output voltage | 24 V DC (U |
| Limitation of the voltage induced on circuit interruption | -46 V ... -15 V | Maximum inrush current | max. 1.5 A (for 20 ms) |
| Output current | max. 500 mA (per channel)
max. 8 A (Device) | Nominal output voltage | 24 V DC |
| Output voltage when switched off | max. 2 V | Output current when switched off | max. 300 µA |
| Nominal load, inductive | 12 VA (1.2 H, 50 Ω) | Nominal load, lamp | 12 W |
| Nominal load, ohmic | 12 W (48 Ω) | Maximum operating frequency with ohmic nominal load | max. 300 Hz (this switching frequency is limited by the number of bus devices, the structure of the bus, the software used and the control or computer system used) |
| Reverse voltage resistance to short pulses | Reverse voltage proof | Behavior with overload | Auto restart |
| Behavior with inductive overload | Output can be destroyed | Behavior at voltage switch-off | The output follows the power supply without delay |
| Overcurrent shut-down | min. 0.7 A | Output current with ground connection interrupt when switched off | max. 25 mA |
| Product type | I/O component | Product family | Inline |
| Type | modular | Scope of delivery | including Inline connectors and marking fields |
| No. of channels | 16 | Operating mode | Process data mode with one word |
| Special properties | Extreme conditions version | Diagnostics messages | Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module |
| Article revision | 02 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
| Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 90 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 8 A |
| Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C (Standard)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
