Product Model

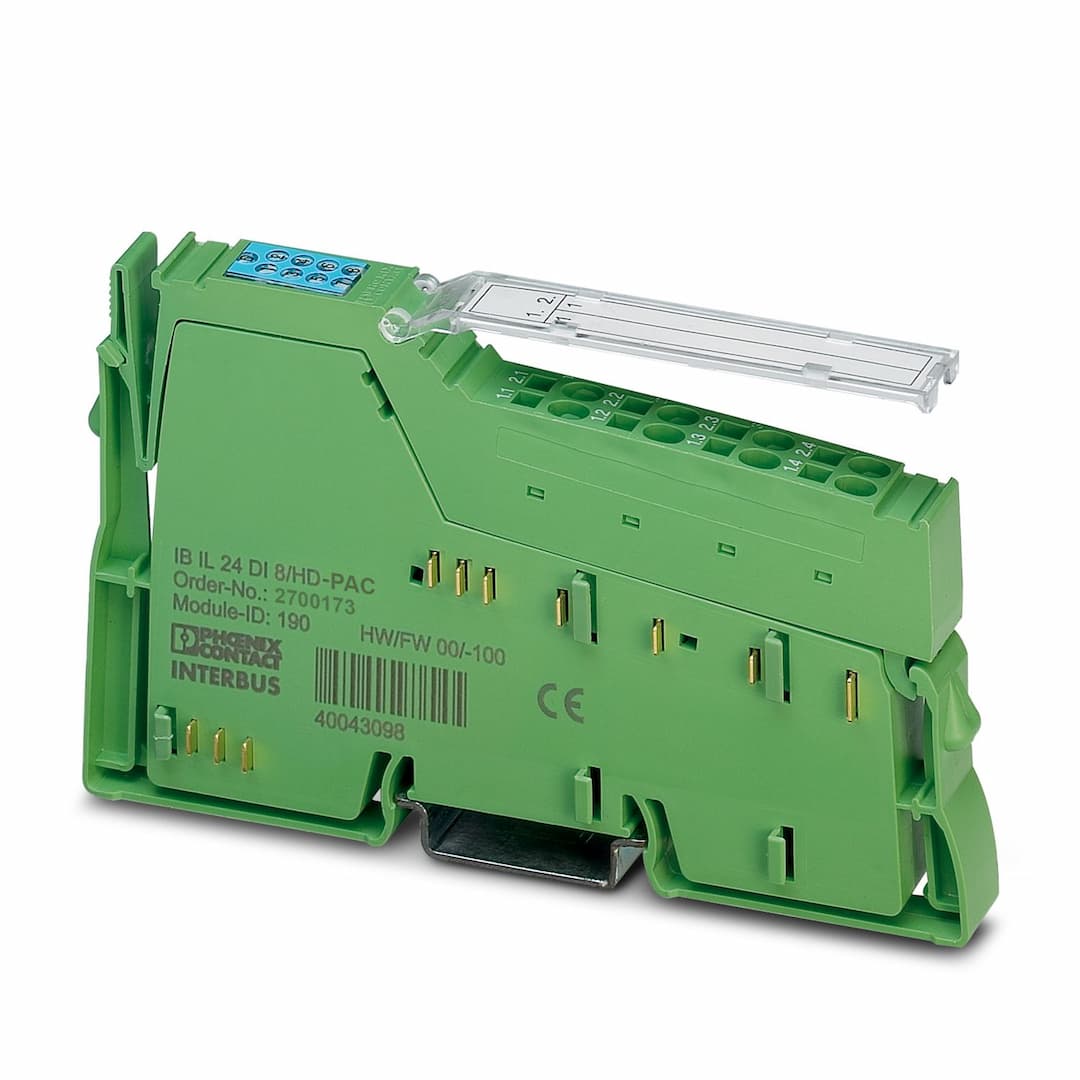

IB IL 24 DI8/HD-PAC
Key Features
- 1High-Reliability Digital Inputs: The IB IL 24 DI8/HD-PAC features 8 digital inputs with a nominal input voltage of 24 V DC.
- 2Fast Response Time: It offers a typical response time of 1 ms, ensuring quick signal processing.
- 3Diagnostic Indicators: Equipped with diagnostic and status indicators, this terminal helps in monitoring input statuses.
- 4Compact Design: The module is designed for inline use, measuring 119.8 mm in height, 71.5 mm in depth, and 12.2 mm in width.
- 5Versatile Connectivity: Supports single-wire technology for sensor connections and has a transmission speed of 500 kbps on the local bus.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12.2 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | CCCex note | Use in potentially explosive areas is not permitted in China. |
| Number of interfaces | 2 | Connection method | Inline data jumper |
| Transmission speed | 500 kbps | ID code (dec.) | 190 |
| ID code (hex) | BE | Length code (hex) | 81 |
| Length code (dec) | 129 | Process data channel | 8 bit |
| Input address area | 1 Byte | Output address area | 0 Byte |
| Register length | 8 bit | Required parameter data | 1 Byte |
| Required configuration data | 4 Byte | Input name | Digital inputs |
| Description of the input | EN 61131-2 types 1 and 3 | Number of inputs | 8 |
| Connection method | Spring-cage connection | Connection technology | 1-conductor |
| Input voltage | 24 V DC | Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 11 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
| Nominal input current at U | typ. 2.4 mA | Typical input current per channel | 2.4 mA |
| Typical response time | 1 ms | Delay at signal change from 0 to 1 | 1 ms |
| Delay at signal change from 1 to 0 | 1 ms | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connector and labeling field | No. of channels | 8 |
| Operating mode | Process data mode with one byte | Article revision | 15 |
| Maximum power dissipation for nominal condition | 0.8 W | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 30 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 5.5 mA |
| Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
