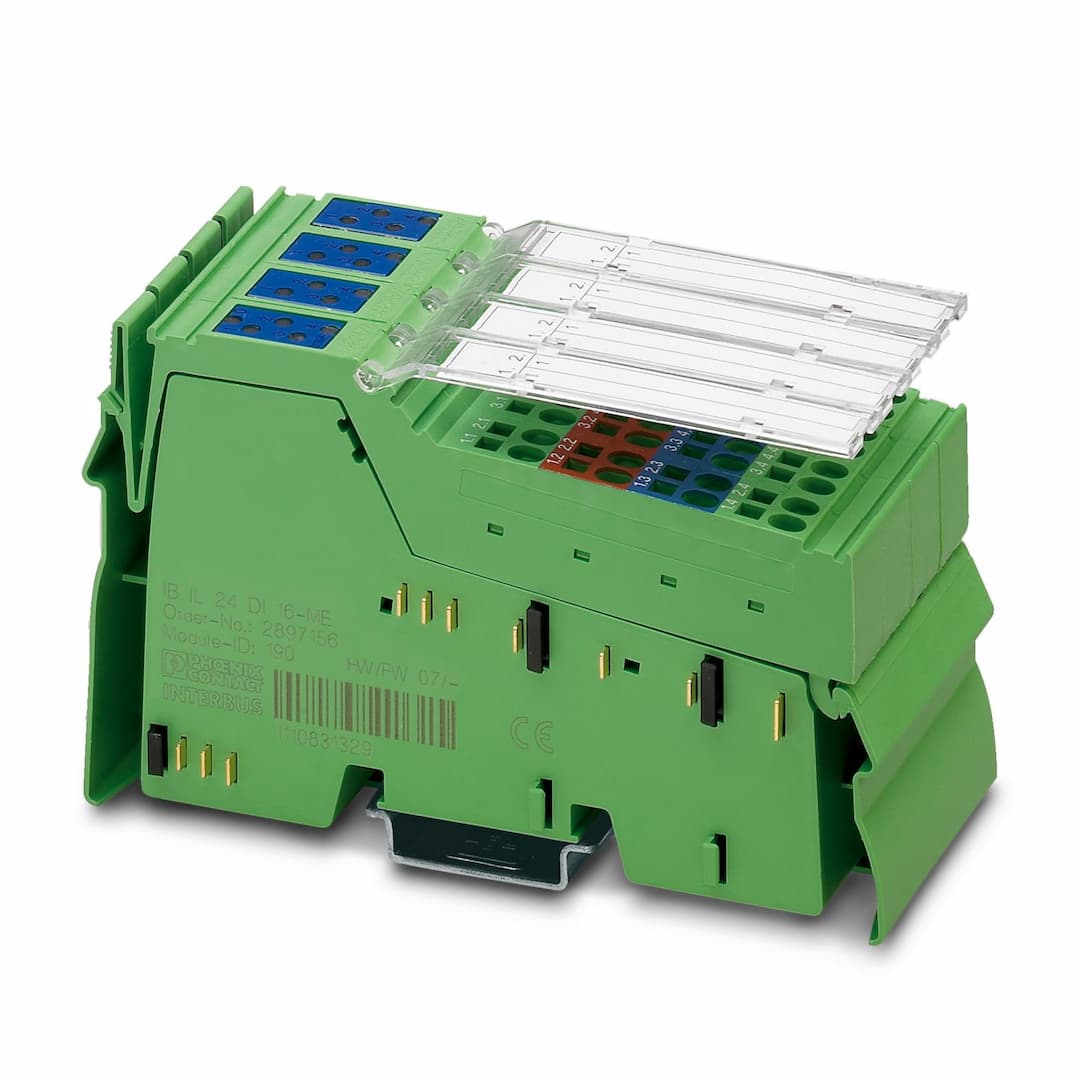

Product Model
IB IL 24 DI 16-ME
Key Features
- 116 Digital Inputs: Connect up to 16 digital sensors for comprehensive signal acquisition.
- 22 and 3-Wire Sensor Connections: Easily connect sensors in both 2 and 3-wire technologies.
- 3Diagnostic and Status Indicators: Monitor terminal status with built-in diagnostic and status indicators.
- 4High Reliability: Designed for use within Inline stations, ensuring reliable operation in various conditions.
- 5Compact Design: Measures 48.8 mm x 120 mm x 71.5 mm, ideal for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Note on application | Only for industrial use | Number of interfaces | 2 |
| Connection method | Inline data jumper | Transmission speed | 500 kbps |
| ID code (dec.) | 190 | ID code (hex) | BE |
| Length code (hex) | 01 | Length code (dec) | 01 |
| Process data channel | 16 bit | Input address area | 2 Byte |
| Output address area | 0 Byte | Register length | 16 bit |
| Required parameter data | 1 Byte | Required configuration data | 4 Byte |
| Input name | Digital inputs | Description of the input | EN 61131-2 type 1 |
| Number of inputs | 16 | Cable length | max. 30 m (to the sensor) |
| Connection method | Spring-cage connection | Connection technology | 3-conductor |
| Input voltage | 24 V DC | Input voltage range "0" signal | -3 V DC ... 5 V |
| Input voltage range "1" signal | 15 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
| Nominal input current at U | min. 3 mA (at nominal voltage) | Sensor current per channel | max. 250 mA |
| Typical response time | < 1 ms | Delay at signal change from 0 to 1 | 1 ms |
| Delay at signal change from 1 to 0 | 1 ms | Product type | I/O component |
| Product family | Inline | Type | modular |
| Scope of delivery | including Inline connectors and marking fields | No. of channels | 16 |
| Operating mode | Process data mode with one word | Article revision | 03 |
| Maximum power dissipation for nominal condition | 1.6 W | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 60 mA | Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 4 A
min. 0 A (No-load) |
| Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
| Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
