Product Model

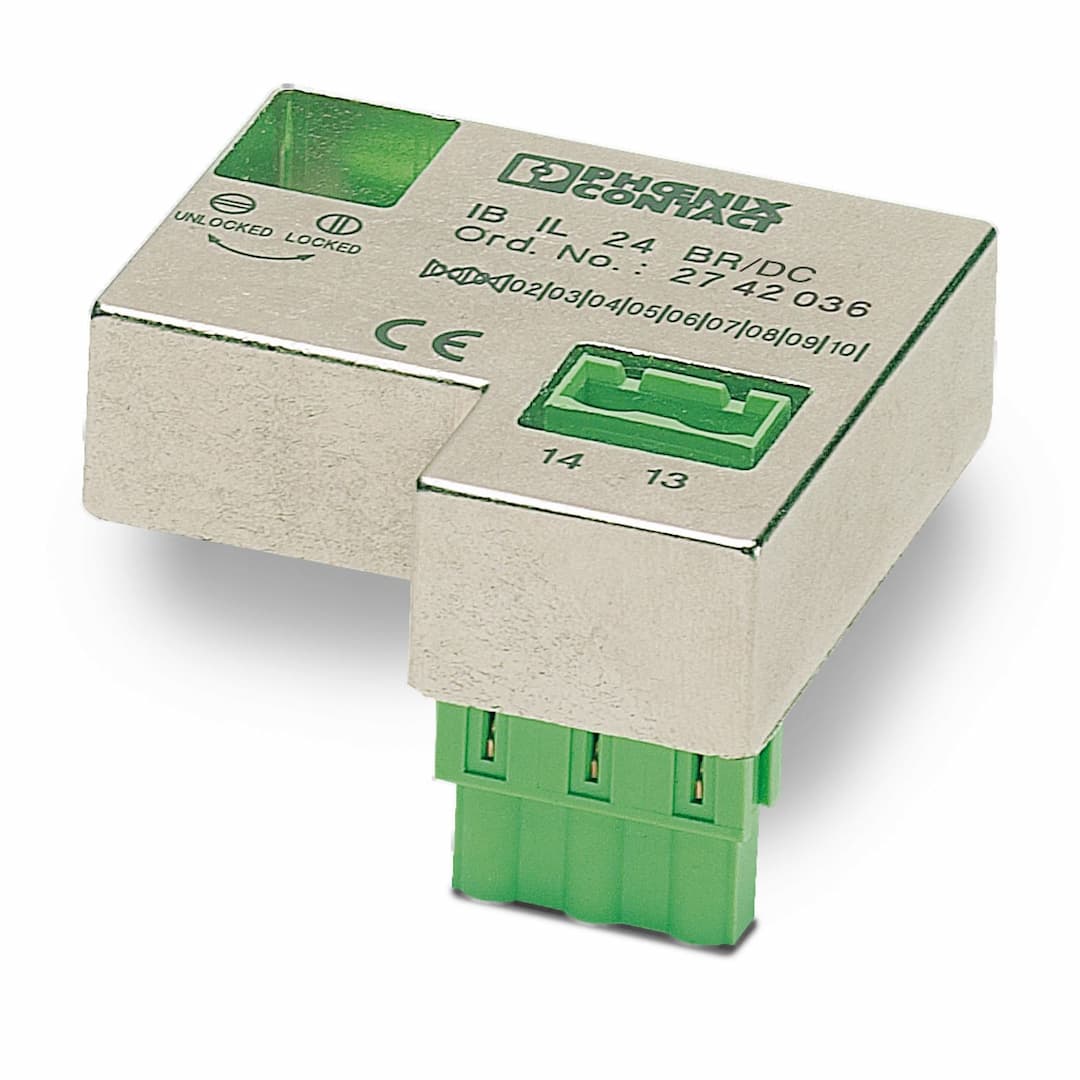

IB IL 24 BR/DC
Key Features
- 1Equipped with COMBICON connectors for secure and reliable connections.
- 2Built to withstand demanding industrial environments with a maximum conductor cross section of 2.5 mm².
- 3Simple connection method using COMBICON connectors for quick setup.
- 4Includes protective circuitry to prevent damage from polarity reversal.
- 5Suitable for brake control in various industrial settings, ensuring safe and efficient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Extension module |
| Product family | Inline | Type | Inline |
| No. of channels | 1 | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Switch-on delay | < 2 ms | Test section | 24 V supply (U
24 V supply (U
Brake output/protective earth ground (PE) 500 V AC 50 Hz 1 min |
| Connection name | Connection of the brake to the brake module | Connection method | COMBICON connectors |
| Cross section | 2.5 mm² (maximum conductor cross section) | Protective circuit | Polarity reversal protection, surge voltage suppression > 36 V |
| Contact connection type | Polarized semiconductor switch | Connection voltage | 24 V DC |
| Residual voltage | 0.4 V DC (maximum) | Connection name | Connection to the power-level terminal block |
| Connection method | 3-pos. COMBICON | Control voltage | 24 V DC (= Us from the power-level terminal block) |
| Control current | 17 mA | Active current limitation | Through resistor |
| Residual voltage | 0.4 V DC (maximum) | Connection method | COMBICON connectors |
| Width | 55 mm | Height | 57 mm |
| Depth | 16 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C (permitted) | Ambient temperature (storage/transport) | -25 °C ... 85 °C (permitted) |
| Permissible humidity (operation) | 75 % ... 85 % (75% average, 85% seldom) | Permissible humidity (storage/transport) | 75 % ... 85 % (75% average, 85% seldom) |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Mounting type | In the host system |
Specifications may be subject to change without notice
