Product Model

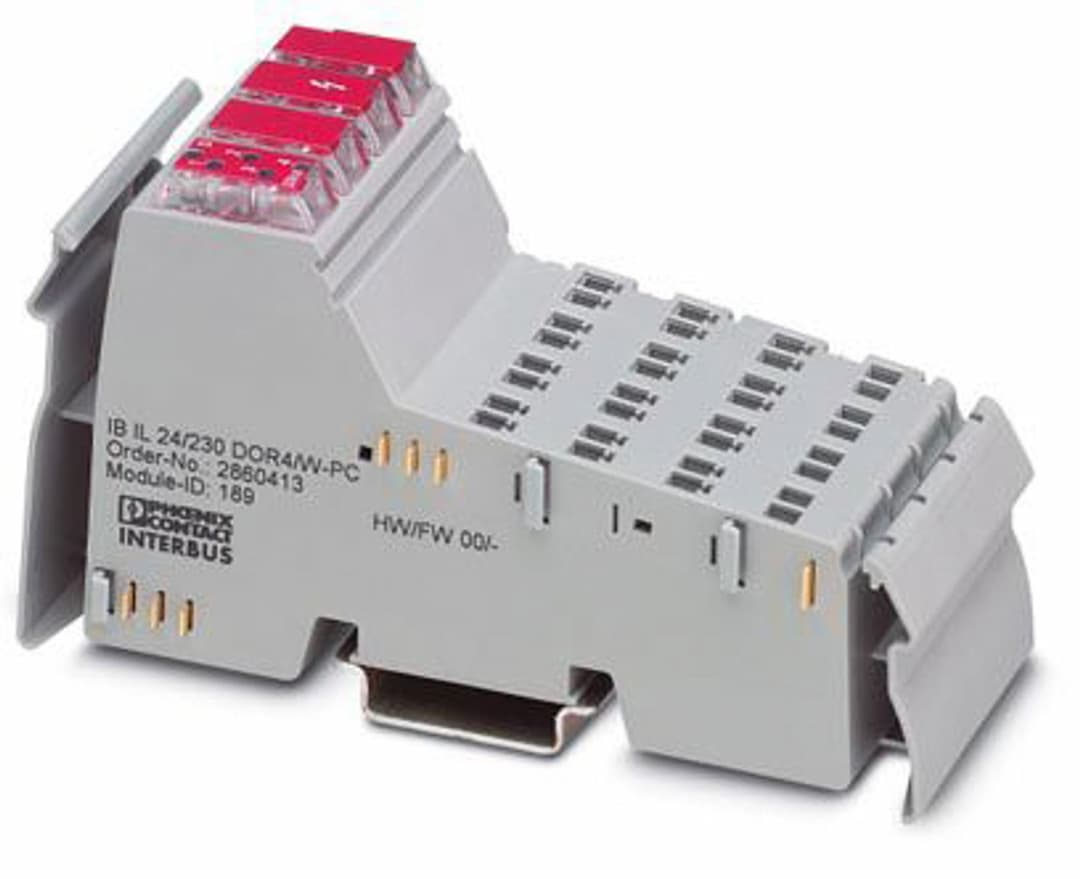

IB IL 24/230 DOR4/W-PC
Key Features
- 1Efficiently manage multiple actuators with four floating relay outputs.
- 2Ensures safe operation according to EN 50178, reducing risk in PELV and AC areas.
- 3Easily monitor terminal status with built-in diagnostic indicators.
- 4Easy integration into existing systems with a compact, modular design.
- 5Built to last with a maximum switching voltage of 250 V DC and a maximum switching current of 3 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular | No. of channels | 4 |
| ID code (dec.) | 189 | ID code (hex) | BD |
| Length code (hex) | 41 | Length code (dec) | 65 |
| Process data channel | 4 bit | Input address area | 0 Byte |
| Output address area | 4 bit | Register length | 4 bit |
| Required parameter data | 3 Byte | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 187 mA | Test voltage: Relay contact / Bus logics | 4 kV, 50 Hz, 1 min |
| Test voltage: Contact/contact | 1 kV, 50 Hz, 1 min | Test voltage: Contact / PE | 1 kV, 50 Hz, 1 min |
| Output name | Relay output | Connection method | Spring-cage connection |
| Connection technology | floating changeover relay contact | Number of outputs | 4 |
| Protective circuit | Overload protection, short-circuit protection of outputs | Maximum output current per channel | 3 A |
| Output voltage range | 5 V AC ... 253 V AC | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Connection method | Inline data jumper |
| Width | 48.8 mm | Height | 119.8 mm |
| Depth | 71.5 mm | Note on dimensions | Housing dimensions |
| Color | gray | Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) | Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) |
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
