Product Model

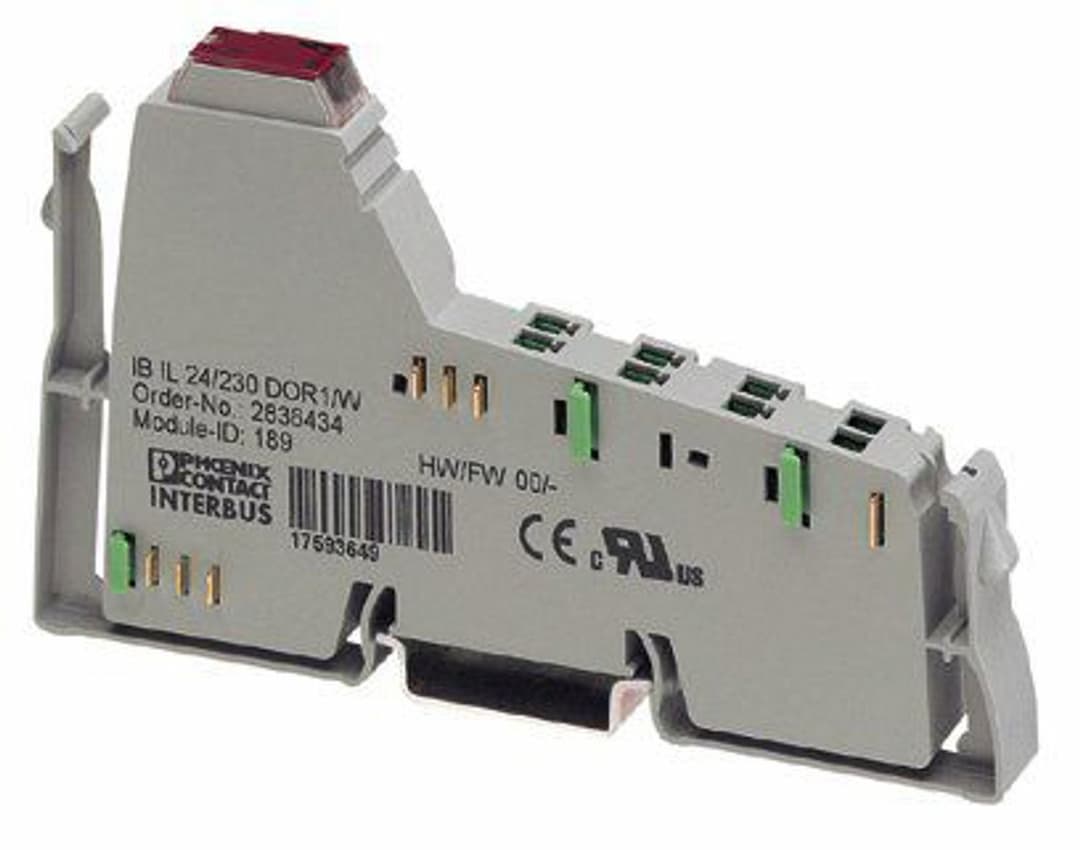

IB IL 24/230 DOR1/W
Key Features
- 1Safe Isolation: The terminal features a floating SPDT relay contact for safe isolation.
- 2Versatile Voltage Support: Compatible with both 24 V DC and 230 V AC.
- 3High Current Handling: Handles up to 3 A of nominal current at the output.
- 4Durable Construction: Built with a robust housing that withstands ambient temperatures from -25°C to 55°C.
- 5Reliable Connectivity: Includes an inline connector and labeling field for easy installation and identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular | No. of channels | 1 |
| ID code (dec.) | 189 | ID code (hex) | BD |
| Length code (hex) | C2 | Length code (dec) | 194 |
| Process data channel | 2 bit | Input address area | 0 Byte |
| Output address area | 2 bit (Only bit0 is occupied) | Register length | 2 bit |
| Required parameter data | 3 Byte | Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 60 mA | Test voltage: Relay contact / Bus logics | 4 kV, 50 Hz, 1 min |
| Test voltage: Contact/contact | 1 kV, 50 Hz, 1 min | Test voltage: Contact / PE | 1 kV, 50 Hz, 1 min |
| Output name | Relay output | Connection method | Spring-cage connection |
| Connection technology | floating changeover relay contact | Number of outputs | 1 |
| Protective circuit | Overload protection, short-circuit protection of outputs | Maximum output current per channel | 3 A |
| Maximum output current per module | 3 A | Output voltage range | 5 V AC ... 253 V AC |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Connection method | Inline data jumper | Width | 12.2 mm |
| Height | 119.8 mm | Depth | 71.5 mm |
| Note on dimensions | Housing dimensions | Color | gray |
| Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
| Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
