Product Model

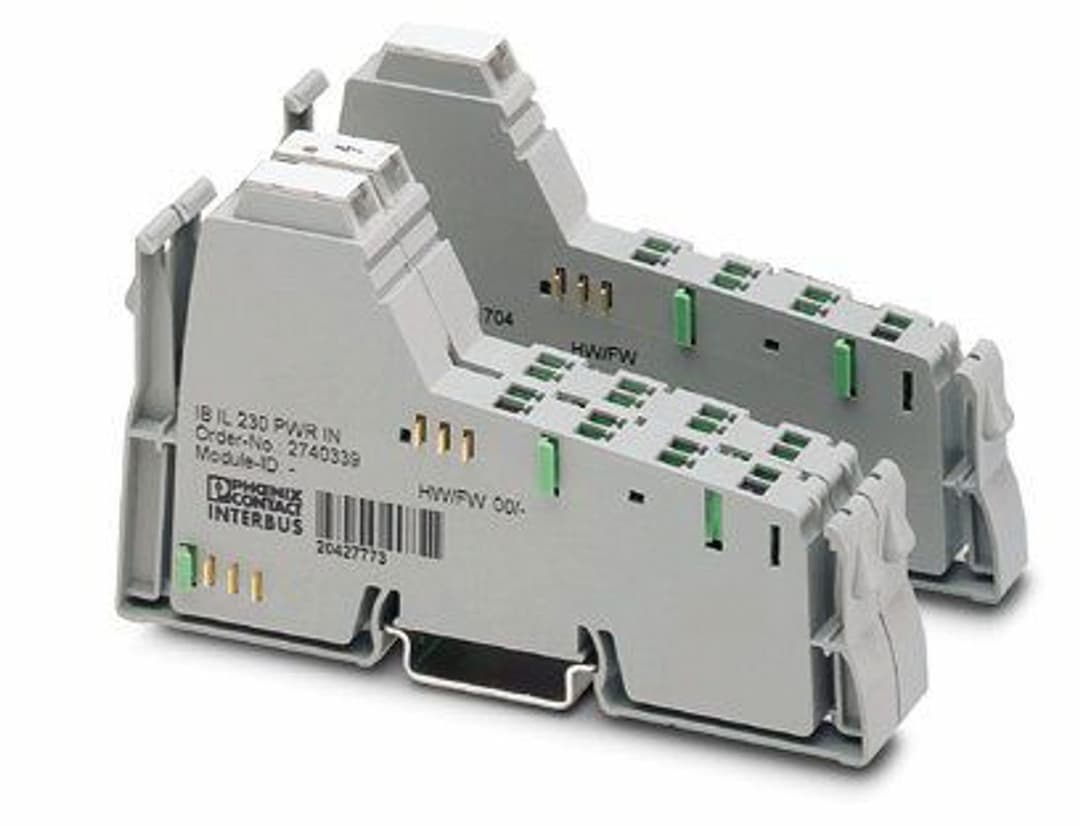

IB IL 230 PWR IN
Key Features
- 1Designed to supply 230 V AC, ensuring reliable power distribution.
- 2Equipped with diagnostic and status indicators for real-time monitoring.
- 3Features surge protection to safeguard against voltage spikes.
- 4Measuring 36.6 mm in width, 119.8 mm in height, and 71.5 mm in depth.
- 5Includes a connector and labeling field for easy installation and organization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | modular
Inline | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
| ID code (dec.) | none | ID code (hex) | none |
| Register length | 0 bit | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics) / I/O area 120 V AC 2500 V AC 50 Hz 1 min
Routine test 1200 V AC 50 Hz 1 min
I/O area 120 V AC/PE 500 V AC 50 Hz 1 min
Output / Phase 500 V AC 50 Hz 1 min |
| I/O voltage | 230 V AC | I/O voltage range | 207 V AC ... 253 V AC (including all tolerances, including ripple) |
| Residual ripple | ± 23 V | Max. current consumption | 8 A |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Connection method | Inline data jumper | Width | 36.6 mm |
| Height | 119.8 mm | Depth | 71.5 mm |
| Color | gray | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
