Product Model

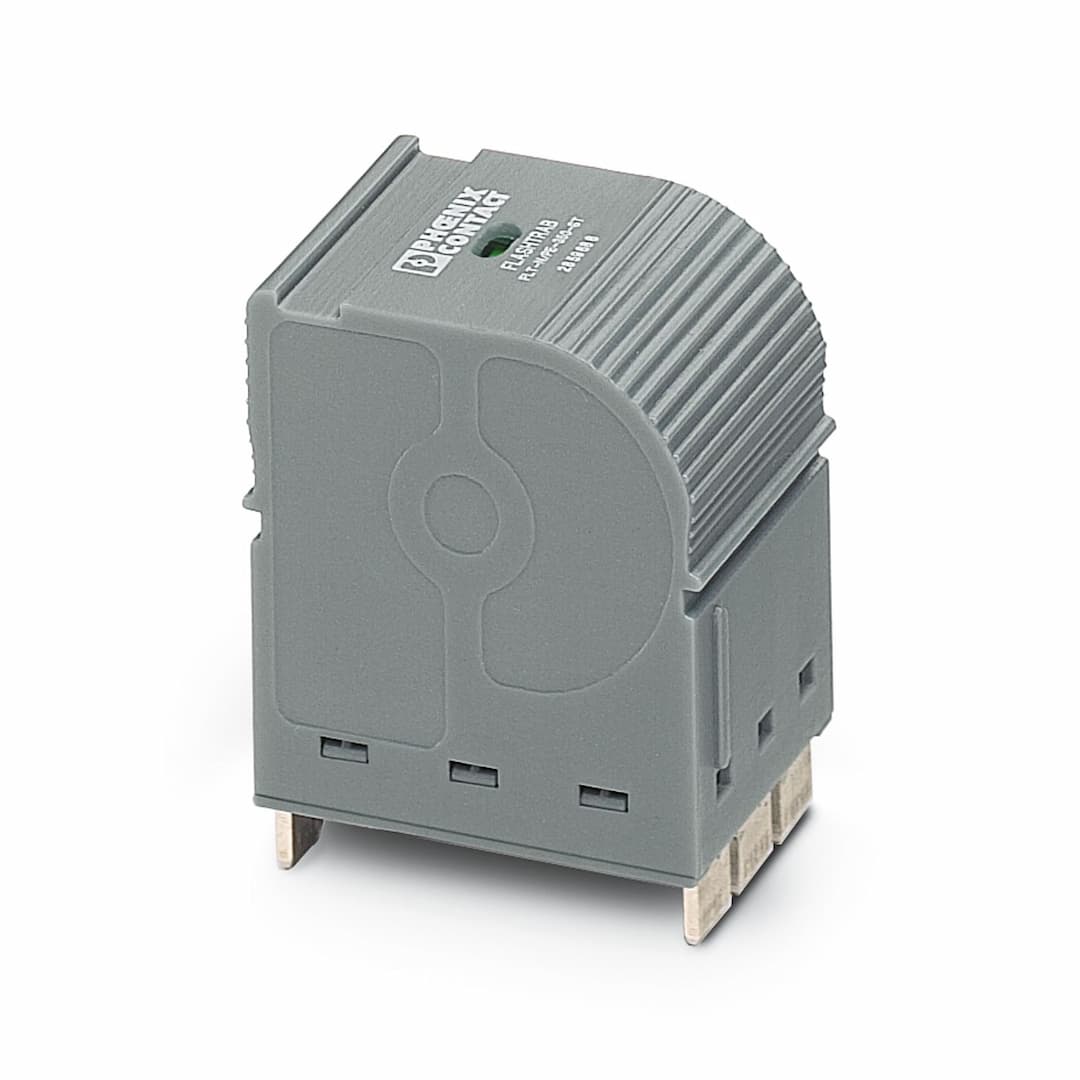

FLT-CP-PLUS-350-ST
Key Features
- 125 kA nominal discharge current for effective surge protection.
- 2Built to withstand 25g shock and 5g vibration, ensuring durability in various environments.
- 3Meets IP20 standards when all terminal points are used, providing reliable protection against solid objects.
- 4Operates between -40°C to 80°C ambient temperature and up to 2000 meters altitude.
- 5Plug-in/screw connection via COMBICON for quick and secure installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Replacement plug | IEC test classification | I / II
T1 / T2 |
| EN type | T1 / T2 | IEC power supply system | TN
TT |
| Type | Male | Number of positions | 1 |
| Surge protection fault message | optical | Overvoltage category | III |
| Pollution degree | 2 | Nominal frequency f | 50 Hz (60 Hz) |
| Connection method | pluggable | Width | 35.45 mm |
| Height | 46.6 mm | Depth | 56.4 mm |
| Horizontal pitch | 2 Div. | Color | blue grey (RAL 7031) |
| Flammability rating according to UL 94 | V-0 | CTI value of material | 600 |
| Insulating material | PA 6.6/PBT | Material group | I |
| Housing material | PBT | Mode of protection | L-N
L-PEN |
| Direction of action | L-N / L-PEN | Nominal voltage U | 240 V AC (TN)
240 V AC (TT) |
| Nominal frequency f | 50 Hz (60 Hz) | Maximum continuous voltage U | 350 V AC |
| Nominal discharge current I | 25 kA | Maximum discharge current I | 50 kA |
| Impulse discharge current (10/350) µs, charge | 12.5 As | Impulse discharge current (10/350) µs, specific energy | 160 kJ/Ω |
| Impulse discharge current (10/350) µs, peak value l | 25 kA | Follow current interrupt rating I | 50 kA |
| Short-circuit current rating I | 50 kA | Voltage protection level U | ≤ 1.5 kV |
| Residual voltage U | ≤ 1.5 kV (at I | Front of wave sparkover voltage at 6 kV (1.2/50) µs | ≤ 1.5 kV |
| TOV behavior at U | 415 V AC (5 s / withstand mode)
457 V AC (120 min / withstand mode) | Response time t | ≤ 100 ns |
| Max. backup fuse with branch wiring | 315 A (gG) | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) | Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) | Vibration (operation) | 5g (5 - 500 Hz/2.5 h/X, Y, Z) |
| Maximum continuous operating voltage MCOV (L-N) | 264 V AC | Nominal discharge current I | 20 kA |
| Mode of protection | L-N | Nominal voltage | 240 V AC |
| Power distribution system | Split phase | Nominal frequency | 50/60 Hz |
| Measured limiting voltage MLV (L-N) | 1350 V | Follow current (L-N) | 10 kA (264 V AC) |
| SPD Type | 4CA | Standards/regulations | EN 60664-1 / IEC 60664-1 / IEC 61643-11 |
| Standards/specifications | IEC 61643-11 | Note | 2011 |
| Standards/specifications | EN 61643-11 | Note | 2012 |
| Mounting type | on base element |
Specifications may be subject to change without notice
